MINI EOLO 28 3 E
Wall-hung compact combi traditional boiler, sealed chamber fan assisted
The customer service provides
prompt answers within 24 hours.
prompt answers within 24 hours.
Technical data MINI EOLO 28 3 E |
|
|---|---|
| Code | 3.020856 |
| Heat output kW | 28,0 |
| Dimensions (HxWxD) mm | 751 x 440 x 340 |
| Type | combi |
| Modulating heat output | 40 - 100% |
| D.H.W. production (∆t 30°C) l/min | 13,4 |
Technical data MINI EOLO 28 3 E |
|
|---|---|
| Code | 3.020856 |
| Heat output kW | 28,0 |
| Dimensions (HxWxD) mm | 751 x 440 x 340 |
| Type | combi |
| Modulating heat output | 40 - 100% |
| D.H.W. production (∆t 30°C) l/min | 13,4 |
Gallery
Wall-hung combi traditional sealed chamber boiler.
Featuring a sober and linear design and compact dimensions, MINI EOLO 28 3 E is the ideal choice that can be installed in all living spaces.
The visible keys and the backlit LCD display guarantee an intuitive and user-friendly boiler parameter setting together with the possibility of checking all operating parameters. The microprocessor based electronics allows the coupling with optional kits for the climatic thermoregulation.
MINI EOLO 28 3 E is pre-arranged for receiving water pre-heated by a solar storage tank. By choosing this function among the operating parameters, the burner will be ignited only if it is necessary to integrate the heating of the DHW from the solar storage tank.
Certified to be installed indoor as well as outdoor in partially sheltered places thanks to the IPX5D electric protection, the boiler is supplied with a -5°C anti-freeze kit as standard.
This product is not for sales in EU market.
Electrical box cover plate kit for SMARTECH PLUS Cod.3.031013
It allows the covering of the wall hole for electrical boxes type 503.
Expansion kit for SMARTECH PLUS Cod.3.030911
For controlling the temperature in several areas of the house (example living and sleeping areas).
The kit includes: additional SMART thermostat and wi-fi relay (in this case the wi-fi network is required).

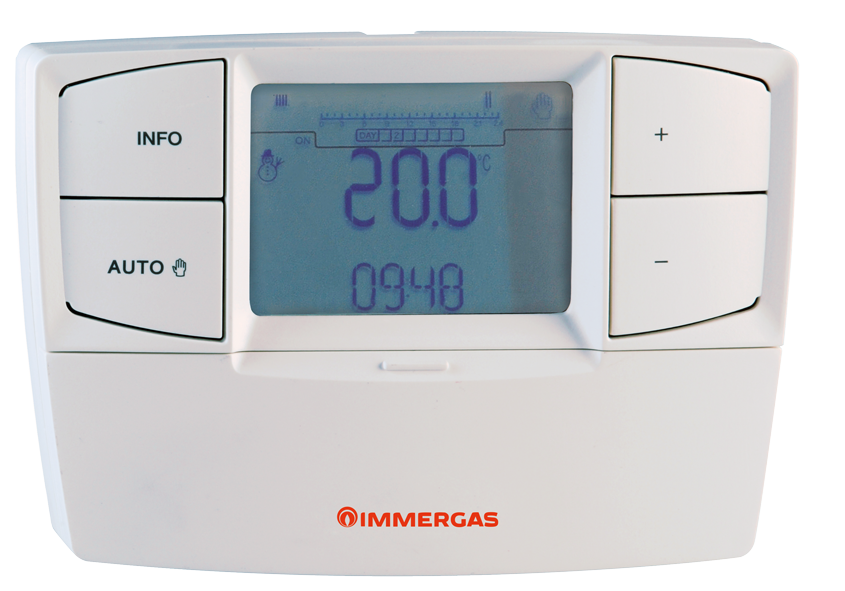

SMARTECH PLUS - SMART remote control Cod.3.030909
Hi-tech smart wireless remote control with Bluetooth technology
The kit includes:
• Chronothermostat (to be placed where you want to adjust the temperature)
• Gateway (to be connected to the boiler or to the internet network at home - power supply 230 V)
• Wall fixing base (with leveling bubble integrated)
• Table stand
• 2 power batteries (as standard)
• Functioning room temperature: 0 - +40 °C
• Protection rating IP 20
Temperature control class: V* or VI
Contribution to seasonal space heating energy efficiency 3%* or 4%
*default settings.
Wall-hung combi traditional sealed chamber boiler.
Featuring a sober and linear design and compact dimensions, MINI EOLO 28 3 E is the ideal choice that can be installed in all living spaces.
The visible keys and the backlit LCD display guarantee an intuitive and user-friendly boiler parameter setting together with the possibility of checking all operating parameters. The microprocessor based electronics allows the coupling with optional kits for the climatic thermoregulation.
MINI EOLO 28 3 E is pre-arranged for receiving water pre-heated by a solar storage tank. By choosing this function among the operating parameters, the burner will be ignited only if it is necessary to integrate the heating of the DHW from the solar storage tank.
Certified to be installed indoor as well as outdoor in partially sheltered places thanks to the IPX5D electric protection, the boiler is supplied with a -5°C anti-freeze kit as standard.
This product is not for sales in EU market.
Electrical box cover plate kit for SMARTECH PLUS Cod.3.031013
It allows the covering of the wall hole for electrical boxes type 503.
Expansion kit for SMARTECH PLUS Cod.3.030911
For controlling the temperature in several areas of the house (example living and sleeping areas).
The kit includes: additional SMART thermostat and wi-fi relay (in this case the wi-fi network is required).
SMARTECH PLUS - SMART remote control Cod.3.030909
Hi-tech smart wireless remote control with Bluetooth technology
The kit includes:
• Chronothermostat (to be placed where you want to adjust the temperature)
• Gateway (to be connected to the boiler or to the internet network at home - power supply 230 V)
• Wall fixing base (with leveling bubble integrated)
• Table stand
• 2 power batteries (as standard)
• Functioning room temperature: 0 - +40 °C
• Protection rating IP 20
Temperature control class: V* or VI
Contribution to seasonal space heating energy efficiency 3%* or 4%
*default settings.
