MAIOR EOLO 32
Wall-hung combi traditional boiler
The customer service provides
prompt answers within 24 hours.
prompt answers within 24 hours.
Technical data MAIOR EOLO 32 |
|
|---|---|
| Code | 3.020927 |
| Heat output kW | 32,0 |
| Dimensions (HxWxD) mm | 751 x 440 x 340 |
| Type | combi |
| D.H.W. production (∆t 30°C) l/min | 15,3 |
Technical data MAIOR EOLO 32 |
|
|---|---|
| Code | 3.020927 |
| Heat output kW | 32,0 |
| Dimensions (HxWxD) mm | 751 x 440 x 340 |
| Type | combi |
| D.H.W. production (∆t 30°C) l/min | 15,3 |
Gallery
Wall-hung combi traditional sealed chamber boiler.

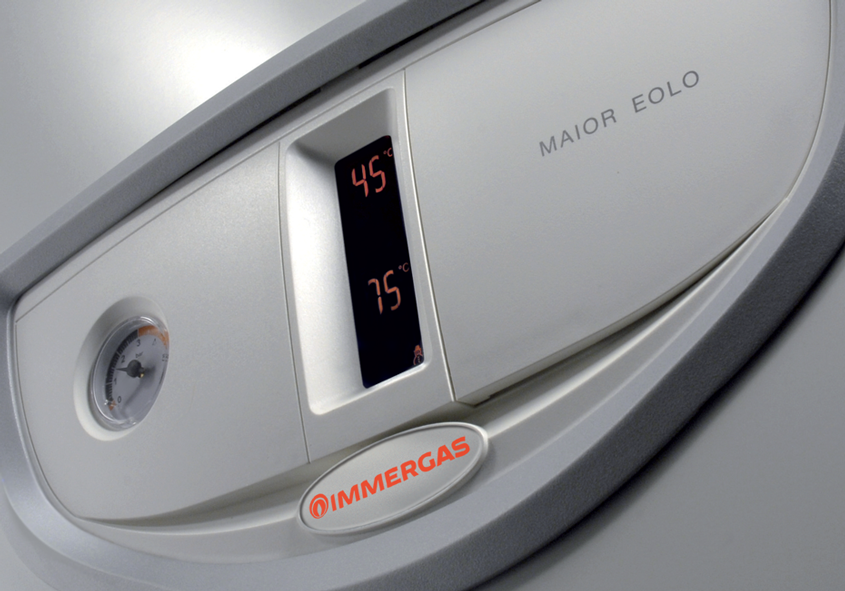

Sober design and reduced dimensions easily allow placing MAIOR EOLO 32 in any room of your house. A small door covers knobs and buttons only, leaving the backlit liquid crystal display always visible, supplying information about the main functioning parameters and eventual error codes.
The advanced electronics allows the coupling of the boiler to the DIM (Multi system distribution manifolds ) and to the new modulating kits for the climatic thermoregulation, through which the boiler can be remotely controlled.
MAIOR EOLO 32 can be connected to thermal solar systems.
Certified to be installed indoor as well as outdoor in partially sheltered places thanks to the IPX5D electric protection, the boiler is supplied with a -5°C anti-freeze kit as standard.
This product is not for sales in EU market.

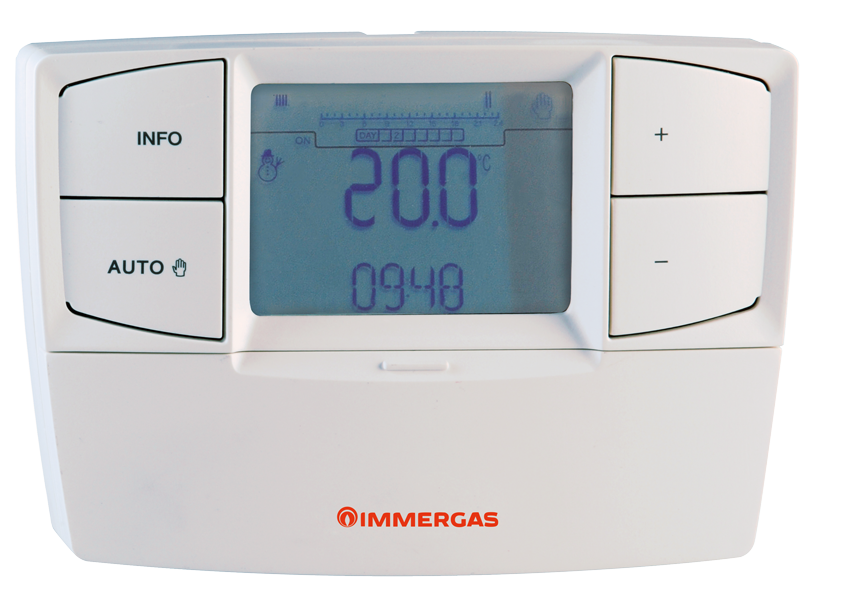

CARV2 (weekly chronothermostat and modulating remote control) Cod.3.021395
Class of device V* or VI
Contribution to the environmental heating seasonal energy efficiency 3%* or 4%
*as standard
Electrical box cover plate kit for SMARTECH PLUS Cod.3.031013
It allows the covering of the wall hole for electrical boxes type 503.
Expansion kit for SMARTECH PLUS Cod.3.030911
For controlling the temperature in several areas of the house (example living and sleeping areas).
The kit includes: additional SMART thermostat and wi-fi relay (in this case the wi-fi network is required).
SMARTECH PLUS - SMART remote control Cod.3.030909
Hi-tech smart wireless remote control with Bluetooth technology
The kit includes:
• Chronothermostat (to be placed where you want to adjust the temperature)
• Gateway (to be connected to the boiler or to the internet network at home - power supply 230 V)
• Wall fixing base (with leveling bubble integrated)
• Table stand
• 2 power batteries (as standard)
• Functioning room temperature: 0 - +40 °C
• Protection rating IP 20
Temperature control class: V* or VI
Contribution to seasonal space heating energy efficiency 3%* or 4%
*default settings.
Concentric horizontal complete kit Ø 60/100 Cod.3.017736
Flue components for traditional boilers and water heaters.
Wall-hung combi traditional sealed chamber boiler.
Sober design and reduced dimensions easily allow placing MAIOR EOLO 32 in any room of your house. A small door covers knobs and buttons only, leaving the backlit liquid crystal display always visible, supplying information about the main functioning parameters and eventual error codes.
The advanced electronics allows the coupling of the boiler to the DIM (Multi system distribution manifolds ) and to the new modulating kits for the climatic thermoregulation, through which the boiler can be remotely controlled.
MAIOR EOLO 32 can be connected to thermal solar systems.
Certified to be installed indoor as well as outdoor in partially sheltered places thanks to the IPX5D electric protection, the boiler is supplied with a -5°C anti-freeze kit as standard.
This product is not for sales in EU market.
CARV2 (weekly chronothermostat and modulating remote control) Cod.3.021395
Class of device V* or VI
Contribution to the environmental heating seasonal energy efficiency 3%* or 4%
*as standard
Electrical box cover plate kit for SMARTECH PLUS Cod.3.031013
It allows the covering of the wall hole for electrical boxes type 503.
Expansion kit for SMARTECH PLUS Cod.3.030911
For controlling the temperature in several areas of the house (example living and sleeping areas).
The kit includes: additional SMART thermostat and wi-fi relay (in this case the wi-fi network is required).
SMARTECH PLUS - SMART remote control Cod.3.030909
Hi-tech smart wireless remote control with Bluetooth technology
The kit includes:
• Chronothermostat (to be placed where you want to adjust the temperature)
• Gateway (to be connected to the boiler or to the internet network at home - power supply 230 V)
• Wall fixing base (with leveling bubble integrated)
• Table stand
• 2 power batteries (as standard)
• Functioning room temperature: 0 - +40 °C
• Protection rating IP 20
Temperature control class: V* or VI
Contribution to seasonal space heating energy efficiency 3%* or 4%
*default settings.
Concentric horizontal complete kit Ø 60/100 Cod.3.017736
Flue components for traditional boilers and water heaters.
