HERCULES CONDENSING 32 3 ErP
Condensing Boilers
Floor-standing condensing boiler with built-in stainless steel storage tank of 120 litres
Technical data HERCULES CONDENSING 32 3 ErP | |
---|---|
Code | 3.025493 |
C.H. Energy class | A |
D.H.W. Energy class - Stated load profile | A / XL |
Heat output kW | 32,0 |
Dimensions (HxWxD) mm | 1600 x 600 x 600 |
Type | with storage tank of 120 litres |
Modulating heat output | 20 - 100% |
D.H.W. production (∆t 30°C) Specific flow rate l/min | 24,3 |
D.H.W. production (∆t 30°C) Continuous service l/min | 15,3 |
Product presentation

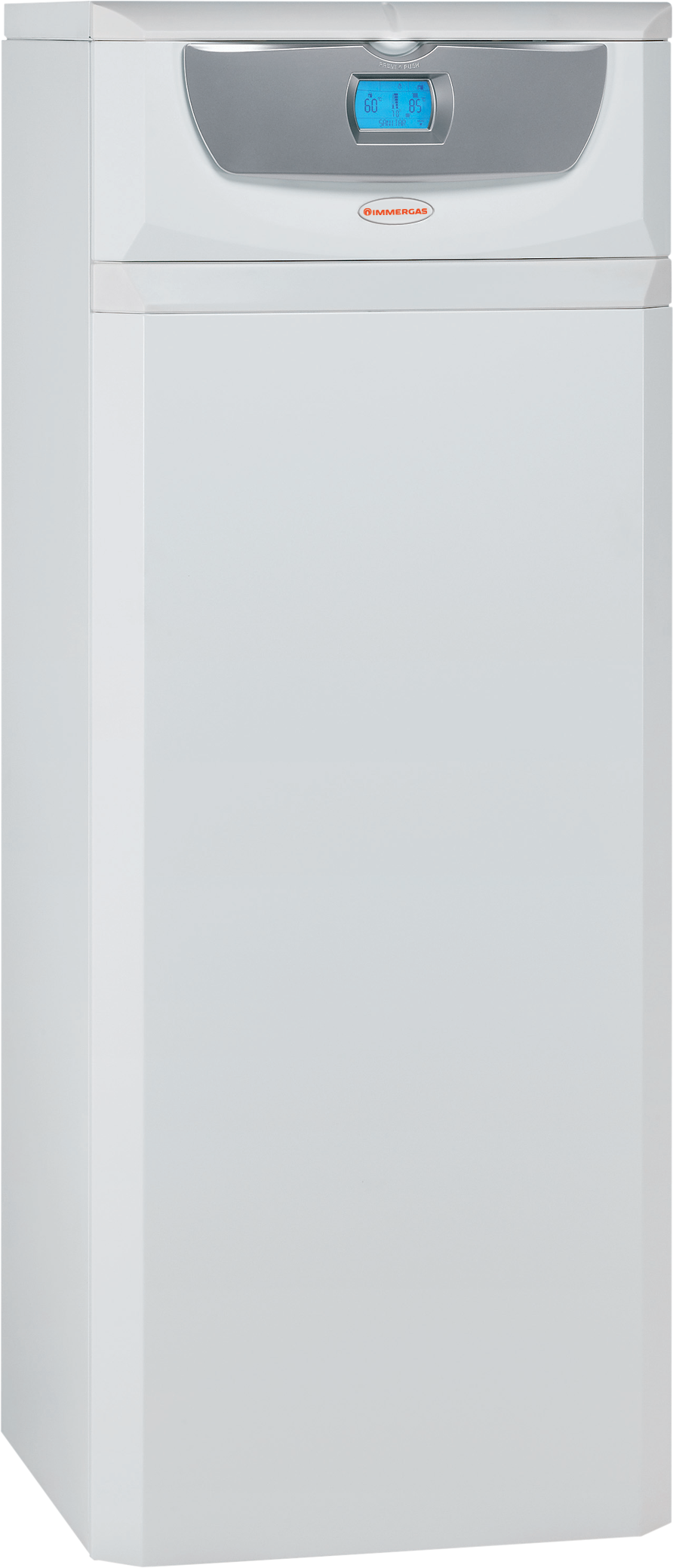

Floor standing condensing boiler with built-in 120-liter stainless steel storage tank.
It represents the best solution for different zone and mixed systems. Thanks to the wide offer of optional kits, which can be directly installed inside the boiler, it is possible to manage up to 3 zones (at direct or high/low mixed temperature).
The pumps provided as standard with the boiler and the optional ones, provided with the kit, have low electric consumption and allow maximum energy savings.
The 120-liter stainless steel storage tank guarantees a great production of domestic hot water, making HERCULES CONDENSING 32 3 ErP the ideal solution in those installation systems where several domestic hot water withdrawals are required at the same time and especially where Jacuzzis are installed.

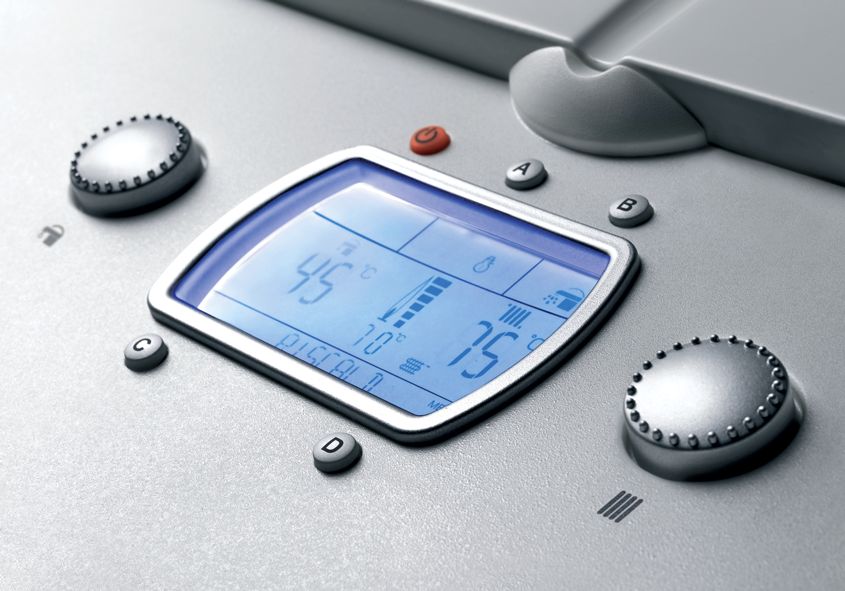

The wide and functional liquid crystals backlit display, allows an easy and immediate visualization of the main functioning information. The advanced electronics allows the coupling of the boiler with the optional kits for the climatic thermoregulation.
Thanks to low emissions of carbon monoxide (CO) and nitrogen oxide (NOX), HERCULES CONDENSING 32 3 ErP belongs to class 5, the most environmentally-friendly class established by the European standards (UNI EN 297 e 483).

Components HERCULES CONDENSING 32 3 ErP
