ARES 350 TEC ErP
Floor-standing modular condensing boiler multi-burner
The customer service provides
prompt answers within 24 hours.
prompt answers within 24 hours.
Wide modulating heat output
Ideal for energy efficiency upgrade
Technical data ARES 350 TEC ErP |
|
|---|---|
| Code | 3.025686 |
| custom | Array |
| custom2 | Array |
| Heat output ref. 80-60°C kW | 341,8 |
| Heat output ref. 50-30°C kW | 354,6 |
| Efficiency at nominal heat output ref. 80-60 °C | 98,2% |
| Efficiency at nominal heat output ref. 50-30 °C | 101,9% |
| Dimensions (HxWxD) mm | 1150 x 1300 x 770 |
| Modulating heat output | 3,5 - 100% |
Technical data ARES 350 TEC ErP |
|
|---|---|
| Code | 3.025686 |
| Product plus | HYDROGEN READY 20% |
| Product plus | BIM READY |
| Heat output ref. 80-60°C kW | 341,8 |
| Heat output ref. 50-30°C kW | 354,6 |
| Efficiency at nominal heat output ref. 80-60 °C | 98,2% |
| Efficiency at nominal heat output ref. 50-30 °C | 101,9% |
| Dimensions (HxWxD) mm | 1150 x 1300 x 770 |
| Modulating heat output | 3,5 - 100% |
Gallery

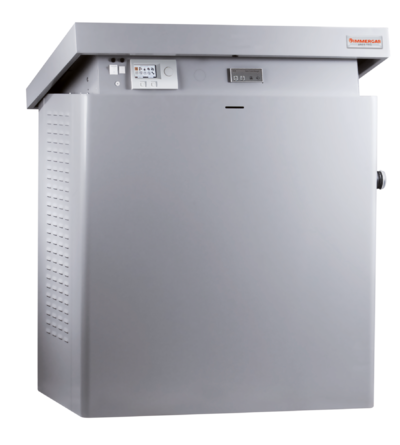

Floor standing modular condensing boiler.
341,8 kW heat output.
Designed for creating and restructuring any kind of technical room, it offers great flexibility in terms of modulation and power (up to 1:30) with high seasonal efficiency.
Extremely noiseless, it can be installed even if unsheltered and thanks to its extraordinary power/dimension/weight ratio it is ideal when the station space is reduced. ARES Tec ErP is not only a condensing boiler but a multi-burner mono-block that combines several independent heating units, all managed by one single electronic control logic. It is possible to hydraulically combine up to 8 boilers in cascade configuration and prearrange the system for the remote management and remote control.
Certified for indoor or outdoor installations thanks to the IPX5D electric protection, the appliance is supplied with a standard -5 °C anti-freeze protection kit.
Thanks to low emissions of carbon monoxide (CO) and nitrogen oxide (NOX), ARES 350 Tec ErP belongs to class 5, the most environmentally-friendly class established by the European standards (UNI EN 297 e UNI EN 483).
341,8 kW heat output.
Designed for creating and restructuring any kind of technical room, it offers great flexibility in terms of modulation and power (up to 1:30) with high seasonal efficiency.
Extremely noiseless, it can be installed even if unsheltered and thanks to its extraordinary power/dimension/weight ratio it is ideal when the station space is reduced. ARES Tec ErP is not only a condensing boiler but a multi-burner mono-block that combines several independent heating units, all managed by one single electronic control logic. It is possible to hydraulically combine up to 8 boilers in cascade configuration and prearrange the system for the remote management and remote control.
Certified for indoor or outdoor installations thanks to the IPX5D electric protection, the appliance is supplied with a standard -5 °C anti-freeze protection kit.
Thanks to low emissions of carbon monoxide (CO) and nitrogen oxide (NOX), ARES 350 Tec ErP belongs to class 5, the most environmentally-friendly class established by the European standards (UNI EN 297 e UNI EN 483).
24V Power pack kit Cod.3.028339
To be inserted in the control panel.
CRONO 7 (weekly digital chronothermostat) Cod.3.021622
ON/OFF room thermostat.
CRONO 7 WIRELESS (wireless weekly digital chronothermostat) Cod.3.021624
Wireless ON/OFF room thermostat.
Cascade regulator kit for ARES PRO - TEC ErP Cod.3.028340
It can manage up to 8 boilers in cascade.
Composed by:
• HSCP viewer/programmer
• BCM board
• 24V power supply
• external probe
• puffer probe
Composed by:
• HSCP viewer/programmer
• BCM board
• 24V power supply
• external probe
• puffer probe
SHC multifunction board kit Cod.3.028338
It allows to integrate 3 more user circuits for each kits up to 4 kit (max 12 supplementary circuits).
N.B. 1 multifunction kit (not connected) is supplied as standard with the boiler.
N.B. 1 multifunction kit (not connected) is supplied as standard with the boiler.
Solar collector temperature probe kit for UB Inox Solar V2, HERCULES SOLAR 26 ErP, ARES TEC ErP, ARES PRO and MAGIS HERCULES ErP Cod.1.028812
As per standard with these products.
Rear flue discharge kit for ARES Tec 250/350 kW Cod.3.023674
In comparison to the standard versions, the ARES Tec 150/350 models can be installed with a flue exhaust on the back, using appropriate optional kits.
Supporting kit for side flue discharge ARES Tec Cod.3.023675
All models.
Condensate neutralizer until 1500 kW Cod.3.023662
necessary to neutralize the acidity of the condensation. Inclusive of
granulate.
Granulate kit for condensate neutralizer (25 kg) Cod.3.023663
Complete recharge for condensate neutralizer kit until 1500 kW
Hydraulic separator from ARES Tec 150 kW to ARES Tec 350 kW Cod.3.023659
To be mainly used when the pump is independently dimensioned by the designer.
Outdoor casing for safety kit and hydraulic separator from ARES Tec 150 kW to ARES Tec 350 kW Cod.3.023670
In case of outdoor installation of the safety kits and of the hydraulic separator with pump, appropriate casing kits are available to protect from the athmospheric agents.
Outdoor casing for safety kit and plate heat exchanger from ARES Tec 150 kW to 350 kW Cod.3.023672
In case of outdoor installation of the safety kit with pump and plate heat exchanger, casing kits are available to assure protection from athmospheric agents.
Safety kit complete with pump and hydraulic separator for ARES Tec 300/350 kW Cod.3.023647
The following kit includes a "Y" filter, a modulating pump class A, an hydraulic separator and following safety devices: pressure gauge with pipe damper and manometer cock, thermometer, inspection openings, stube pipe G1 ¼'' for inserting safety valves, safety thermostat, pressure switch for minimum pressure with manual reset, additional stube pipe G1, safety pressure switch and differential flow switch.
The kit does not include the tested expansion tank, safety valve (2 for 660/770/900 kW versions), drain valve and manometer, since these need to be sized according to the characteristics of the system.
Safety kit complete with pump and plate heat exchanger for ARES Tec 250/350 kW Cod.3.023651
Ideal for system solutions where the primary circuit of the boiler needs to be completely separate from the one of the plant, like for example in presence of old-fashioned plants with high risks of dirt inside the circuit, disjunctions between open and closed vessel circuits or to allow the use of anti-freeze liquid in smaller quantities in case of installation of the boiler outdoors.
The kit includes a 316 L stainless steel plate heat exchanger, a modulating pump class A, a 8 litres expansion vessel (150/350 kW versions) and 24 litres (440/900 kW versions), an automatic air vent, delivery/return pipe, a drain valve, flanges/adapters, connectors, adjustable support components and the following safety devices: 1 safety valve 5 bar (2 valves for models 660/770/900), 3-way drain valve ½", manometer and dumper tube for manometer, thermometer with trap, minimum pressure switch with manual reset, safety pressure switch, inspection thermostat, inspection opening, coupling M/F ½'', paddle flow switch and stube pipes adapters.
Safety kit with filter from ARES Tec 150 kW to ARES Tec 350 kW Cod.3.023656
To be mainly used when the pump is dimensioned by designer. The safety kit includes: pressure gauge with pipe damper and, manometer cock, thermometer, inspection openings, stub pipes G1 ¼'' for inserting safety valves, safety thermostat, manual reset pressure switch for minimum pressure, additional stub pipe G1, safety pressure switch and differential flow switch.
The kit does not include the tested expansion tank, safety valve, drain valve and manometer, since these need to be sized according to the characteristics of the system.
Floor standing modular condensing boiler.
341,8 kW heat output.
Designed for creating and restructuring any kind of technical room, it offers great flexibility in terms of modulation and power (up to 1:30) with high seasonal efficiency.
Extremely noiseless, it can be installed even if unsheltered and thanks to its extraordinary power/dimension/weight ratio it is ideal when the station space is reduced. ARES Tec ErP is not only a condensing boiler but a multi-burner mono-block that combines several independent heating units, all managed by one single electronic control logic. It is possible to hydraulically combine up to 8 boilers in cascade configuration and prearrange the system for the remote management and remote control.
Certified for indoor or outdoor installations thanks to the IPX5D electric protection, the appliance is supplied with a standard -5 °C anti-freeze protection kit.
Thanks to low emissions of carbon monoxide (CO) and nitrogen oxide (NOX), ARES 350 Tec ErP belongs to class 5, the most environmentally-friendly class established by the European standards (UNI EN 297 e UNI EN 483).
341,8 kW heat output.
Designed for creating and restructuring any kind of technical room, it offers great flexibility in terms of modulation and power (up to 1:30) with high seasonal efficiency.
Extremely noiseless, it can be installed even if unsheltered and thanks to its extraordinary power/dimension/weight ratio it is ideal when the station space is reduced. ARES Tec ErP is not only a condensing boiler but a multi-burner mono-block that combines several independent heating units, all managed by one single electronic control logic. It is possible to hydraulically combine up to 8 boilers in cascade configuration and prearrange the system for the remote management and remote control.
Certified for indoor or outdoor installations thanks to the IPX5D electric protection, the appliance is supplied with a standard -5 °C anti-freeze protection kit.
Thanks to low emissions of carbon monoxide (CO) and nitrogen oxide (NOX), ARES 350 Tec ErP belongs to class 5, the most environmentally-friendly class established by the European standards (UNI EN 297 e UNI EN 483).
24V Power pack kit Cod.3.028339
To be inserted in the control panel.
CRONO 7 (weekly digital chronothermostat) Cod.3.021622
ON/OFF room thermostat.
CRONO 7 WIRELESS (wireless weekly digital chronothermostat) Cod.3.021624
Wireless ON/OFF room thermostat.
Cascade regulator kit for ARES PRO - TEC ErP Cod.3.028340
It can manage up to 8 boilers in cascade.
Composed by:
• HSCP viewer/programmer
• BCM board
• 24V power supply
• external probe
• puffer probe
Composed by:
• HSCP viewer/programmer
• BCM board
• 24V power supply
• external probe
• puffer probe
SHC multifunction board kit Cod.3.028338
It allows to integrate 3 more user circuits for each kits up to 4 kit (max 12 supplementary circuits).
N.B. 1 multifunction kit (not connected) is supplied as standard with the boiler.
N.B. 1 multifunction kit (not connected) is supplied as standard with the boiler.
Solar collector temperature probe kit for UB Inox Solar V2, HERCULES SOLAR 26 ErP, ARES TEC ErP, ARES PRO and MAGIS HERCULES ErP Cod.1.028812
As per standard with these products.
Rear flue discharge kit for ARES Tec 250/350 kW Cod.3.023674
In comparison to the standard versions, the ARES Tec 150/350 models can be installed with a flue exhaust on the back, using appropriate optional kits.
Supporting kit for side flue discharge ARES Tec Cod.3.023675
All models.
Condensate neutralizer until 1500 kW Cod.3.023662
necessary to neutralize the acidity of the condensation. Inclusive of
granulate.
Granulate kit for condensate neutralizer (25 kg) Cod.3.023663
Complete recharge for condensate neutralizer kit until 1500 kW
Hydraulic separator from ARES Tec 150 kW to ARES Tec 350 kW Cod.3.023659
To be mainly used when the pump is independently dimensioned by the designer.
Outdoor casing for safety kit and hydraulic separator from ARES Tec 150 kW to ARES Tec 350 kW Cod.3.023670
In case of outdoor installation of the safety kits and of the hydraulic separator with pump, appropriate casing kits are available to protect from the athmospheric agents.
Outdoor casing for safety kit and plate heat exchanger from ARES Tec 150 kW to 350 kW Cod.3.023672
In case of outdoor installation of the safety kit with pump and plate heat exchanger, casing kits are available to assure protection from athmospheric agents.
Safety kit complete with pump and hydraulic separator for ARES Tec 300/350 kW Cod.3.023647
The following kit includes a "Y" filter, a modulating pump class A, an hydraulic separator and following safety devices: pressure gauge with pipe damper and manometer cock, thermometer, inspection openings, stube pipe G1 ¼'' for inserting safety valves, safety thermostat, pressure switch for minimum pressure with manual reset, additional stube pipe G1, safety pressure switch and differential flow switch.
The kit does not include the tested expansion tank, safety valve (2 for 660/770/900 kW versions), drain valve and manometer, since these need to be sized according to the characteristics of the system.
Safety kit complete with pump and plate heat exchanger for ARES Tec 250/350 kW Cod.3.023651
Ideal for system solutions where the primary circuit of the boiler needs to be completely separate from the one of the plant, like for example in presence of old-fashioned plants with high risks of dirt inside the circuit, disjunctions between open and closed vessel circuits or to allow the use of anti-freeze liquid in smaller quantities in case of installation of the boiler outdoors.
The kit includes a 316 L stainless steel plate heat exchanger, a modulating pump class A, a 8 litres expansion vessel (150/350 kW versions) and 24 litres (440/900 kW versions), an automatic air vent, delivery/return pipe, a drain valve, flanges/adapters, connectors, adjustable support components and the following safety devices: 1 safety valve 5 bar (2 valves for models 660/770/900), 3-way drain valve ½", manometer and dumper tube for manometer, thermometer with trap, minimum pressure switch with manual reset, safety pressure switch, inspection thermostat, inspection opening, coupling M/F ½'', paddle flow switch and stube pipes adapters.
Safety kit with filter from ARES Tec 150 kW to ARES Tec 350 kW Cod.3.023656
To be mainly used when the pump is dimensioned by designer. The safety kit includes: pressure gauge with pipe damper and, manometer cock, thermometer, inspection openings, stub pipes G1 ¼'' for inserting safety valves, safety thermostat, manual reset pressure switch for minimum pressure, additional stub pipe G1, safety pressure switch and differential flow switch.
The kit does not include the tested expansion tank, safety valve, drain valve and manometer, since these need to be sized according to the characteristics of the system.
