UB 550 V2

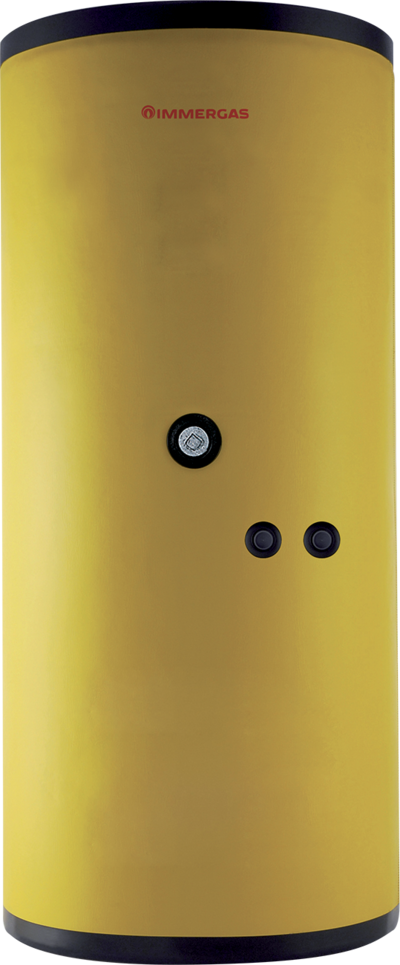

Combined Storage Tank Unit.
The customer service provides
prompt answers within 24 hours.
prompt answers within 24 hours.
Technical data UB 550 V2 |
|
|---|---|
| Code | 3.027813 |
| Capacity (litre) | 553 |
| Dimensions (H) mm | 1930 |
| External diameter mm | Ø 810 |
| Type | combined |
Technical data UB 550 V2 |
|
|---|---|
| Code | 3.027813 |
| Capacity (litre) | 553 |
| Dimensions (H) mm | 1930 |
| External diameter mm | Ø 810 |
| Type | combined |
Gallery
Combined Storage Tank Unit for heating and domestic hot water integration.
The 553 litres Storage Tank Unit is equipped with two concentric coil shaped stainless steel water to water heat exchangers, one of them dedicated to DHW production and the other one fit for energy integration, in case of coupling with solar collector or another energy source.Polyurethane (PU) rigid insulation thick 70 mm (which can bedisassembled in case of necessity).The standard anodic protection system is given by two magnesium anodes, one of them placed in the upper part of the storage and the other inserted in the bottom, close to the flange. This solution can be easily integrated with its own optional kit. UB 550 V2 body is pre-arranged to fix double pump station and to insert electric resistance kit.
Ideal solution for single-family homes, storage tank unit has 5 years conventional warranty.

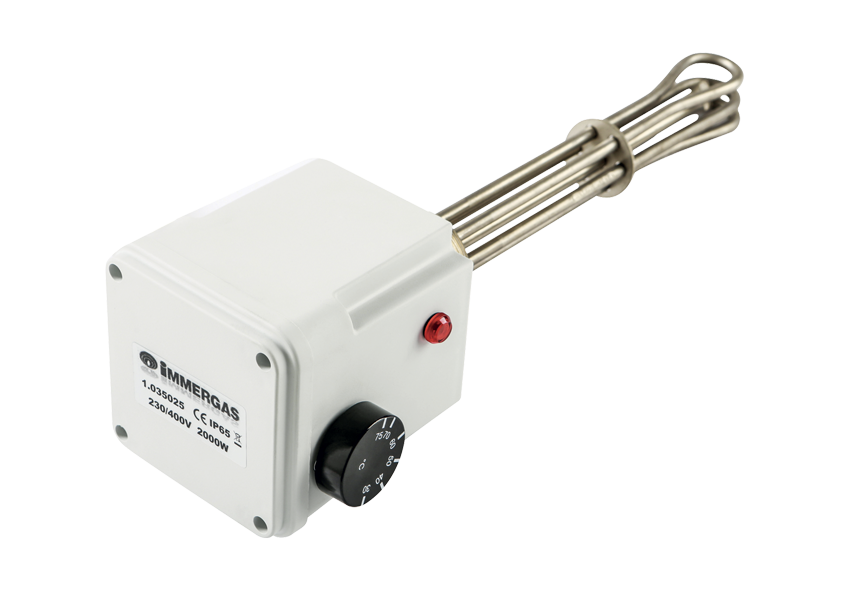

Additional 2 kW electric resistance kit for OMNISTOR, INOXSTOR V2 and UB 550/750 Cod.3.020861
Power supply 230 or 400 Vac.
Connection kit for double solar pump stations Cod.3.021008
The kit includes: hydraulic fittings.
Connection kit for double solar pump stations Cod.3.020300
The kit includes: hydraulic fittings.
Double solar pump station (1-6 l/min) ErP Cod.3.034597
The kit includes: circulation pump, 6 bar safety valve, 0-10 bar pressure gauge, one-way ball valve, thermometer and connection to the safety unit, flow rate regulated and filling and draining valve, filling valve, draining valve, insulation.
1" hydraulic connections, 230 V ~ power supply voltage.
Combined Storage Tank Unit for heating and domestic hot water integration.
The 553 litres Storage Tank Unit is equipped with two concentric coil shaped stainless steel water to water heat exchangers, one of them dedicated to DHW production and the other one fit for energy integration, in case of coupling with solar collector or another energy source.Polyurethane (PU) rigid insulation thick 70 mm (which can bedisassembled in case of necessity).The standard anodic protection system is given by two magnesium anodes, one of them placed in the upper part of the storage and the other inserted in the bottom, close to the flange. This solution can be easily integrated with its own optional kit. UB 550 V2 body is pre-arranged to fix double pump station and to insert electric resistance kit.
Ideal solution for single-family homes, storage tank unit has 5 years conventional warranty.
Additional 2 kW electric resistance kit for OMNISTOR, INOXSTOR V2 and UB 550/750 Cod.3.020861
Power supply 230 or 400 Vac.
Connection kit for double solar pump stations Cod.3.021008
The kit includes: hydraulic fittings.
Connection kit for double solar pump stations Cod.3.020300
The kit includes: hydraulic fittings.
Double solar pump station (1-6 l/min) ErP Cod.3.034597
The kit includes: circulation pump, 6 bar safety valve, 0-10 bar pressure gauge, one-way ball valve, thermometer and connection to the safety unit, flow rate regulated and filling and draining valve, filling valve, draining valve, insulation.
1" hydraulic connections, 230 V ~ power supply voltage.
