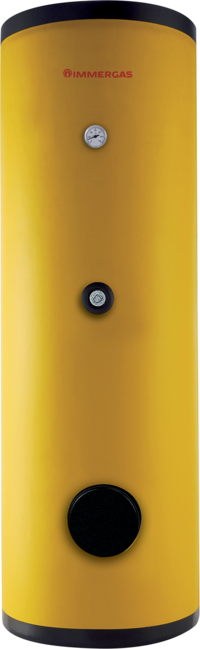

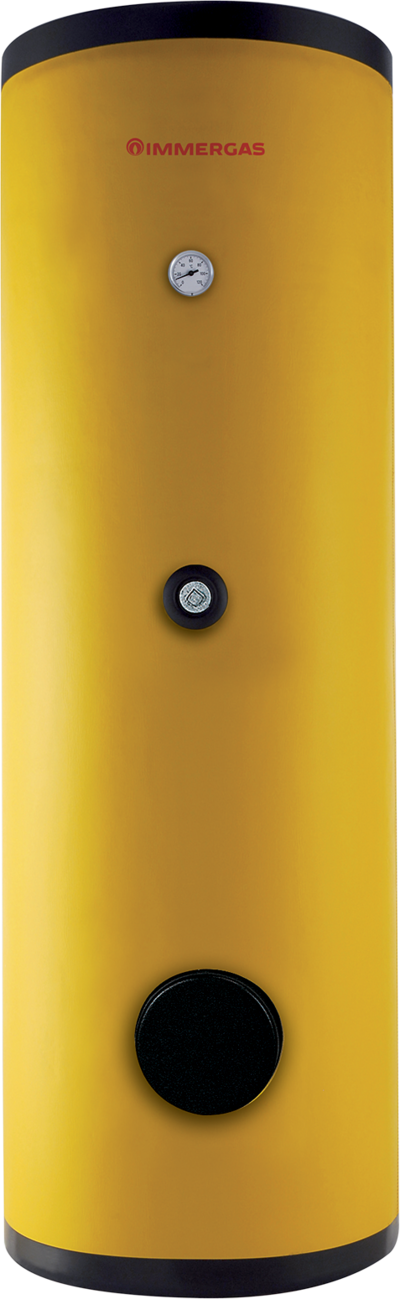

UB 1500 V2
Vitrified Storage Tank Unit for production of domestic hot water.
The customer service provides
prompt answers within 24 hours.
prompt answers within 24 hours.
Technical data UB 1500 V2 |
|
|---|---|
| Code | 3.027816 |
| Capacity (litre) | 1388 |
| Dimensions (H) mm | 2250 |
| External diameter mm | Ø 1200 |
| Type | production of domestic hot water |
| Material | vitrified steel |
Technical data UB 1500 V2 |
|
|---|---|
| Code | 3.027816 |
| Capacity (litre) | 1388 |
| Dimensions (H) mm | 2250 |
| External diameter mm | Ø 1200 |
| Type | production of domestic hot water |
| Material | vitrified steel |
Gallery
Vitrified steel storage tank unit for DHW production.
UB 1500 V2 litres Storage Tank Unit is equipped with two concentric coil shaped stainless steel water to water heat exchangers, one magnesium anode and 2 probe-supports and NTC probe for Immergas boiler connection < 35 kW, all of them furnished as standard. Internal surface is characterized by an internal glazed enamel treatment (also called vitrification), that gives great resistance to corrosion due to water and steam, and preserves DHW physical and chemical qualities from any kind of alteration. Inspection flange is present, placed in the lower part of the unit. Polyurethane (PU) rigid insulation thick 100 mm which can be disassembled in case of necessity. UB 1500 V2 body is prearranged for the insertion of electric resistance kit.
Ideal solution for light commercial systems, storage tank unit has 5 years conventional warranty.

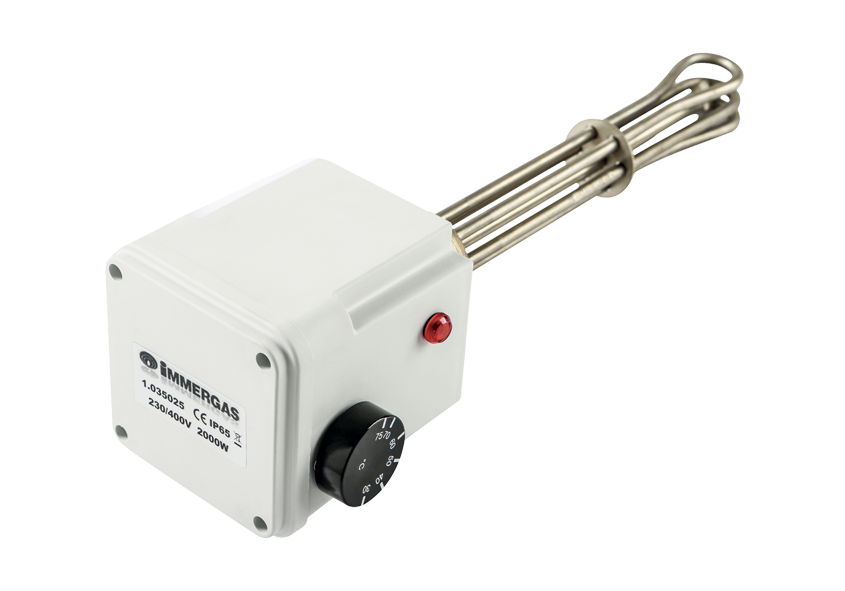

Additional 5 kW electric resistance kit for UB 1000/1500 and UB 750 Cod.3.020862
Power supply 230 or 400 Vac.
Vitrified steel storage tank unit for DHW production.
UB 1500 V2 litres Storage Tank Unit is equipped with two concentric coil shaped stainless steel water to water heat exchangers, one magnesium anode and 2 probe-supports and NTC probe for Immergas boiler connection < 35 kW, all of them furnished as standard. Internal surface is characterized by an internal glazed enamel treatment (also called vitrification), that gives great resistance to corrosion due to water and steam, and preserves DHW physical and chemical qualities from any kind of alteration. Inspection flange is present, placed in the lower part of the unit. Polyurethane (PU) rigid insulation thick 100 mm which can be disassembled in case of necessity. UB 1500 V2 body is prearranged for the insertion of electric resistance kit.
Ideal solution for light commercial systems, storage tank unit has 5 years conventional warranty.
Additional 5 kW electric resistance kit for UB 1000/1500 and UB 750 Cod.3.020862
Power supply 230 or 400 Vac.
