UB INOX SOLAR 200 V2
Inox Storage Tank Unit for production of domestic hot water and built-in solar circuit.
The customer service provides
prompt answers within 24 hours.
prompt answers within 24 hours.
Technical data UB INOX SOLAR 200 V2 |
|
|---|---|
| Code | 3.027820 |
| Content (litre) | 199 |
| Dimensions (HxWxD) mm | 1250 x 650 x 750 |
| Type | production of domestic hot water |
| Material | stainless steel |
Technical data UB INOX SOLAR 200 V2 |
|
|---|---|
| Code | 3.027820 |
| Content (litre) | 199 |
| Dimensions (HxWxD) mm | 1250 x 650 x 750 |
| Type | production of domestic hot water |
| Material | stainless steel |
Gallery
Stainlees steel storage tank unit for the DHW production.

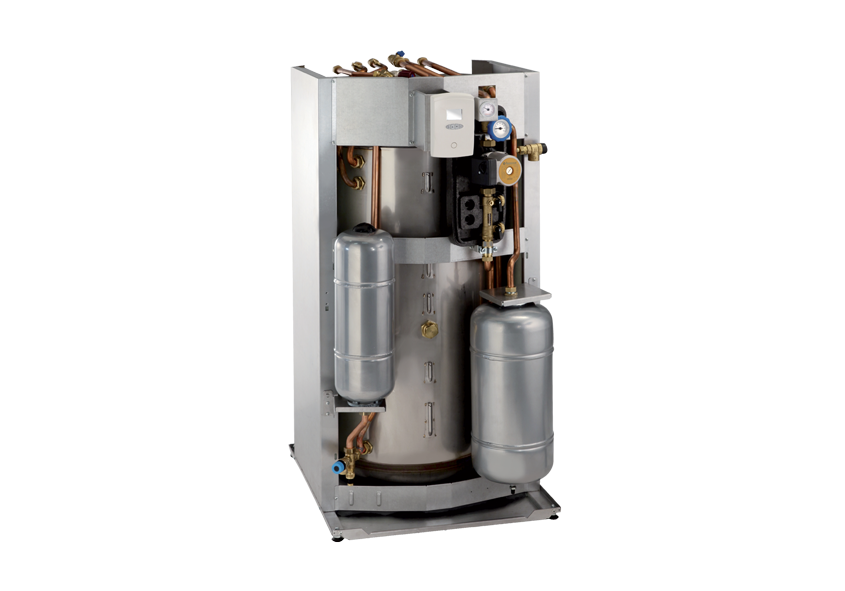

The storage tank unit is made up of a 199 litre storage tank made totally in stainless steel, with upper inspection flange. UB INOX SOLAR 200 V2 is equipped with integrated solar central unit. Soft upper, lower and frontal insulation two-layer perimeter insulation (stiff + soft). The storage tank is supplied with a double coil, water/water heat exchanger joined together, extractable and made in stainless steel. UB INOX SOLAR 200 V2 is equipped also with an 8-bar safety valve, an 8-liter expansion vessel, an 18-liter solar expansion vessel, solar low consumption pump station, mixing valve and magnesium anode. The RAL 9010 painted casing, allows the installation of UB INOX SOLAR 200 V2 inside the living space.
5 years conventional warranty.
Connection kit for UB Inox 200-2 or UB Inox 120-2 in parallel Cod.3.022212
Per due UB INOX 120 V2 o due UB INOX 200 V2 in parallelo.
Electronic anode kit for Storage Tank Unit up to 500 litres Cod.3.020344
Can be used instead of magnesium anodes, requires no periodical replacement.
Recirculation kit UB Inox Solar 200-2 and UB Inox 200-2 Cod.3.022200
Only probe pipe.
Stainlees steel storage tank unit for the DHW production.
The storage tank unit is made up of a 199 litre storage tank made totally in stainless steel, with upper inspection flange. UB INOX SOLAR 200 V2 is equipped with integrated solar central unit. Soft upper, lower and frontal insulation two-layer perimeter insulation (stiff + soft). The storage tank is supplied with a double coil, water/water heat exchanger joined together, extractable and made in stainless steel. UB INOX SOLAR 200 V2 is equipped also with an 8-bar safety valve, an 8-liter expansion vessel, an 18-liter solar expansion vessel, solar low consumption pump station, mixing valve and magnesium anode. The RAL 9010 painted casing, allows the installation of UB INOX SOLAR 200 V2 inside the living space.
5 years conventional warranty.
Connection kit for UB Inox 200-2 or UB Inox 120-2 in parallel Cod.3.022212
Per due UB INOX 120 V2 o due UB INOX 200 V2 in parallelo.
Electronic anode kit for Storage Tank Unit up to 500 litres Cod.3.020344
Can be used instead of magnesium anodes, requires no periodical replacement.
Recirculation kit UB Inox Solar 200-2 and UB Inox 200-2 Cod.3.022200
Only probe pipe.
