DOMESTIC SOL 750 V2
Combined pump-circulated solar pack with 5 CP4 XL Flat-Plate Collectors and 750 litre Storage Tank Unit
The customer service provides
prompt answers within 24 hours.
prompt answers within 24 hours.
Technical data DOMESTIC SOL 750 V2 |
|
|---|---|
| Code | 3.027840 |
| Number of collectors | 5 |
| Collector type | CP4 XL Flat-Plate |
| Storage Tank Unit (litres) | combined 750 |
| Solar expansion vessel (litres) | 80 |
| Tank of premixed glycol (n°) | 2 of 20 kg |
Technical data DOMESTIC SOL 750 V2 |
|
|---|---|
| Code | 3.027840 |
| Number of collectors | 5 |
| Collector type | CP4 XL Flat-Plate |
| Storage Tank Unit (litres) | combined 750 |
| Solar expansion vessel (litres) | 80 |
| Tank of premixed glycol (n°) | 2 of 20 kg |
Gallery
This solar pack, for the production of domestic hot water, includes as per standard:
- 5 CP4 XL Flat-Plate Collectors (2,52 m2 of gross surface) complete with 2 aluminium support frames for two collectors each and one aluminium support frames for one collector, vertically installed
- Combined 750 litre Storage Tank Unit, insulated, for heating integration with a 28,5 litre immersed stainless steel coil for production of domestic hot water and solar integration coil. Supplied with connections for boiler and auxiliary heat generator (for example AUDAX heat pump). It's possible to mount directly on the storage tank the single pump station and the solar central unit .
The use of this Storage Tank Unit involves the installation of an appropriately sized DHW expansion vessel and safety valve, not included in the supply. - Double low consumption pump station with safety valve 6 bar and flow rate regulator (2-15 l/min) and air separating device with relative connection kit
- PRO Solar central unit with four temperature probes (Storage Tank Unit and Collector)
- NTC probe for Immergas boiler connection < 35 kW

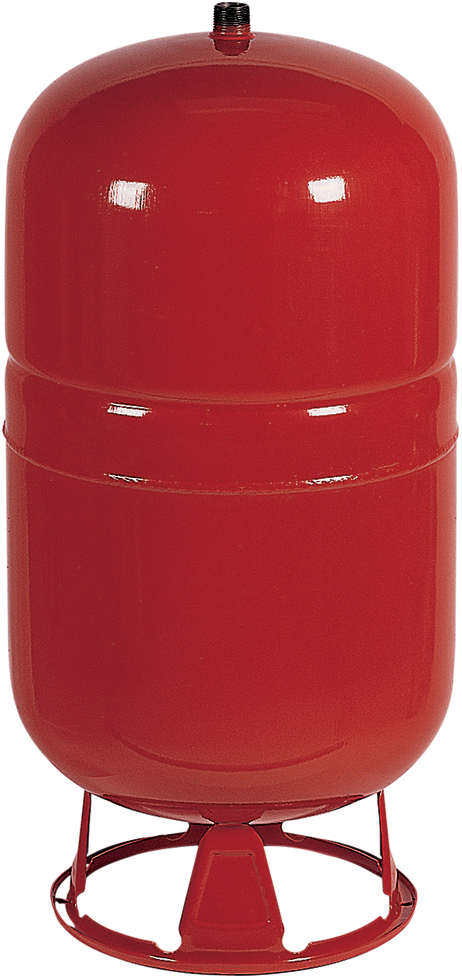

- 80 litre expansion vessel with accessories
- Complete hydraulic fittings for mounting the collector
- ¾" adjustable thermostatic mixing valve
- 2 tanks of 20 kg of premixed glycol
- 12 brackets for slates and tiles for planar installation on sloped roofs with relative fixing accessories
2 plug kit for CP4 XL/M Flat-Plate Collector Cod.3.020364
The kit includes: 2 mechanical sealing plugs to close fittings not used by CP4 XL/M Flat-Plate Collector.

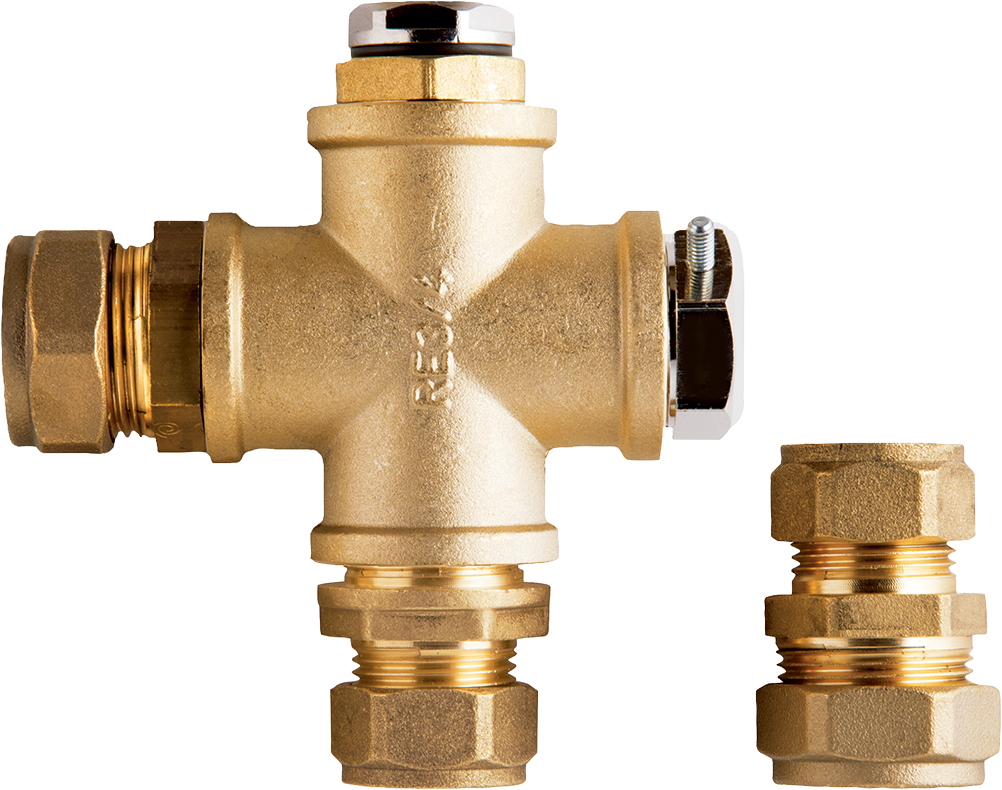

3-way valve kit Cod.3.020632
4 "L"-shaped brackets kit for slates/tiles on smooth roofs for CP4 XL/M Flat-Plate Collector Cod.3.022776
The kit includes: 4 brackets.
It allows to fix the selector frame onto smooth roofs (for 1 collector). Always add the fixing element kit code 3.022922.

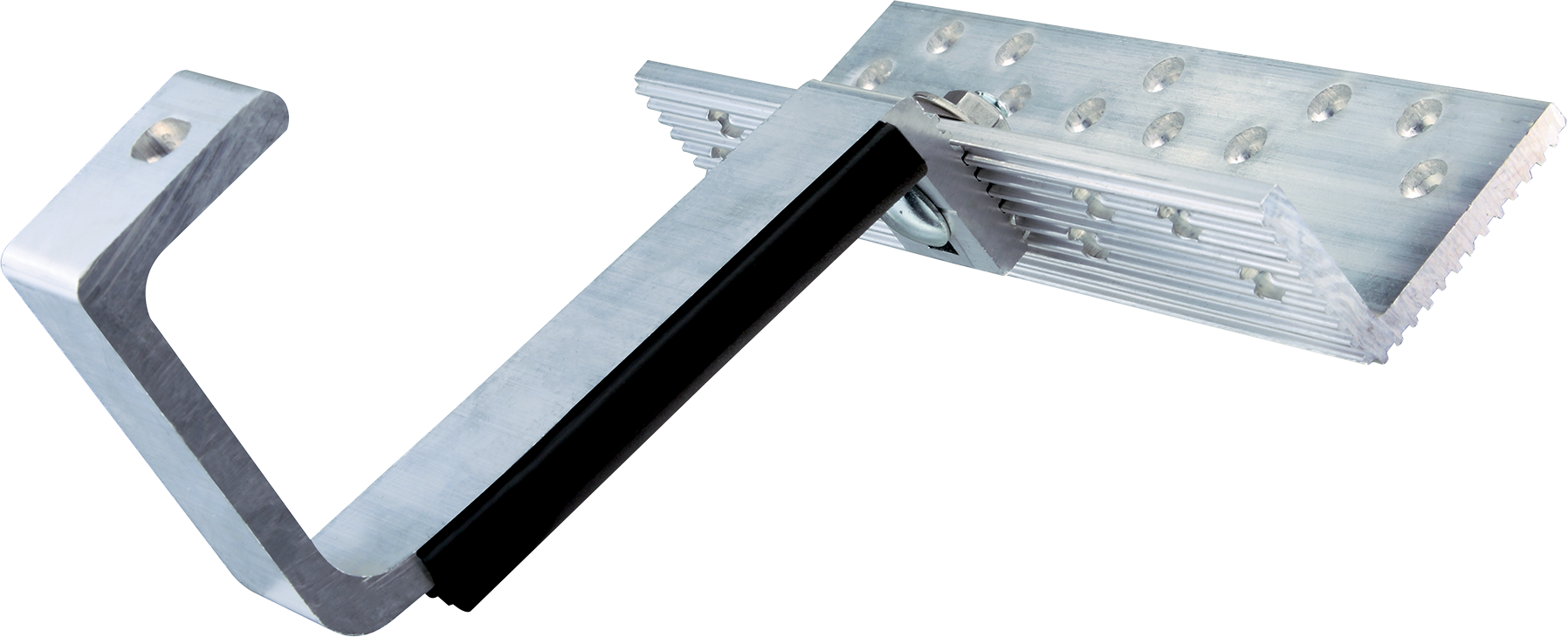

4 brackets kit for slates/tiles to be drilled for CP4 XL/M Flat-Plate Collector Cod.3.019105
The kit includes: 4 brackets.
It allows to fix the collector frame onto sloped roofs.
Always add the fixing element kit code 3.022922.
Always add the fixing element kit code 3.022922.
Basic free-standing 45° installation kit for 1 vertical CP4 XL/M Flat-Plate Collector Cod.3.022674
The kit includes: 4 profiles , 2 collector side fixing brackets.
Cover for CP4 XL Flat-Plate Collector Cod.1.033271
Allows to cover the collector to guarantee its integrity until it is filled.
DN 16 steel pipe connection kit for collectors Cod.3.019125
The kit includes:
double DN 16 insulated 15 m long steel pipe integrated cable for solar collector temperature probe.
DN 20 steel pipe connection kit for collectors Cod.3.020354
The kit includes:
double DN 20 insulated 15 m long steel pipe integrated cable for solar collector temperature probe hydraulic fittings for connections.
Frame on tiles kit for 1 horizontal CP4 XL/M Flat-Plate Collector Cod.3.022749
The kit includes: 2 horizontal profiles.
(the profiles must be shortened when using CP4 M)
Free-standing 45° installation extension kit for vertical CP4 XL/M Flat-Plate Collector Cod.3.022677
The kit includes: 2 profiles , 1 fixing clamp with hole , 1 mounting template (to be removed after installation).
Free-standing 45° installation kit for 1 Flat-Plate Collector Cod.3.022750
The kit includes: 4 profiles, 2 collector side fixing brackets.
(the horizontal profiles must be shortened when using CP4 M)
Recessed frame extension kit for CP4 XL/M Flat-Plate Collector Cod.3.023028
The kit includes: intermediate frame around collectors.
Recessed kit for 1 Flat-Plate Collector Cod.3.022213
The kit includes: special waterproof trays, perimeter frames, waterproofing sheath.
Sanitary priority 3-way valve kit Cod.3.020633
System filling pump station Cod.3.018742
Ideal for correctly filling the forced circulation solar system with the waterglycol solution.
Vent kit and fitting for Ø 22 mm pipe for horizontal CP4 XL/M Flat-Plate Collector Cod.3.022849
This kit is used in applications with horizontal CP4 XL/M Flat-Plate.
¾" nut kit for DN 16 steel pipe Cod.1.027255
For connection to solar collectors.
Ø 18 copper pipe connection kit for collectors Cod.3.019089
The kit includes:
double Ø 18 mm insulated 15 m long copper pipe integrated cable for solar collector temperature probe.
This solar pack, for the production of domestic hot water, includes as per standard:
- 5 CP4 XL Flat-Plate Collectors (2,52 m2 of gross surface) complete with 2 aluminium support frames for two collectors each and one aluminium support frames for one collector, vertically installed
- Combined 750 litre Storage Tank Unit, insulated, for heating integration with a 28,5 litre immersed stainless steel coil for production of domestic hot water and solar integration coil. Supplied with connections for boiler and auxiliary heat generator (for example AUDAX heat pump). It's possible to mount directly on the storage tank the single pump station and the solar central unit .
The use of this Storage Tank Unit involves the installation of an appropriately sized DHW expansion vessel and safety valve, not included in the supply. - Double low consumption pump station with safety valve 6 bar and flow rate regulator (2-15 l/min) and air separating device with relative connection kit
- PRO Solar central unit with four temperature probes (Storage Tank Unit and Collector)
- NTC probe for Immergas boiler connection < 35 kW
- 80 litre expansion vessel with accessories
- Complete hydraulic fittings for mounting the collector
- ¾" adjustable thermostatic mixing valve
- 2 tanks of 20 kg of premixed glycol
- 12 brackets for slates and tiles for planar installation on sloped roofs with relative fixing accessories
2 plug kit for CP4 XL/M Flat-Plate Collector Cod.3.020364
The kit includes: 2 mechanical sealing plugs to close fittings not used by CP4 XL/M Flat-Plate Collector.
3-way valve kit Cod.3.020632
4 "L"-shaped brackets kit for slates/tiles on smooth roofs for CP4 XL/M Flat-Plate Collector Cod.3.022776
The kit includes: 4 brackets.
It allows to fix the selector frame onto smooth roofs (for 1 collector). Always add the fixing element kit code 3.022922.
4 brackets kit for slates/tiles to be drilled for CP4 XL/M Flat-Plate Collector Cod.3.019105
The kit includes: 4 brackets.
It allows to fix the collector frame onto sloped roofs.
Always add the fixing element kit code 3.022922.
Always add the fixing element kit code 3.022922.
Basic free-standing 45° installation kit for 1 vertical CP4 XL/M Flat-Plate Collector Cod.3.022674
The kit includes: 4 profiles , 2 collector side fixing brackets.
Cover for CP4 XL Flat-Plate Collector Cod.1.033271
Allows to cover the collector to guarantee its integrity until it is filled.
DN 16 steel pipe connection kit for collectors Cod.3.019125
The kit includes:
double DN 16 insulated 15 m long steel pipe integrated cable for solar collector temperature probe.
DN 20 steel pipe connection kit for collectors Cod.3.020354
The kit includes:
double DN 20 insulated 15 m long steel pipe integrated cable for solar collector temperature probe hydraulic fittings for connections.
Frame on tiles kit for 1 horizontal CP4 XL/M Flat-Plate Collector Cod.3.022749
The kit includes: 2 horizontal profiles.
(the profiles must be shortened when using CP4 M)
Free-standing 45° installation extension kit for vertical CP4 XL/M Flat-Plate Collector Cod.3.022677
The kit includes: 2 profiles , 1 fixing clamp with hole , 1 mounting template (to be removed after installation).
Free-standing 45° installation kit for 1 Flat-Plate Collector Cod.3.022750
The kit includes: 4 profiles, 2 collector side fixing brackets.
(the horizontal profiles must be shortened when using CP4 M)
Recessed frame extension kit for CP4 XL/M Flat-Plate Collector Cod.3.023028
The kit includes: intermediate frame around collectors.
Recessed kit for 1 Flat-Plate Collector Cod.3.022213
The kit includes: special waterproof trays, perimeter frames, waterproofing sheath.
Sanitary priority 3-way valve kit Cod.3.020633
System filling pump station Cod.3.018742
Ideal for correctly filling the forced circulation solar system with the waterglycol solution.
Vent kit and fitting for Ø 22 mm pipe for horizontal CP4 XL/M Flat-Plate Collector Cod.3.022849
This kit is used in applications with horizontal CP4 XL/M Flat-Plate.
¾" nut kit for DN 16 steel pipe Cod.1.027255
For connection to solar collectors.
Ø 18 copper pipe connection kit for collectors Cod.3.019089
The kit includes:
double Ø 18 mm insulated 15 m long copper pipe integrated cable for solar collector temperature probe.
