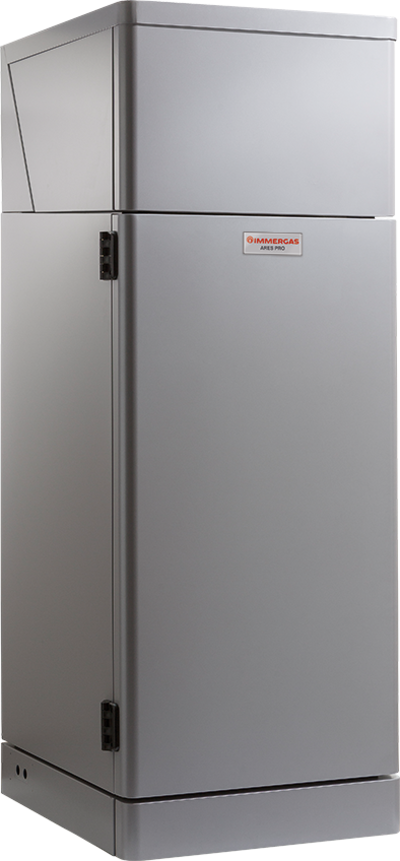

ARES PRO 600
Floor-standing modular condensing boiler for thermal power stations
The customer service provides
prompt answers within 24 hours.
prompt answers within 24 hours.
Compact dimensions
Ideal for replacement
Possible installation in cascade
Technical data ARES PRO 600 |
|
|---|---|
| Code | 3.028315 |
| custom | Array |
| custom2 | Array |
| Heat output ref. 80-60°C kW | 540,32 |
| Heat output ref. 50-30°C kW | 581,19 |
| Efficiency at nominal heat output ref. 80-60 °C | 98,24% |
| Efficiency at nominal heat output ref. 50-30 °C | 105,67% |
| Dimensions (HxWxD) mm | 2206 x 1096 x 1398 |
| Modulating heat output | 23 - 100% |
| Empty appliance weight (cover) kg | 755 (120) |
Technical data ARES PRO 600 |
|
|---|---|
| Code | 3.028315 |
| Product plus | HYDROGEN READY 20% |
| Product plus | BIM READY |
| Heat output ref. 80-60°C kW | 540,32 |
| Heat output ref. 50-30°C kW | 581,19 |
| Efficiency at nominal heat output ref. 80-60 °C | 98,24% |
| Efficiency at nominal heat output ref. 50-30 °C | 105,67% |
| Dimensions (HxWxD) mm | 2206 x 1096 x 1398 |
| Modulating heat output | 23 - 100% |
| Empty appliance weight (cover) kg | 755 (120) |
Gallery
Floor standing condensing boiler with high content of water.
540,32 kW heat output.
Reduced clogging risk, low load losses and maximum adaptability to existing systems are the characteristics that make ARES PRO ideal when replacing obsolete generators as well as in new installations.
Its large-sized primary storage tank and modulation ratio up to 1:4 of maximum output, reduce the number of burner switch-on/switch-off cycles.
It can be used alone or in cascade installations with up to 8 units, which guarantee higher overall efficiency and lower running costs. ARES PRO makes the installation of a hydraulic compensator not necessary, which means simpler systems and increased efficiency.
Certified for indoor installations.
Thanks to low emissions of carbon monoxide (CO) and nitrogen oxide (NOX), ARES PRO 600 belongs to class 6, the most environmentally-friendly class established by the European standards (UNI EN 297 e UNI EN 483).
24V Power pack kit Cod.3.028339
To be inserted in the control panel.
CRONO 7 (weekly digital chronothermostat) Cod.3.021622
ON/OFF room thermostat.
CRONO 7 WIRELESS (wireless weekly digital chronothermostat) Cod.3.021624
Wireless ON/OFF room thermostat.
Cascade regulator kit for ARES PRO - TEC ErP Cod.3.028340
It can manage up to 8 boilers in cascade.
Composed by:
• HSCP viewer/programmer
• BCM board
• 24V power supply
• external probe
• puffer probe
Composed by:
• HSCP viewer/programmer
• BCM board
• 24V power supply
• external probe
• puffer probe
SHC multifunction board kit Cod.3.028338
It allows to integrate 3 more user circuits for each kits up to 4 kit (max 12 supplementary circuits).
N.B. 1 multifunction kit (not connected) is supplied as standard with the boiler.
N.B. 1 multifunction kit (not connected) is supplied as standard with the boiler.
Solar collector temperature probe kit for UB Inox Solar V2, HERCULES SOLAR 26 ErP, ARES TEC ErP, ARES PRO and MAGIS HERCULES ErP Cod.1.028812
As per standard with these products.
Condensate neutralizer until 1500 kW Cod.3.023662
necessary to neutralize the acidity of the condensation. Inclusive of
granulate.
Granulate kit for condensate neutralizer (25 kg) Cod.3.023663
Complete recharge for condensate neutralizer kit until 1500 kW
Safety kit with filter for ARES 900 Tec - ARES PRO 600 Cod.3.023658
The kit includes filter and safety devices except safety valve, manometer, expansion vessel and fuel relief valve.
Floor standing condensing boiler with high content of water.
540,32 kW heat output.
Reduced clogging risk, low load losses and maximum adaptability to existing systems are the characteristics that make ARES PRO ideal when replacing obsolete generators as well as in new installations.
Its large-sized primary storage tank and modulation ratio up to 1:4 of maximum output, reduce the number of burner switch-on/switch-off cycles.
It can be used alone or in cascade installations with up to 8 units, which guarantee higher overall efficiency and lower running costs. ARES PRO makes the installation of a hydraulic compensator not necessary, which means simpler systems and increased efficiency.
Certified for indoor installations.
Thanks to low emissions of carbon monoxide (CO) and nitrogen oxide (NOX), ARES PRO 600 belongs to class 6, the most environmentally-friendly class established by the European standards (UNI EN 297 e UNI EN 483).
24V Power pack kit Cod.3.028339
To be inserted in the control panel.
CRONO 7 (weekly digital chronothermostat) Cod.3.021622
ON/OFF room thermostat.
CRONO 7 WIRELESS (wireless weekly digital chronothermostat) Cod.3.021624
Wireless ON/OFF room thermostat.
Cascade regulator kit for ARES PRO - TEC ErP Cod.3.028340
It can manage up to 8 boilers in cascade.
Composed by:
• HSCP viewer/programmer
• BCM board
• 24V power supply
• external probe
• puffer probe
Composed by:
• HSCP viewer/programmer
• BCM board
• 24V power supply
• external probe
• puffer probe
SHC multifunction board kit Cod.3.028338
It allows to integrate 3 more user circuits for each kits up to 4 kit (max 12 supplementary circuits).
N.B. 1 multifunction kit (not connected) is supplied as standard with the boiler.
N.B. 1 multifunction kit (not connected) is supplied as standard with the boiler.
Solar collector temperature probe kit for UB Inox Solar V2, HERCULES SOLAR 26 ErP, ARES TEC ErP, ARES PRO and MAGIS HERCULES ErP Cod.1.028812
As per standard with these products.
Condensate neutralizer until 1500 kW Cod.3.023662
necessary to neutralize the acidity of the condensation. Inclusive of
granulate.
Granulate kit for condensate neutralizer (25 kg) Cod.3.023663
Complete recharge for condensate neutralizer kit until 1500 kW
Safety kit with filter for ARES 900 Tec - ARES PRO 600 Cod.3.023658
The kit includes filter and safety devices except safety valve, manometer, expansion vessel and fuel relief valve.
