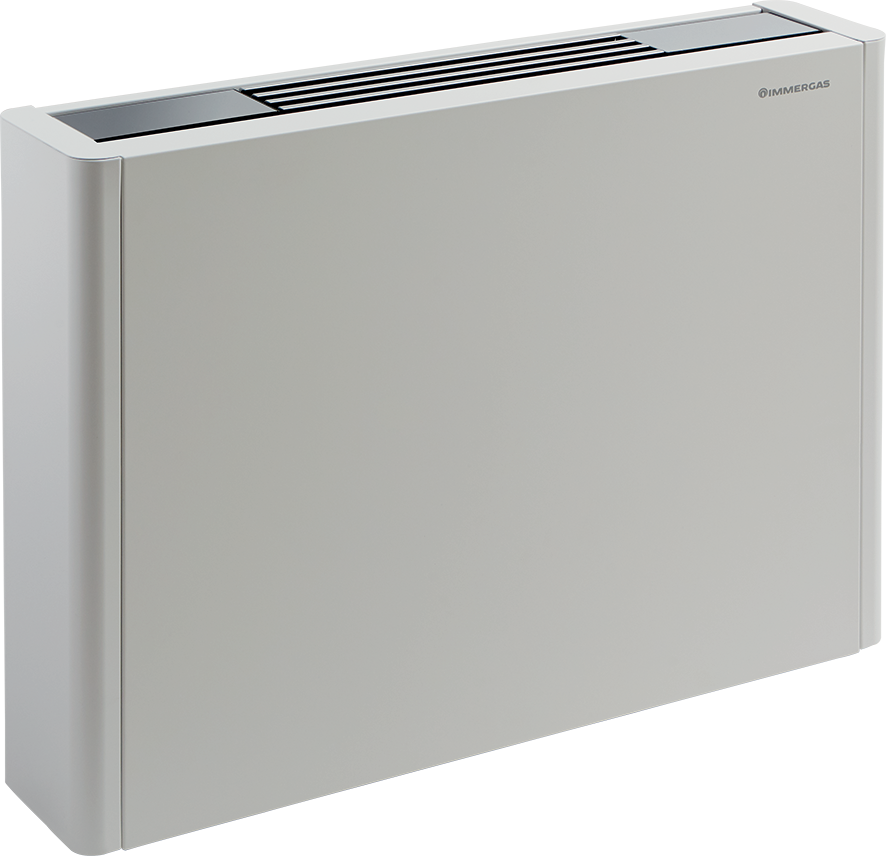

HYDRO FS 400
Fancoil Units
Floor standing hydronic fancoil
- Ideal for new buildings
- New modern design
- Heating and cooling
The customer service provides prompt answers within 24 hours.
HYDRO FS 400

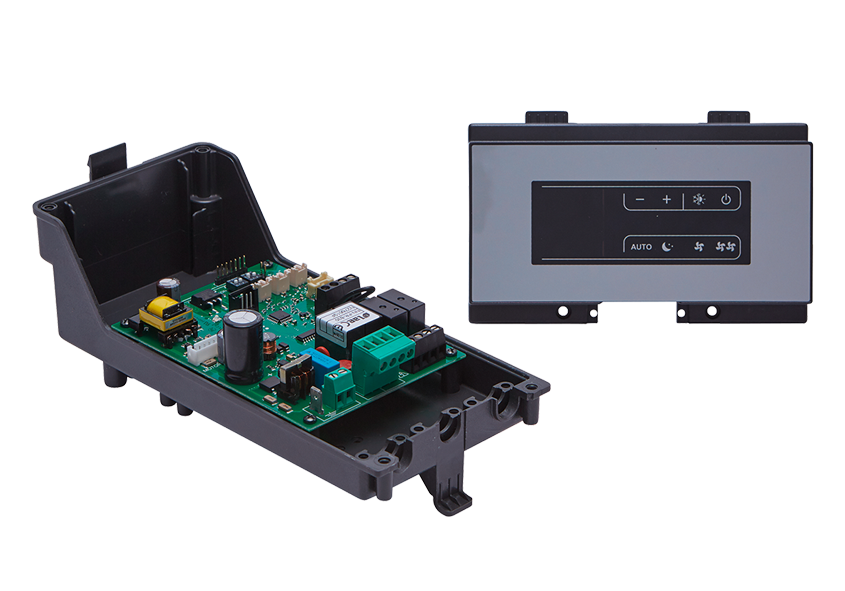

Kit termoregolazione modulante

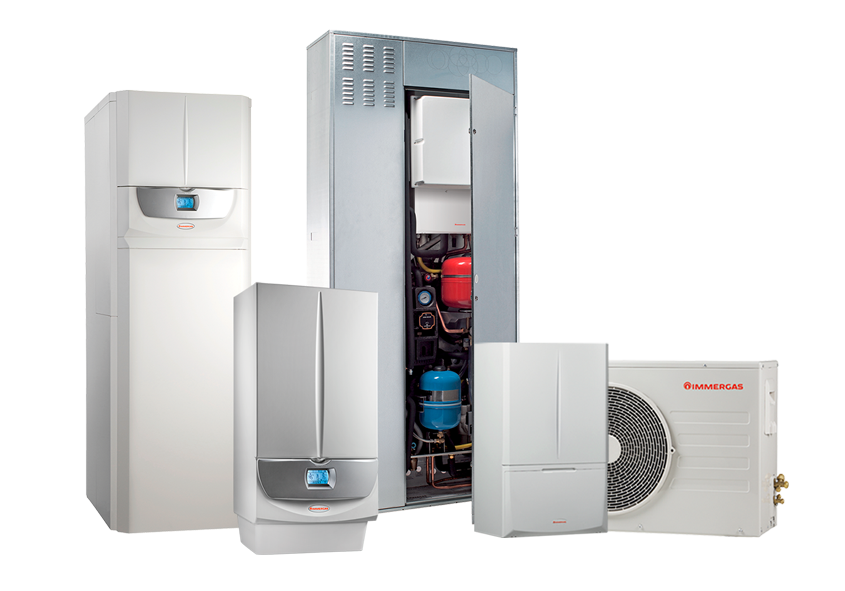

Gamma sistemi ibridi

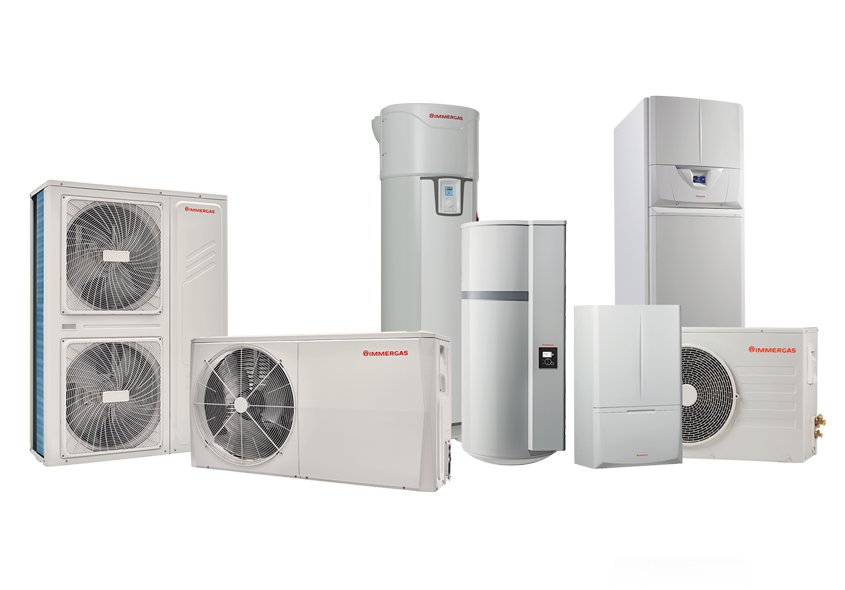

Gamma pompe di calore
Documentation
Catalogue
| Technical data HYDRO FS 400 | |
|---|---|
| Code | 3.028501 |
| Heating output max speed 45/40 °C kW | 2,17 |
| Cooling output max speed 7/12 °C kW | 1,77 |
| Dimensions (HxWxD) mm | 579 x 935 x 150 |
| Flow rate 7/12 °C l/h | 304 |
| Weight (kg) | 20,0 |
Product presentation
The range of fancoils for floor level installation particularly suitable residential and commercial buildings.
- Elegant aesthetics with white painted casing
- Reduced depth for integration into any living context
- Flow and return connections on the left side (with possibility of reversing to the right)
- Bottom air intake (with a minimum level of respect - 80 mm from the floor)
- Very low sound impact thanks to the tangential fan and the DC INVERTER motor
- Installation template and wall brackets as standard
- Flat adapters as standard and 3/4" hydraulic connections
