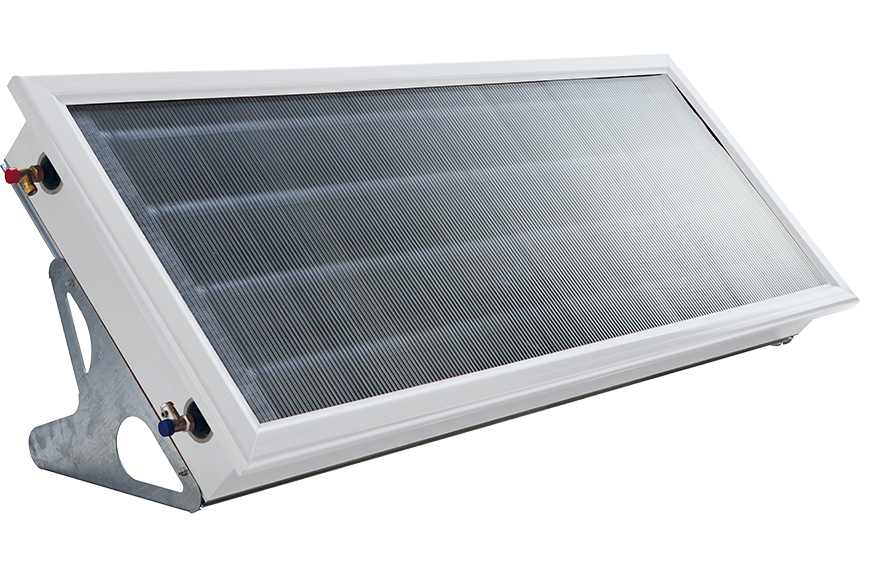

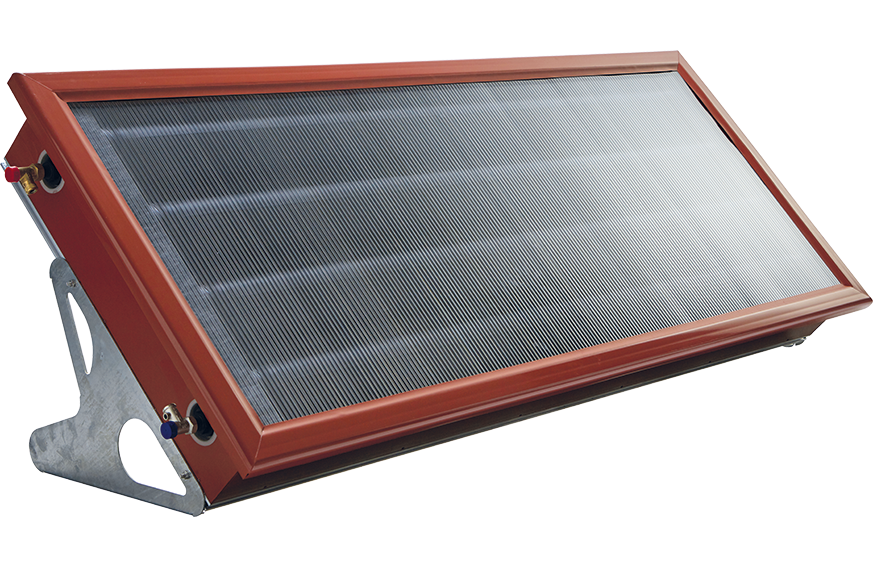

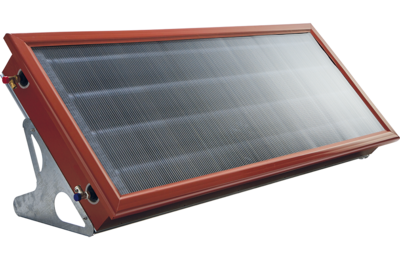

SOLARSMART 110 R
Thermal Solar System
Solar pack with natural circulation with flat-plate
collector and integrated storage tank unit
Documentation
Catalogue
| Technical data SOLARSMART 110 R | |
|---|---|
| Code | 3.029660 |
| Number collectors | 1 |
| Gross Surface (m2) | 1,52 |
| Storage Tank (litres) | 105 |
| Empty Weight (kg) | 36 |
| Dimensions (W x D x H) mm | 2136 x 711 x 220 |
| Frame color | roof tile |
Product presentation
SOLARSMART includes as per standard:
- horizontal installation solution
- PVC aesthetic frame (lightness, impact and UV rays resistance)
- integrated storage tank unit consisting of stainless steel cylinders
- Solar collection area in alveolar polycarbonate (unbreakable, light, no condensation effect and reduced losses)
- 5 bar safety valve (DHW circuit)
- fixing system for sloped roofs (on roof) and freestanding installation on flat roofs or on the ground*
- PVC collector cover

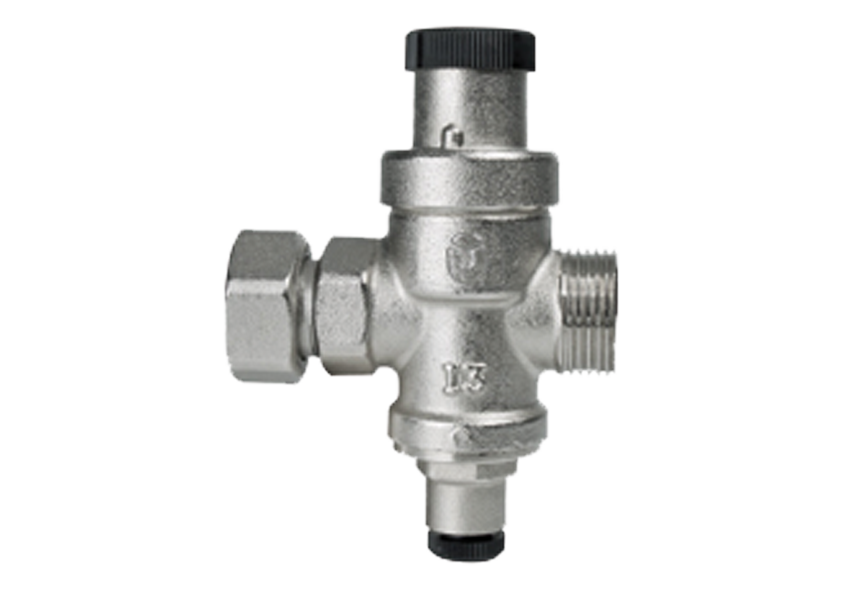

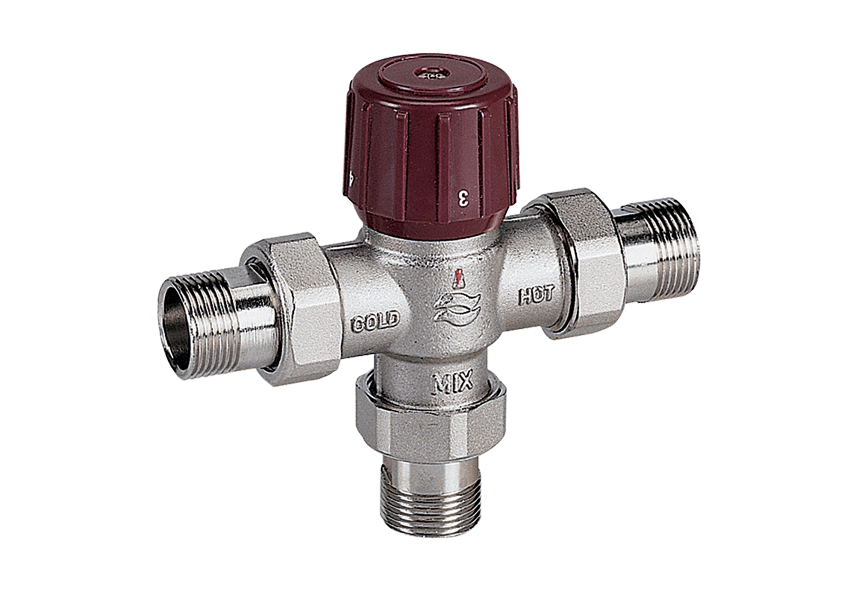

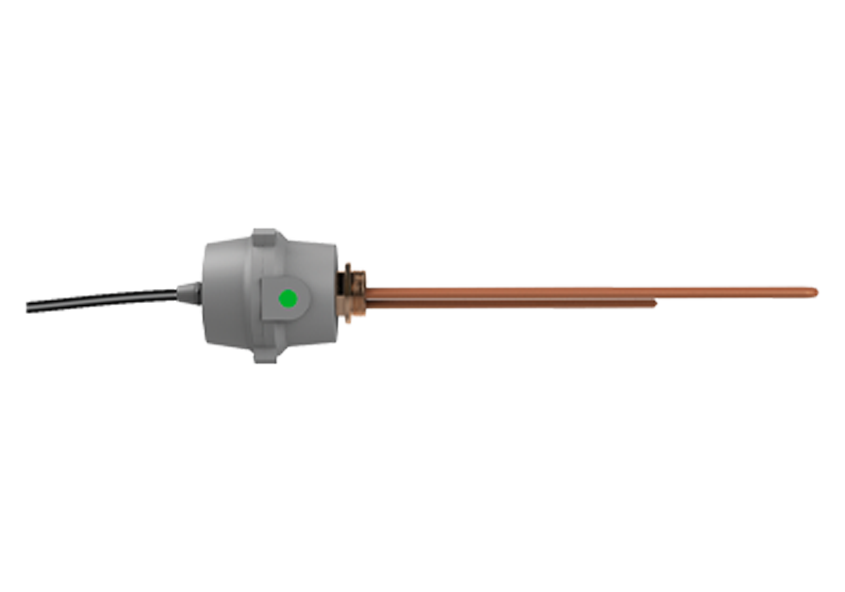

Components SOLARSMART 110 R
