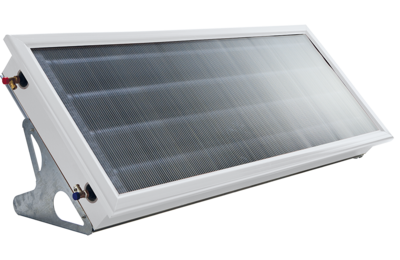

SOLARSMART 220
Solar pack with natural circulation with flat-plate
collector and integrated storage tank unit
collector and integrated storage tank unit
The customer service provides
prompt answers within 24 hours.
prompt answers within 24 hours.
Technical data SOLARSMART 220 |
|
|---|---|
| Code | 3.029665 |
| Number collectors | 1 |
| Gross Surface (m2) | 2,77 |
| Storage Tank (litres) | 210 |
| Empty Weight (kg) | 57 |
| Dimensions (W x D x H) mm | 2136 x 1296 x 220 |
| Frame color | white |
Technical data SOLARSMART 220 |
|
|---|---|
| Code | 3.029665 |
| Number collectors | 1 |
| Gross Surface (m2) | 2,77 |
| Storage Tank (litres) | 210 |
| Empty Weight (kg) | 57 |
| Dimensions (W x D x H) mm | 2136 x 1296 x 220 |
| Frame color | white |
Gallery
SOLARSMART includes as per standard:
- horizontal installation solution
- PVC aesthetic frame (lightness, impact and UV rays resistance)
- integrated storage tank unit consisting of stainless steel cylinders
- Solar collection area in alveolar polycarbonate (unbreakable, light, no condensation effect and reduced losses)
- 5 bar safety valve (DHW circuit)
- fixing system for sloped roofs (on roof) and freestanding installation on flat roofs or on the ground*
- PVC collector cover

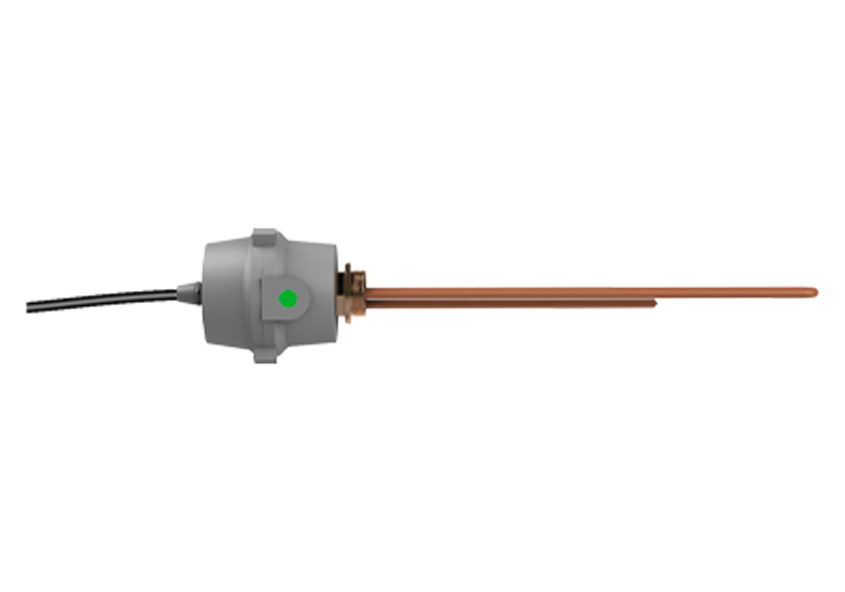

Antifreeze electric heater 300 W Cod.3.029920
(for external temperatures from 0 °C to -13 °C).
For SOLARSMART.
Integration electric heater 1 kW Cod.3.029921
Recommended when SOLARSMART is directly connected
to user.
For SOLARSMART.
Integration electric heater 2 kW Cod.3.029922
Recommended when SOLARSMART is directly connected
to user.
For SOLARSMART.

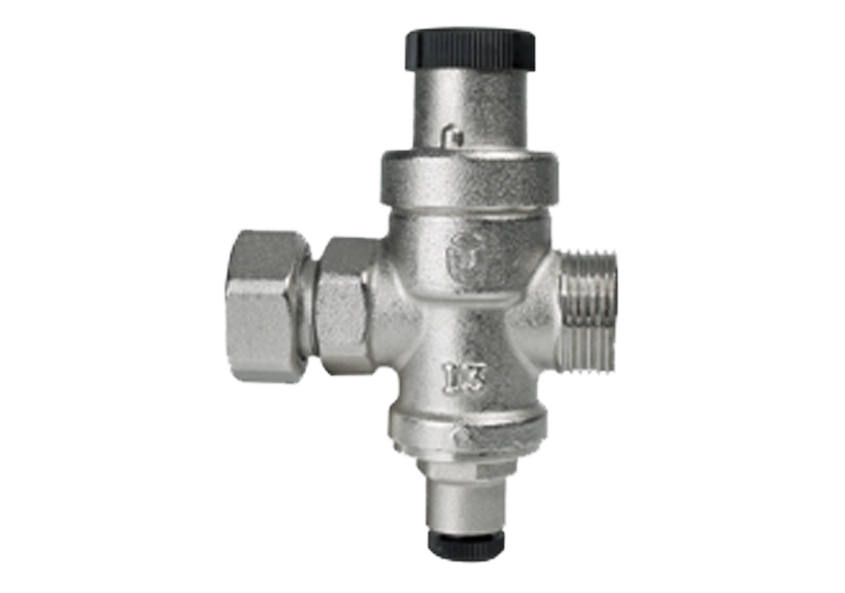

Pressure reducer kit Cod.3.029919
Connection ¾". 3 bar setting.
For SOLARSMART.
For SOLARSMART.

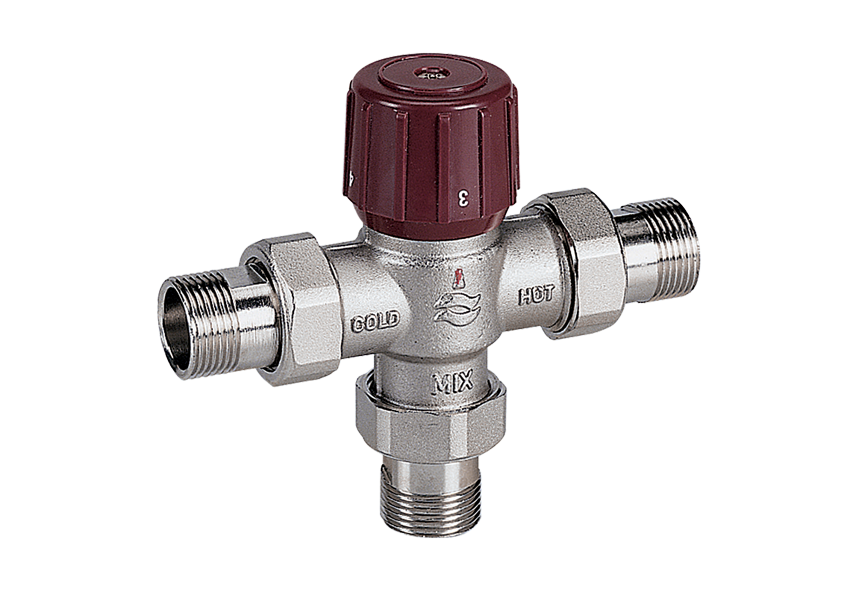

¾" Mixing valve Cod.3.019099
Range 42-60 °C.
The kit includes:
1 thermostatic mixing valve with a 42 °C - 60 °C adjustment range and maximum inlet temperature of 90 °C.
The kit includes:
1 thermostatic mixing valve with a 42 °C - 60 °C adjustment range and maximum inlet temperature of 90 °C.
Available for: VICTRIX Superior TOP, VICTRIX, MAIOR EOLO, NIKE Mini 28 kW Special, MINI NIKE/EOLO, NIKE/EOLO Star, CAESAR 14 and Super CAESAR 17.
SOLARSMART includes as per standard:
- horizontal installation solution
- PVC aesthetic frame (lightness, impact and UV rays resistance)
- integrated storage tank unit consisting of stainless steel cylinders
- Solar collection area in alveolar polycarbonate (unbreakable, light, no condensation effect and reduced losses)
- 5 bar safety valve (DHW circuit)
- fixing system for sloped roofs (on roof) and freestanding installation on flat roofs or on the ground*
- PVC collector cover
Antifreeze electric heater 300 W Cod.3.029920
(for external temperatures from 0 °C to -13 °C).
For SOLARSMART.
Integration electric heater 1 kW Cod.3.029921
Recommended when SOLARSMART is directly connected
to user.
For SOLARSMART.
Integration electric heater 2 kW Cod.3.029922
Recommended when SOLARSMART is directly connected
to user.
For SOLARSMART.
Pressure reducer kit Cod.3.029919
Connection ¾". 3 bar setting.
For SOLARSMART.
For SOLARSMART.
¾" Mixing valve Cod.3.019099
Range 42-60 °C.
The kit includes:
1 thermostatic mixing valve with a 42 °C - 60 °C adjustment range and maximum inlet temperature of 90 °C.
The kit includes:
1 thermostatic mixing valve with a 42 °C - 60 °C adjustment range and maximum inlet temperature of 90 °C.
Available for: VICTRIX Superior TOP, VICTRIX, MAIOR EOLO, NIKE Mini 28 kW Special, MINI NIKE/EOLO, NIKE/EOLO Star, CAESAR 14 and Super CAESAR 17.
Related products
SOLARSMART 260
Solar pack with natural circulation with flat-plate
collector and integrated storage tank unit
collector and integrated storage tank unit
SOLARSMART 150
Solar pack with natural circulation with flat-plate
collector and integrated storage tank unit
collector and integrated storage tank unit

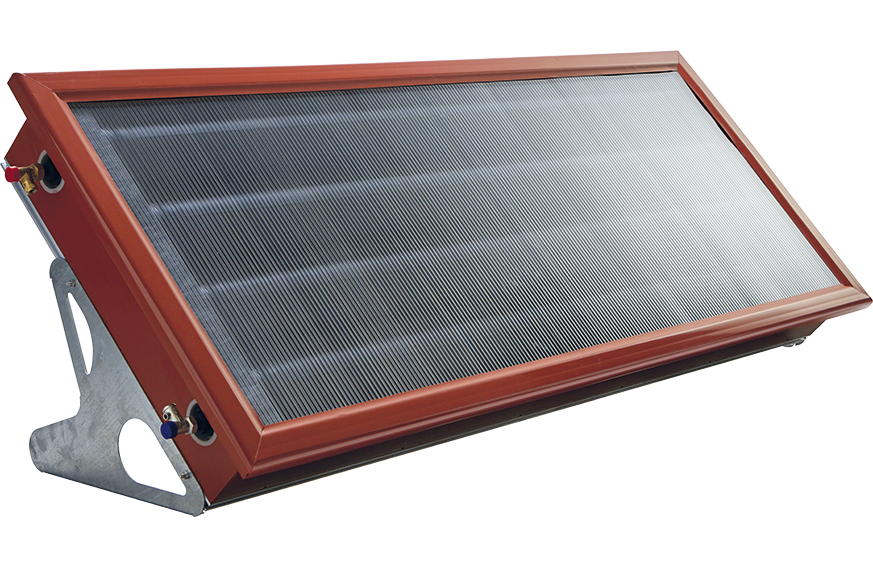

SOLARSMART 220 R
