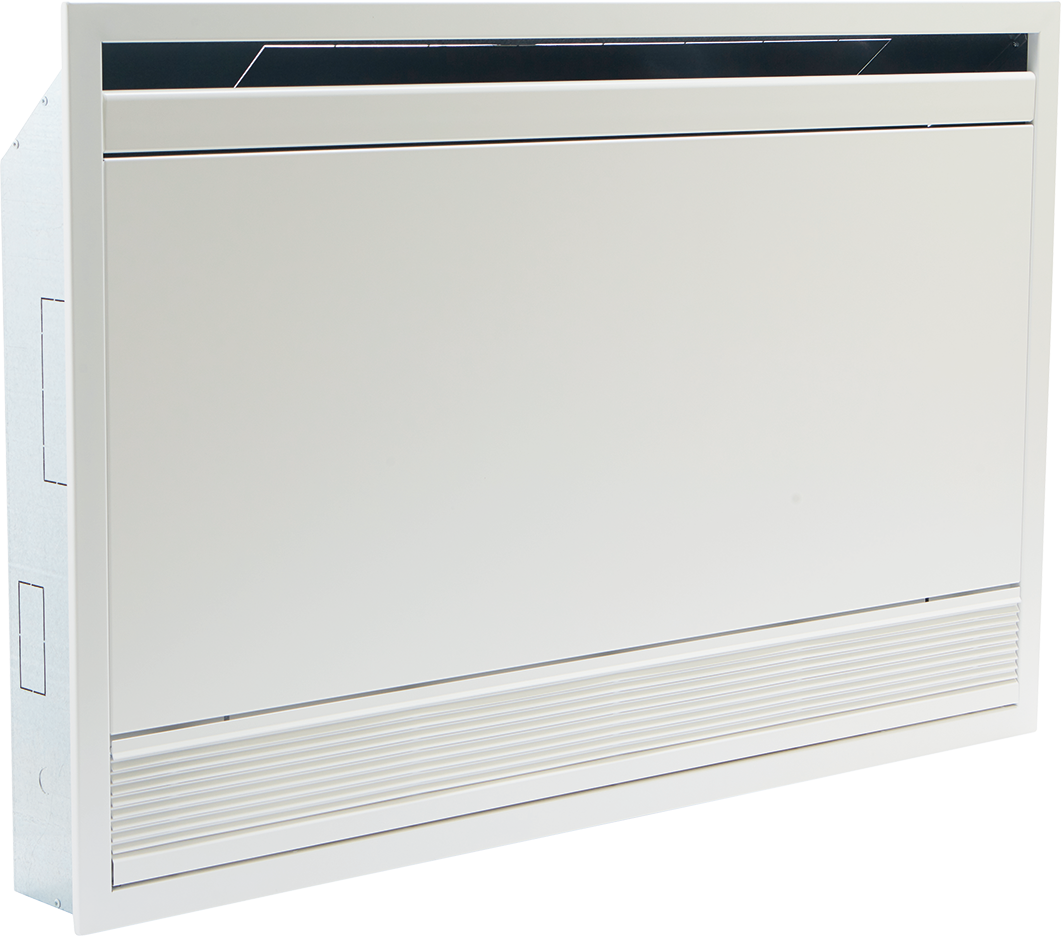

HYDRO IN 800
Fancoil Units
Wall and ceiling built-in hydronic fancoil
- More internal comfort
- Maximum installation flexibility
- Heating and cooling
The customer service provides prompt answers within 24 hours.
HYDRO IN 800

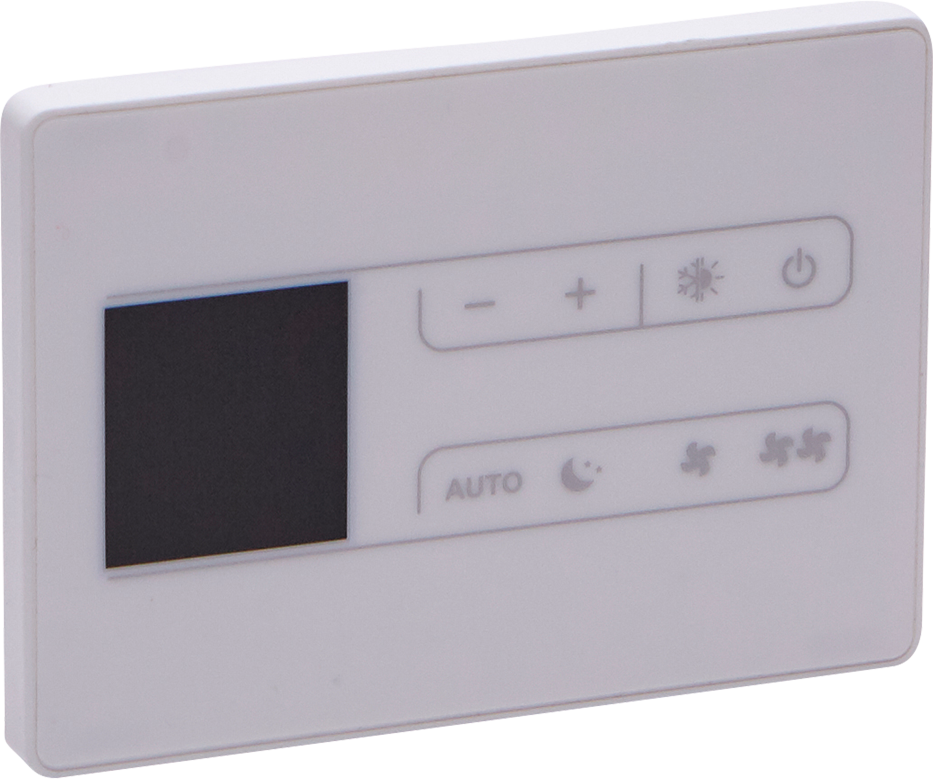

Kit pannello comandi a muro modulante

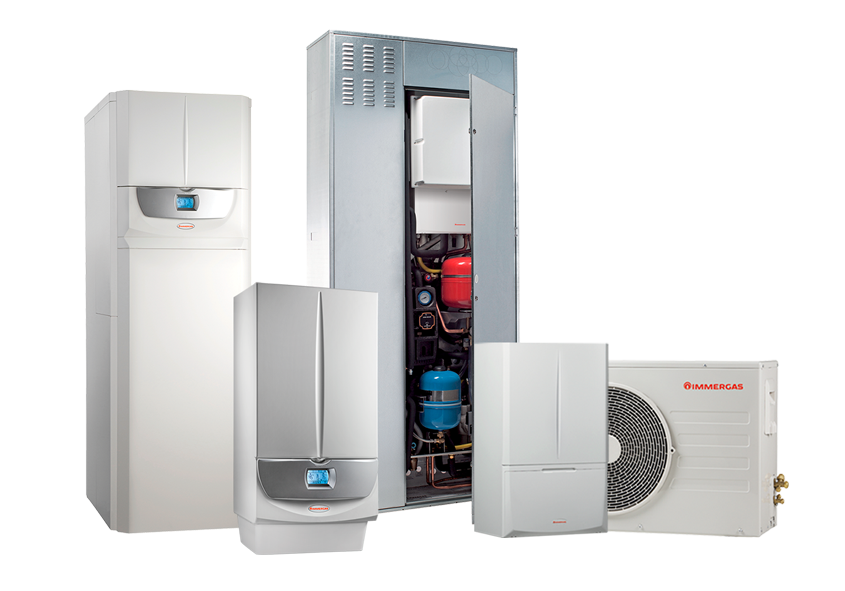

Gamma sistemi ibridi

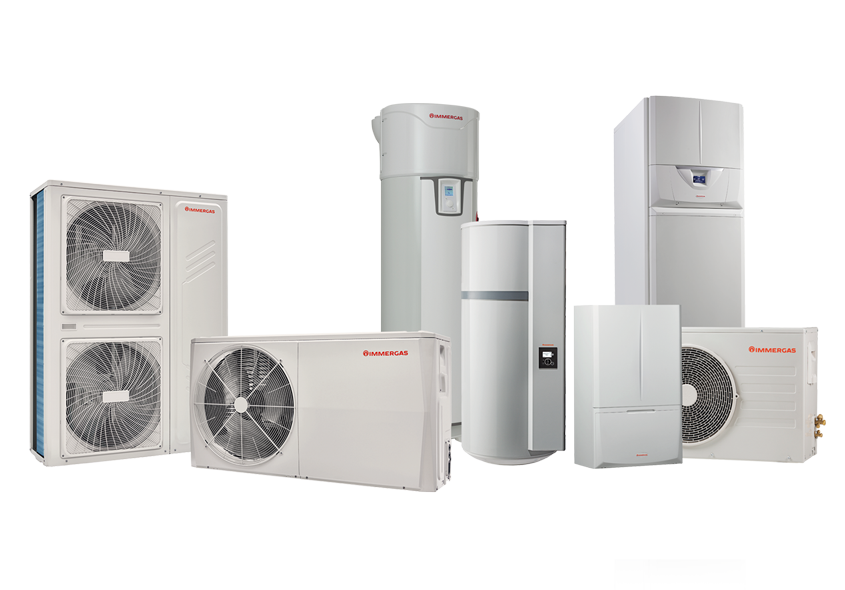

Gamma pompe di calore
Documentation
Catalogue
| Technical data HYDRO IN 800 | |
|---|---|
| Code | 3.029844 |
| Heating output max speed 45/40 °C kW | 3,88 |
| Cooling output max speed 7/12 °C kW | 3,20 |
| Dimensions (HxWxD) mm | 655 x 1125 x 126 |
| Flow rate 7/12 °C l/h | 551 |
| Weight (kg) | 18,0 |
Product presentation
Suitable for wall, ceiling or false ceiling built-in installation thanks to the reduced depth. They adapt in any living context, even in bedrooms, for their remarkable silence.
- Reduced aesthetic impact
- Flow and return connections on the left side (with possibility of inversion to the right)
- Respond to every design requirement (on the wall, ceiling, in false ceiling)
- Very low sound impact thanks to the tangential fan and the DC INVERTER motor
- Flat adapters as standard and 3/4" hydraulic connections
- Balancing valves as standard
- Availability of numerous accessories
- Condensate collection system for vertical or horizontal installation as standard
