MAGIS PRO 4 V2 with TRIO V2: PRO SYSTEM
Hydronic group for two zones plants and DHW production
Split type heat pump only solution with outdoor unit and indoor hydronic unit
The customer service provides
prompt answers within 24 hours.
prompt answers within 24 hours.
Ideal for new buildings
Standard thermoregulation
Heating and cooling
Technical data MAGIS PRO 4 V2 with TRIO V2: PRO SYSTEM |
|
|---|---|
| Code | 3.030606 |
| DHW storage tank (litres) | 160 |
| Plant zones (n.) | 1 direct and 1 mixed |
Technical data MAGIS PRO 4 V2 with TRIO V2: PRO SYSTEM |
|
|---|---|
| Code | 3.030606 |
| DHW storage tank (litres) | 160 |
| Plant zones (n.) | 1 direct and 1 mixed |
Gallery
COMPLETE SYSTEM WITH RENEWABLES
Heating in winter, cooling in summer and domestic hot water all year round. TRIO V2 are the
hydronic units designed to combine different energy sources: renewable and conventional.
GREAT VERSATILITY
Thanks to the versatility of TRIO, professionals can set up different systems, choosing the one that best suits
the building. It is designed to combine with condensing boilers, air-water heat pumps and solar thermal. This
makes possible to create different system solutions and to adapt to the available energy sources.
REDUCED SPACE REQUIREMENTS
The TRIO V2 solutions offer complete units in a limited space: they can be installed in the recessed
frame SOLAR CONTAINER or directly inside the home in the special technical box DOMUS CONTAINER.

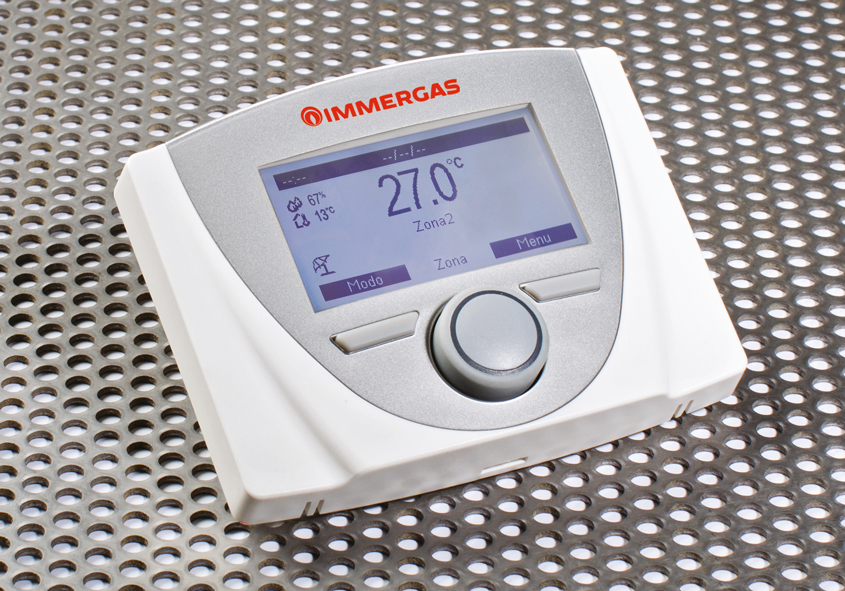

STANDARD REMOTE PANEL
TRIO comes with a wide-display panel for easy reading of parameter settings to let you control the system
from a remote location, manage the various configurations of the system and check temperature and
humidity in an area.
Heating in winter, cooling in summer and domestic hot water all year round. TRIO V2 are the
hydronic units designed to combine different energy sources: renewable and conventional.
GREAT VERSATILITY
Thanks to the versatility of TRIO, professionals can set up different systems, choosing the one that best suits
the building. It is designed to combine with condensing boilers, air-water heat pumps and solar thermal. This
makes possible to create different system solutions and to adapt to the available energy sources.
REDUCED SPACE REQUIREMENTS
The TRIO V2 solutions offer complete units in a limited space: they can be installed in the recessed
frame SOLAR CONTAINER or directly inside the home in the special technical box DOMUS CONTAINER.
STANDARD REMOTE PANEL
TRIO comes with a wide-display panel for easy reading of parameter settings to let you control the system
from a remote location, manage the various configurations of the system and check temperature and
humidity in an area.
CRONO 7 (weekly digital chronothermostat) Cod.3.021622
ON/OFF room thermostat.
CRONO 7 WIRELESS (wireless weekly digital chronothermostat) Cod.3.021624
Wireless ON/OFF room thermostat.
DOMINUS interface kit Cod.3.026273
To control heat pumps or hybrid systems and display operation data by means DOMINUS App.
Installed before your modem/router wireless (not supplied by Immergas), you can communicate with the appliance circuit board from any location.
External probe Cod.3.015266
For single installation of VICTRIX PRO V2.
For MAGIS COMBO V2, MAGIS PRO V2, MAGIS COMBO PLUS V2, MAGIS HERCULES PRO, MAGIS HERCULES PRO MINI/EH, MAGIS HERCULES MINI HYDRO, TRIO PACK ELECTRIC, TRIO HYDRO system ELECTRIC and MAGIS M/EH.
Low temperature safety thermostat kit Cod.3.019229
For generators settled up with low temperature
Mod-bus temperature and humidity sensor Cod.3.030992
To be used with radiant systems that also work in cooling mode
Remote Control Panel Cod.3.030863
Modulating chronotermostat, remote control with temperature/humidity sensor
Room hygrostat Cod.3.023302
To be used with radiant systems that also work in cooling mode.
Storage tank NTC probe Cod.3.019375
Allows to check the DHW temperature of a Storage Tank Unit or puffer
Provided as per standard on all Storage Tank Units in the catalogue.
1,5 kW sanitary electric resistance Cod.3.024897
3 kW integration electric resistance kit for MAGIS PRO V2 Cod.3.030991
For heat pump only plants with MAGIS PRO V2, 3 kW (to be installed inside of the hydronic unit).
Electric power supply 230V-50Hz single phase + earthing
Aesthetic upper cover DOMUS CONTAINER Cod.3.027175
Anti freeze protection kit -15 °C Cod.3.017324
Anti freeze protection kit -15 °C
For TT versions, VICTRIX SUPERIOR/PLUS, VICTRIX ZEUS, VICTRIX EXA, TERA VIP, VICTRIX TERA/PLUS, OMNIA, MAGIS PRO V2 and MAGIS COMBO V2.
Bottom connection kit Cod.3.020575
To be installed inside of DOMUS CONTAINER or SOLAR CONTAINER.
Bracket kit for wall mounting 75 inertial storage tank Cod.3.027290
Bracket kit for wall mounting inertial storage tank 75 litres code 3.027288.
Buffer tank 15 litres Cod.3.026304
to be installed in CONTAINER or DOMUS CONTAINER
DOMUS CONTAINER (technical box) Cod.3.022167
Technical box for solutions TRIO V2 and TRIO MONO V2.
is the first of the main components of TRIO V2/TRIO MONO V2 systems for indoor installations. It allows the housing of the main components (except for the AUDAX heat pump).
It blends easily into any room and does not require no brickwork for subsequent installation of generators, hydraulic components and flues (if any).
Front opening enables total system maintenance.
Dimensions (H x W x D) mm 2110 x 975 x 365
Dehumidifier back frame kit Cod.3.022146
Dehumidifier front grille kit Cod.3.022147
Dehumidifier kit Cod.3.021529
Only for recessed installation with codes 3.022146 and 3.022147
External cover kit with acoustical insulation for ZENITAIR-MONO Cod.3.030636
Anti-insect net and anti-wind in pre-painted steel, alternative to the one available with ZENITAIR-MONO.
HYDRO 3 V2 Cod.3.033625
Wall-hung hydronic fancoil with LCD remote control and 3-way valve with micro switch on-off, as standard
HYDRO 4 V2 Cod.3.033626
Wall-hung hydronic fancoil with LCD remote control and 3-way valve with micro switch on-off, as standard
HYDRO FS 200 Cod.3.028500
Floor standing hydronic fancoil
HYDRO FS 400 Cod.3.028501
Floor standing hydronic fancoil
HYDRO FS 600 Cod.3.028502
Floor standing hydronic fancoil
HYDRO FS 800 Cod.3.028503
Floor standing hydronic fancoil
HYDRO FS 1000 Cod.3.028505
Floor standing hydronic fancoil
Lateral connection kit Cod.3.020574
To be installed inside of DOMUS CONTAINER or SOLAR CONTAINER.
MAGIS PRO connection kit Cod.3.026303
For TRIO V2/MONO V2 with MAGIS PRO V2.
includes: hydraulic and gas R410A and R32 fittings, support bracket for indoor unit of MAGIS PRO and NTC probe for storage tank.
Rear connection kit Cod.3.020630
To be installed inside of DOMUS CONTAINER or SOLAR CONTAINER.
Recessed buffer tank 50 litres Cod.3.027709
for installations above or at the side of the container
SOLAR CONTAINER (recessed frame) Cod.3.020166
Recessed frame for solutions TRIO V2 and TRIO MONO V2.
is the first of the main components of TRIO V2/TRIO MONO V2 systems.
It allows the housing of the main components (except for the AUDAX heat pump.
It can be ordered and installed during the building planning stage and provides the installer with all the system features for subsequent installation of generators, hydraulic parts and flues (if any).
Front access enables total maintenance of the system.
Dimensions (H x W x D) mm 2200 x 950 x 350
Solar kit Cod.3.024719
Composed by: plate heat exchanger, single solar pump station (with
low consumption circulation pump), solar central unit, connection
pipes,12 litre solar expansion vessel, temperature probes (for
collectors and storage tank).
low consumption circulation pump), solar central unit, connection
pipes,12 litre solar expansion vessel, temperature probes (for
collectors and storage tank).
Vertical inertial storage tank 75 litre Cod.3.027288
Wall-hung (with bracket option kit) or floor-standing installation.
Wall mounting brackets for external unit Cod.3.034758
For outdoor unit of MAGIS COMBO V2, MAGIS COMBO PLUS V2, TRIO PACK, TRIO HYDRO, MAGIS HERCULES PRO, MAGIS PRO V2, MAGIS HERCULES PRO MINI, MAGIS HERCULES MINI HYDRO, THOR, GOTHA and MULTI 18-27.
ZENITAIR MONO Cod.3.030601
Decentralised mechanical ventilation unit, easy to install, with alternate flow and heat recovery core.
Multifunction remote controller, with LCD display to visualise the status of the unit supplied as standard.
