MAGIS COMBO 6 PLUS V2
Spilt type reversible air-to-water inverter hybrid heat pump composed by an outdoor condensing unit and a indoor hydronic condensing unit.
The customer service provides
prompt answers within 24 hours.
prompt answers within 24 hours.
Noiseless
Easy installation
Heating and cooling
Technical data MAGIS COMBO 6 PLUS V2 |
|
|---|---|
| Code | 3.030617 |
| C.H. Energy class at 55 °C | A++ |
| C.H. Energy class at 35 °C | A+++ |
| Heating output kW | 6,00 |
| Cooling output kW | 6,50 |
| Indoor Unit (HxWxD) mm | 787 x 440 x 400 |
| Outdoor Unit (HxWxD) mm | 638 x 880 x 364 |
| Refrigerant gas | R32 |
| COP | 4,92 |
| EER | 4,42 |
| Indoor Unit weight (kg) | 47,5 |
| Outdoor Unit weight (kg) | 55,8 |
Technical data MAGIS COMBO 6 PLUS V2 |
|
|---|---|
| Code | 3.030617 |
| C.H. Energy class at 55 °C | A++ |
| C.H. Energy class at 35 °C | A+++ |
| Heating output kW | 6,00 |
| Cooling output kW | 6,50 |
| Indoor Unit (HxWxD) mm | 787 x 440 x 400 |
| Outdoor Unit (HxWxD) mm | 638 x 880 x 364 |
| Refrigerant gas | R32 |
| COP | 4,92 |
| EER | 4,42 |
| Indoor Unit weight (kg) | 47,5 |
| Outdoor Unit weight (kg) | 55,8 |
Gallery
Split air to water, inverter-driven monophase hybrid heat pump system, consisting of outdoor heat pump unit and indoor hydronic and condensing unit.
The new MAGIS COMBO V2 hybrid heat pumps are appliances designed to use outside air as a partially renewable heat source by transferring its thermal energy content to the central heating system. MAGIS COMBO V2 is the hybrid heat pump that heats, cools and produces hot water with an internal condensing unit designed to meet the highest demands, its heating temperature can reach up to 80 °C.
For installation it's necessary the degree of training required to professional people (that have to be in possess of F-GAS certification) involved in the installation and their mutual connection by means of the gas circuit. The inverter driven control allows a very fine power output modulation control, together with reduction of the power input, succeeding in high level performances for more comfortable indoor climatic conditions.
MAGIS COMBO V2 are domestic-purpose-suit systems, and they are the ideal solution in new, high energy rating buildings, even when located in extremely cold areas, with very low outdoor-winter-temperatures.

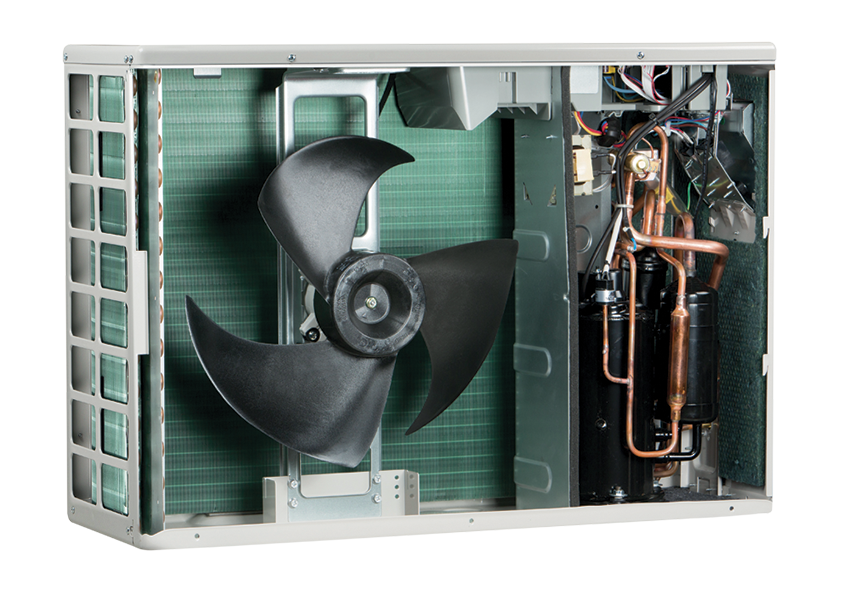

The very compact external unit (smaller compared to the most diffused hydronic heat pump models), installable both on balcony and fully outdoor, allows to MAGIS COMBO V2 enhanced positional flexibility together with a minimal aestethic effect on the overall style.
MAGIS COMBO V2 is ideal for combination with photovoltaic systems.
2 relays board kit Cod.3.026302
To be installed for the deumidifiers management without in absence of system manager kit.
Dedicated to MAGIS PRO V2 and MAGIS COMBO V2
CRONO 7 (weekly digital chronothermostat) Cod.3.021622
ON/OFF room thermostat.
CRONO 7 WIRELESS (wireless weekly digital chronothermostat) Cod.3.021624
Wireless ON/OFF room thermostat.
DOMINUS interface kit Cod.3.026273
To control heat pumps or hybrid systems and display operation data by means DOMINUS App.
Installed before your modem/router wireless (not supplied by Immergas), you can communicate with the appliance circuit board from any location.
External probe Cod.3.015266
For single installation of VICTRIX PRO V2.
For MAGIS COMBO V2, MAGIS PRO V2, MAGIS COMBO PLUS V2, MAGIS HERCULES PRO, MAGIS HERCULES PRO MINI/EH, MAGIS HERCULES MINI HYDRO, TRIO PACK ELECTRIC, TRIO HYDRO system ELECTRIC and MAGIS M/EH.
GSM telephonic control Cod.3.017182
For buildings not equipped with telephone network.
Low temperature safety thermostat kit Cod.3.019229
For generators settled up with low temperature

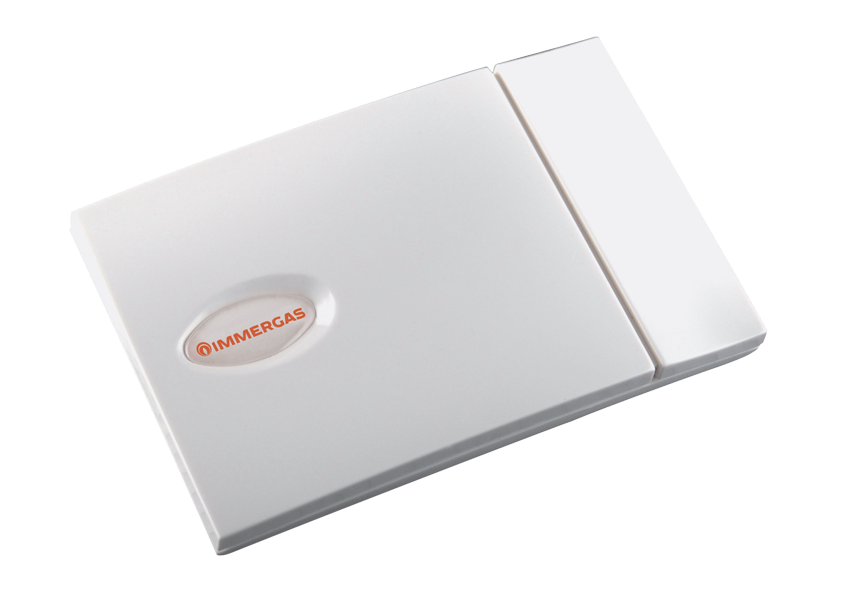

Mod-bus temperature and humidity sensor Cod.3.030992
To be used with radiant systems that also work in cooling mode
Relay board kit Cod.3.015350
Allows interface between zone valves and CAR V2 or SUPER CAR, to send an alarm signal, to manage external pump etc.
To be installed inside internal unit both in MAGIS COMBO V2 and MAGIS PRO V2
Remote Control Panel Cod.3.030863
Modulating chronotermostat, remote control with temperature/humidity sensor
Room hygrostat Cod.3.023302
To be used with radiant systems that also work in cooling mode.
Storage tank NTC probe Cod.3.019375
Allows to check the DHW temperature of a Storage Tank Unit or puffer
Provided as per standard on all Storage Tank Units in the catalogue.
System controller Cod.3.021522
Class of device VI* or VIII
Contribution to the environmental heating seasonal energy efficiency 4%* or 5%
* as standard
System delivery probe kit Cod.3.030913
Telephonic control Cod.3.013305
For buildings equipped with telephone network.
1 extension pipe Ø 80 2 m long Cod.3.016837
for VICTRIX PRO 35/55/60/68/80 V2
1 extension pipe Ø 80 2 m long Cod.3.016837
for condensing boilers
4 extension pipes Ø 80 kit 0,5 m long Cod.3.014642
for condensing boilers
4 x 90° bends Ø 80 kit Cod.3.012091
for condensing boilers
45° bend Ø 60/100 kit Cod.3.012095
For condensing boiler < 35 kW.
45° bend Ø 80 kit Cod.3.012092
for condensing boilers
90° bend Ø 60/100 kit Cod.3.012093
For condensing boiler < 35 kW.
Anti-wind vertical terminal kit Ø 80 Cod.3.021721
For condensing boiler < 35 kW.
Concentric horizontal complete kit Ø 60/100 Cod.3.012000
Max lenght 12,9 m.
For condensing boiler < 35 kW.
Concentric vertical complete kit Ø 60/100 (red ocher colour) Cod.3.016833
for condensing boilers < 35 kW.
Extension pipe kit Ø 60/100 0,5 m long Cod.3.014643
For condensing boiler < 35 kW.
Extension pipe kit Ø 60/100 1 m long Cod.3.012089
For condensing boiler < 35 kW.
Flanged stub-pipe + bend + extension pipe Ø 80 for flue discharge Cod.3.016365
For condensing boilers < 35 kW.
Gasket kit Ø 125 Cod.3.015345
Gasket kits 10 pcs. Ø 80 Ø 80 Cod.3.015378
Gasket kits 10 pcs. Ø 80 Ø 80/125 Cod.3.015343
Horizontal concentric complete kit Ø 60/100 Short Cod.3.024598
Max lenght 11,9 m.
For condensing boiler < 35 kW.
Horizontal concentric complete kit Ø 60/100 with swivel terminal Cod.3.024267
Max lenght 9,9 m.
For condensing boiler < 35 kW except HP models.
Twin pipes complete kit Ø 80/80 Cod.3.012002
for condensing boilers < 35 kW and VICTRIX PRO 35/55/60/68/80 V2 (color RAL 9010)
3-way valve kit Cod.3.020632
Anti freeze protection kit -15 °C Cod.3.017324
Anti freeze protection kit -15 °C
For TT versions, VICTRIX SUPERIOR/PLUS, VICTRIX ZEUS, VICTRIX EXA, TERA VIP, VICTRIX TERA/PLUS, OMNIA, MAGIS PRO V2 and MAGIS COMBO V2.
Anti freeze protection kit -15 °C Cod.3.031804
Anti freeze protection kit -15 °C
For TT versions, VICTRIX SUPERIOR/PLUS, VICTRIX ZEUS, VICTRIX EXA, TERA VIP, VICTRIX TERA/PLUS, OMNIA, MAGIS PRO V2 and MAGIS COMBO V2.
Bracket kit for wall mounting 75 inertial storage tank Cod.3.027290
Bracket kit for wall mounting inertial storage tank 75 litres code 3.027288.
Condensate discharge pump kit Cod.3.026374
For wall-hung boilers: compact condensate drain pump kit.
Condensate neutralizer kit Cod.3.019857
Necessary to neutralize the acidity of the condensation. Inclusive of granulate.
Connection kit for R32 circuit for MAGIS PRO V2 and MAGIS COMBO V2 Cod.3.030883
for an easy connection of the refrigerant circuit, even
in the case of pipes coming out from the wall on the
internal unit
in the case of pipes coming out from the wall on the
internal unit
Cover kit for MAGIS COMBO 4/6/9 V2 Cod.3.027082
Cover kit for MAGIS COMBO 4/6/9 V2
Dehumidifier back frame kit Cod.3.022146
Dehumidifier front grille kit Cod.3.022147
Dehumidifier kit Cod.3.021529
Only for recessed installation with codes 3.022146 and 3.022147
Distribution manifold for 1 direct and 1 mixed temperature zones Cod.3.026301
Kit to be used without system manager controller.
Dedicated to MAGIS PRO V2 4-6-9, MAGIS COMBO V2 4-6-9, MAGIS HERCULES PRO MINI and MAGIS HERCULES MINI HYDRO 5-8
Distribution manifold for 1 direct and 1 mixed temperature zones (only heating) Cod.3.032265
Dedicated to MAGIS PRO V2 4-6-9, MAGIS HERCULES PRO MINI, MAGIS COMBO V2 4-6-9 and MAGIS HERCULES MINI HYDRO 5-8
Distribution manifold for 2 direct zones (only heating) Cod.3.032264
Dedicated to MAGIS PRO V2 4-6-9, MAGIS HERCULES PRO MINI 6-9/EH and MAGIS COMBO V2 4-6-9.
For 2 direct zones (only heating)
External cover kit with acoustical insulation for ZENITAIR-MONO Cod.3.030636
Anti-insect net and anti-wind in pre-painted steel, alternative to the one available with ZENITAIR-MONO.
HYDRO 3 V2 Cod.3.033625
Wall-hung hydronic fancoil with LCD remote control and 3-way valve with micro switch on-off, as standard
HYDRO 4 V2 Cod.3.033626
Wall-hung hydronic fancoil with LCD remote control and 3-way valve with micro switch on-off, as standard
HYDRO FS 200 Cod.3.028500
Floor standing hydronic fancoil
HYDRO FS 400 Cod.3.028501
Floor standing hydronic fancoil
HYDRO FS 600 Cod.3.028502
Floor standing hydronic fancoil
HYDRO FS 800 Cod.3.028503
Floor standing hydronic fancoil
HYDRO FS 1000 Cod.3.028505
Floor standing hydronic fancoil
OMNISTOR 300 Cod.3.027910
Ideal for connection to heat pumps.
The range of new OMNISTOR stainless steel storage
tanks, is ideal to contain domestic hot water with an
inspection flange at the lower part.
The storage tanks are equipped with:
• 1 stainless steel coils water/water heat exchanger
with oversized coil
• 2 probe-supports and NTC probe for Immergas heat
pump connection
• Thermometer
• Double magnesium anode
• Suitable flexible insulation which can be
disassembled (6 cm thick on OMNISTOR 300 and 8
cm thick on OMNISTOR 500)
• Pre-arranged to fix pump station to the body of the
storage tank with option kit (maximum 4 solar flat
plate-collectors)
• Pre-arranged to double electronic anode (option)
code 3.025003
The range of new OMNISTOR stainless steel storage
tanks, is ideal to contain domestic hot water with an
inspection flange at the lower part.
The storage tanks are equipped with:
• 1 stainless steel coils water/water heat exchanger
with oversized coil
• 2 probe-supports and NTC probe for Immergas heat
pump connection
• Thermometer
• Double magnesium anode
• Suitable flexible insulation which can be
disassembled (6 cm thick on OMNISTOR 300 and 8
cm thick on OMNISTOR 500)
• Pre-arranged to fix pump station to the body of the
storage tank with option kit (maximum 4 solar flat
plate-collectors)
• Pre-arranged to double electronic anode (option)
code 3.025003
OMNISTOR 500 Cod.3.027911
Ideal for connection to heat pumps.
The range of new OMNISTOR stainless steel storage
tanks, is ideal to contain domestic hot water with an
inspection flange at the lower part.
The storage tanks are equipped with:
• 1 stainless steel coils water/water heat exchanger
with oversized coil
• 2 probe-supports and NTC probe for Immergas heat
pump connection
• Thermometer
• Double magnesium anode
• Suitable flexible insulation which can be
disassembled (6 cm thick on OMNISTOR 300 and 8
cm thick on OMNISTOR 500)
• Pre-arranged to fix pump station to the body of the
storage tank with option kit (maximum 4 solar flat
plate-collectors)
• Pre-arranged to double electronic anode (option)
code 3.025003
The range of new OMNISTOR stainless steel storage
tanks, is ideal to contain domestic hot water with an
inspection flange at the lower part.
The storage tanks are equipped with:
• 1 stainless steel coils water/water heat exchanger
with oversized coil
• 2 probe-supports and NTC probe for Immergas heat
pump connection
• Thermometer
• Double magnesium anode
• Suitable flexible insulation which can be
disassembled (6 cm thick on OMNISTOR 300 and 8
cm thick on OMNISTOR 500)
• Pre-arranged to fix pump station to the body of the
storage tank with option kit (maximum 4 solar flat
plate-collectors)
• Pre-arranged to double electronic anode (option)
code 3.025003
Vertical inertial storage tank 75 litre Cod.3.027288
Wall-hung (with bracket option kit) or floor-standing installation.
Wall mounting brackets for external unit Cod.3.034758
For outdoor unit of MAGIS COMBO V2, MAGIS COMBO PLUS V2, TRIO PACK, TRIO HYDRO, MAGIS HERCULES PRO, MAGIS PRO V2, MAGIS HERCULES PRO MINI, MAGIS HERCULES MINI HYDRO, THOR, GOTHA and MULTI 18-27.
ZENITAIR MONO Cod.3.030601
Decentralised mechanical ventilation unit, easy to install, with alternate flow and heat recovery core.
Multifunction remote controller, with LCD display to visualise the status of the unit supplied as standard.
Split air to water, inverter-driven monophase hybrid heat pump system, consisting of outdoor heat pump unit and indoor hydronic and condensing unit.
The new MAGIS COMBO V2 hybrid heat pumps are appliances designed to use outside air as a partially renewable heat source by transferring its thermal energy content to the central heating system. MAGIS COMBO V2 is the hybrid heat pump that heats, cools and produces hot water with an internal condensing unit designed to meet the highest demands, its heating temperature can reach up to 80 °C.
For installation it's necessary the degree of training required to professional people (that have to be in possess of F-GAS certification) involved in the installation and their mutual connection by means of the gas circuit. The inverter driven control allows a very fine power output modulation control, together with reduction of the power input, succeeding in high level performances for more comfortable indoor climatic conditions.
MAGIS COMBO V2 are domestic-purpose-suit systems, and they are the ideal solution in new, high energy rating buildings, even when located in extremely cold areas, with very low outdoor-winter-temperatures.
The very compact external unit (smaller compared to the most diffused hydronic heat pump models), installable both on balcony and fully outdoor, allows to MAGIS COMBO V2 enhanced positional flexibility together with a minimal aestethic effect on the overall style.
MAGIS COMBO V2 is ideal for combination with photovoltaic systems.
2 relays board kit Cod.3.026302
To be installed for the deumidifiers management without in absence of system manager kit.
Dedicated to MAGIS PRO V2 and MAGIS COMBO V2
CRONO 7 (weekly digital chronothermostat) Cod.3.021622
ON/OFF room thermostat.
CRONO 7 WIRELESS (wireless weekly digital chronothermostat) Cod.3.021624
Wireless ON/OFF room thermostat.
DOMINUS interface kit Cod.3.026273
To control heat pumps or hybrid systems and display operation data by means DOMINUS App.
Installed before your modem/router wireless (not supplied by Immergas), you can communicate with the appliance circuit board from any location.
External probe Cod.3.015266
For single installation of VICTRIX PRO V2.
For MAGIS COMBO V2, MAGIS PRO V2, MAGIS COMBO PLUS V2, MAGIS HERCULES PRO, MAGIS HERCULES PRO MINI/EH, MAGIS HERCULES MINI HYDRO, TRIO PACK ELECTRIC, TRIO HYDRO system ELECTRIC and MAGIS M/EH.
GSM telephonic control Cod.3.017182
For buildings not equipped with telephone network.
Low temperature safety thermostat kit Cod.3.019229
For generators settled up with low temperature
Mod-bus temperature and humidity sensor Cod.3.030992
To be used with radiant systems that also work in cooling mode
Relay board kit Cod.3.015350
Allows interface between zone valves and CAR V2 or SUPER CAR, to send an alarm signal, to manage external pump etc.
To be installed inside internal unit both in MAGIS COMBO V2 and MAGIS PRO V2
Remote Control Panel Cod.3.030863
Modulating chronotermostat, remote control with temperature/humidity sensor
Room hygrostat Cod.3.023302
To be used with radiant systems that also work in cooling mode.
Storage tank NTC probe Cod.3.019375
Allows to check the DHW temperature of a Storage Tank Unit or puffer
Provided as per standard on all Storage Tank Units in the catalogue.
System controller Cod.3.021522
Class of device VI* or VIII
Contribution to the environmental heating seasonal energy efficiency 4%* or 5%
* as standard
System delivery probe kit Cod.3.030913
Telephonic control Cod.3.013305
For buildings equipped with telephone network.
1 extension pipe Ø 80 2 m long Cod.3.016837
for VICTRIX PRO 35/55/60/68/80 V2
1 extension pipe Ø 80 2 m long Cod.3.016837
for condensing boilers
4 extension pipes Ø 80 kit 0,5 m long Cod.3.014642
for condensing boilers
4 x 90° bends Ø 80 kit Cod.3.012091
for condensing boilers
45° bend Ø 60/100 kit Cod.3.012095
For condensing boiler < 35 kW.
45° bend Ø 80 kit Cod.3.012092
for condensing boilers
90° bend Ø 60/100 kit Cod.3.012093
For condensing boiler < 35 kW.
Anti-wind vertical terminal kit Ø 80 Cod.3.021721
For condensing boiler < 35 kW.
Concentric horizontal complete kit Ø 60/100 Cod.3.012000
Max lenght 12,9 m.
For condensing boiler < 35 kW.
Concentric vertical complete kit Ø 60/100 (red ocher colour) Cod.3.016833
for condensing boilers < 35 kW.
Extension pipe kit Ø 60/100 0,5 m long Cod.3.014643
For condensing boiler < 35 kW.
Extension pipe kit Ø 60/100 1 m long Cod.3.012089
For condensing boiler < 35 kW.
Flanged stub-pipe + bend + extension pipe Ø 80 for flue discharge Cod.3.016365
For condensing boilers < 35 kW.
Gasket kit Ø 125 Cod.3.015345
Gasket kits 10 pcs. Ø 80 Ø 80 Cod.3.015378
Gasket kits 10 pcs. Ø 80 Ø 80/125 Cod.3.015343
Horizontal concentric complete kit Ø 60/100 Short Cod.3.024598
Max lenght 11,9 m.
For condensing boiler < 35 kW.
Horizontal concentric complete kit Ø 60/100 with swivel terminal Cod.3.024267
Max lenght 9,9 m.
For condensing boiler < 35 kW except HP models.
Twin pipes complete kit Ø 80/80 Cod.3.012002
for condensing boilers < 35 kW and VICTRIX PRO 35/55/60/68/80 V2 (color RAL 9010)
3-way valve kit Cod.3.020632
Anti freeze protection kit -15 °C Cod.3.017324
Anti freeze protection kit -15 °C
For TT versions, VICTRIX SUPERIOR/PLUS, VICTRIX ZEUS, VICTRIX EXA, TERA VIP, VICTRIX TERA/PLUS, OMNIA, MAGIS PRO V2 and MAGIS COMBO V2.
Anti freeze protection kit -15 °C Cod.3.031804
Anti freeze protection kit -15 °C
For TT versions, VICTRIX SUPERIOR/PLUS, VICTRIX ZEUS, VICTRIX EXA, TERA VIP, VICTRIX TERA/PLUS, OMNIA, MAGIS PRO V2 and MAGIS COMBO V2.
Bracket kit for wall mounting 75 inertial storage tank Cod.3.027290
Bracket kit for wall mounting inertial storage tank 75 litres code 3.027288.
Condensate discharge pump kit Cod.3.026374
For wall-hung boilers: compact condensate drain pump kit.
Condensate neutralizer kit Cod.3.019857
Necessary to neutralize the acidity of the condensation. Inclusive of granulate.
Connection kit for R32 circuit for MAGIS PRO V2 and MAGIS COMBO V2 Cod.3.030883
for an easy connection of the refrigerant circuit, even
in the case of pipes coming out from the wall on the
internal unit
in the case of pipes coming out from the wall on the
internal unit
Cover kit for MAGIS COMBO 4/6/9 V2 Cod.3.027082
Cover kit for MAGIS COMBO 4/6/9 V2
Dehumidifier back frame kit Cod.3.022146
Dehumidifier front grille kit Cod.3.022147
Dehumidifier kit Cod.3.021529
Only for recessed installation with codes 3.022146 and 3.022147
Distribution manifold for 1 direct and 1 mixed temperature zones Cod.3.026301
Kit to be used without system manager controller.
Dedicated to MAGIS PRO V2 4-6-9, MAGIS COMBO V2 4-6-9, MAGIS HERCULES PRO MINI and MAGIS HERCULES MINI HYDRO 5-8
Distribution manifold for 1 direct and 1 mixed temperature zones (only heating) Cod.3.032265
Dedicated to MAGIS PRO V2 4-6-9, MAGIS HERCULES PRO MINI, MAGIS COMBO V2 4-6-9 and MAGIS HERCULES MINI HYDRO 5-8
Distribution manifold for 2 direct zones (only heating) Cod.3.032264
Dedicated to MAGIS PRO V2 4-6-9, MAGIS HERCULES PRO MINI 6-9/EH and MAGIS COMBO V2 4-6-9.
For 2 direct zones (only heating)
External cover kit with acoustical insulation for ZENITAIR-MONO Cod.3.030636
Anti-insect net and anti-wind in pre-painted steel, alternative to the one available with ZENITAIR-MONO.
HYDRO 3 V2 Cod.3.033625
Wall-hung hydronic fancoil with LCD remote control and 3-way valve with micro switch on-off, as standard
HYDRO 4 V2 Cod.3.033626
Wall-hung hydronic fancoil with LCD remote control and 3-way valve with micro switch on-off, as standard
HYDRO FS 200 Cod.3.028500
Floor standing hydronic fancoil
HYDRO FS 400 Cod.3.028501
Floor standing hydronic fancoil
HYDRO FS 600 Cod.3.028502
Floor standing hydronic fancoil
HYDRO FS 800 Cod.3.028503
Floor standing hydronic fancoil
HYDRO FS 1000 Cod.3.028505
Floor standing hydronic fancoil
OMNISTOR 300 Cod.3.027910
Ideal for connection to heat pumps.
The range of new OMNISTOR stainless steel storage
tanks, is ideal to contain domestic hot water with an
inspection flange at the lower part.
The storage tanks are equipped with:
• 1 stainless steel coils water/water heat exchanger
with oversized coil
• 2 probe-supports and NTC probe for Immergas heat
pump connection
• Thermometer
• Double magnesium anode
• Suitable flexible insulation which can be
disassembled (6 cm thick on OMNISTOR 300 and 8
cm thick on OMNISTOR 500)
• Pre-arranged to fix pump station to the body of the
storage tank with option kit (maximum 4 solar flat
plate-collectors)
• Pre-arranged to double electronic anode (option)
code 3.025003
The range of new OMNISTOR stainless steel storage
tanks, is ideal to contain domestic hot water with an
inspection flange at the lower part.
The storage tanks are equipped with:
• 1 stainless steel coils water/water heat exchanger
with oversized coil
• 2 probe-supports and NTC probe for Immergas heat
pump connection
• Thermometer
• Double magnesium anode
• Suitable flexible insulation which can be
disassembled (6 cm thick on OMNISTOR 300 and 8
cm thick on OMNISTOR 500)
• Pre-arranged to fix pump station to the body of the
storage tank with option kit (maximum 4 solar flat
plate-collectors)
• Pre-arranged to double electronic anode (option)
code 3.025003
OMNISTOR 500 Cod.3.027911
Ideal for connection to heat pumps.
The range of new OMNISTOR stainless steel storage
tanks, is ideal to contain domestic hot water with an
inspection flange at the lower part.
The storage tanks are equipped with:
• 1 stainless steel coils water/water heat exchanger
with oversized coil
• 2 probe-supports and NTC probe for Immergas heat
pump connection
• Thermometer
• Double magnesium anode
• Suitable flexible insulation which can be
disassembled (6 cm thick on OMNISTOR 300 and 8
cm thick on OMNISTOR 500)
• Pre-arranged to fix pump station to the body of the
storage tank with option kit (maximum 4 solar flat
plate-collectors)
• Pre-arranged to double electronic anode (option)
code 3.025003
The range of new OMNISTOR stainless steel storage
tanks, is ideal to contain domestic hot water with an
inspection flange at the lower part.
The storage tanks are equipped with:
• 1 stainless steel coils water/water heat exchanger
with oversized coil
• 2 probe-supports and NTC probe for Immergas heat
pump connection
• Thermometer
• Double magnesium anode
• Suitable flexible insulation which can be
disassembled (6 cm thick on OMNISTOR 300 and 8
cm thick on OMNISTOR 500)
• Pre-arranged to fix pump station to the body of the
storage tank with option kit (maximum 4 solar flat
plate-collectors)
• Pre-arranged to double electronic anode (option)
code 3.025003
Vertical inertial storage tank 75 litre Cod.3.027288
Wall-hung (with bracket option kit) or floor-standing installation.
Wall mounting brackets for external unit Cod.3.034758
For outdoor unit of MAGIS COMBO V2, MAGIS COMBO PLUS V2, TRIO PACK, TRIO HYDRO, MAGIS HERCULES PRO, MAGIS PRO V2, MAGIS HERCULES PRO MINI, MAGIS HERCULES MINI HYDRO, THOR, GOTHA and MULTI 18-27.
ZENITAIR MONO Cod.3.030601
Decentralised mechanical ventilation unit, easy to install, with alternate flow and heat recovery core.
Multifunction remote controller, with LCD display to visualise the status of the unit supplied as standard.
Related products
MAGIS COMBO 6 PLUS V2 in SOLAR CONTAINER COMBO
Hybrid solution for recessed installation
MAGIS COMBO 6 PLUS V2 with SUPER TRIO
Hybrid solution for recessed or in-house installation
Contacts
Recupero Codice Tessera
Inserisci l’e-mail con cui sei registrato al Caius Club e il dato richiesto ti sarà inviato automaticamente.
Se non hai mai registrato la tua e-mail o se l'hai cambiata, comunicala subito a caiusclub@immergas.com o contatta il Club al numero verde 800 306 306.
Recupero Password
Inserisci il codice tessera e l’e-mail con cui sei registrato al Caius Club e il dato richiesto ti sarà inviato automaticamente.
Se non hai mai registrato la tua e-mail o se l'hai cambiata, comunicala subito a caiusclub@immergas.com o contatta il Club al numero verde 800 306 306.
