MAGIS PRO 14 V2
Heat pumps

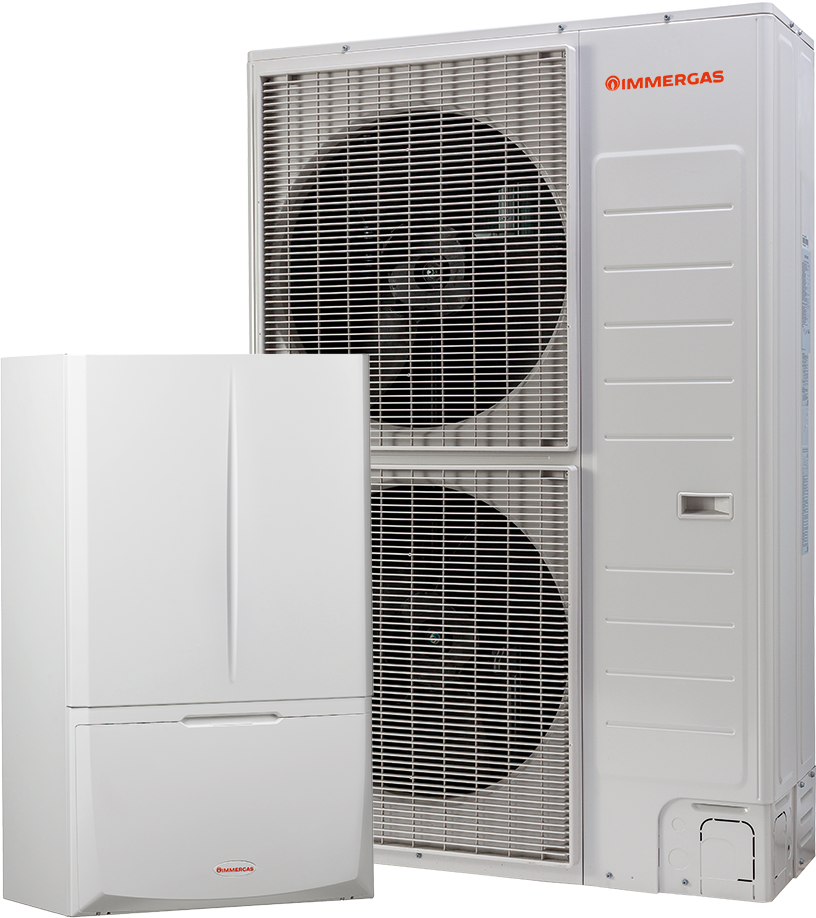

Spilt type reversible air-to-water inverter driven heat pump system composed by an outdoor unit and a indoor hydronic unit
- Noiseless
- Easy installation
- Heating and cooling
The customer service provides prompt answers within 24 hours.
MAGIS PRO 14 V2

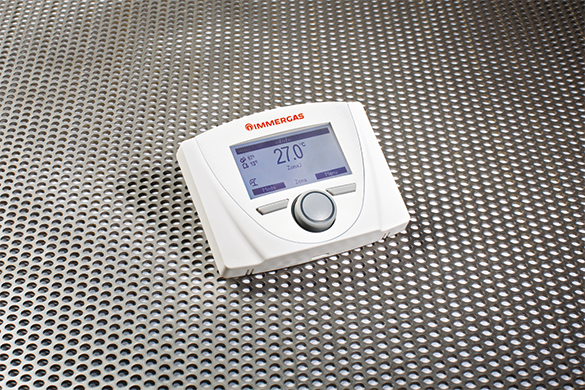

Remote control panel

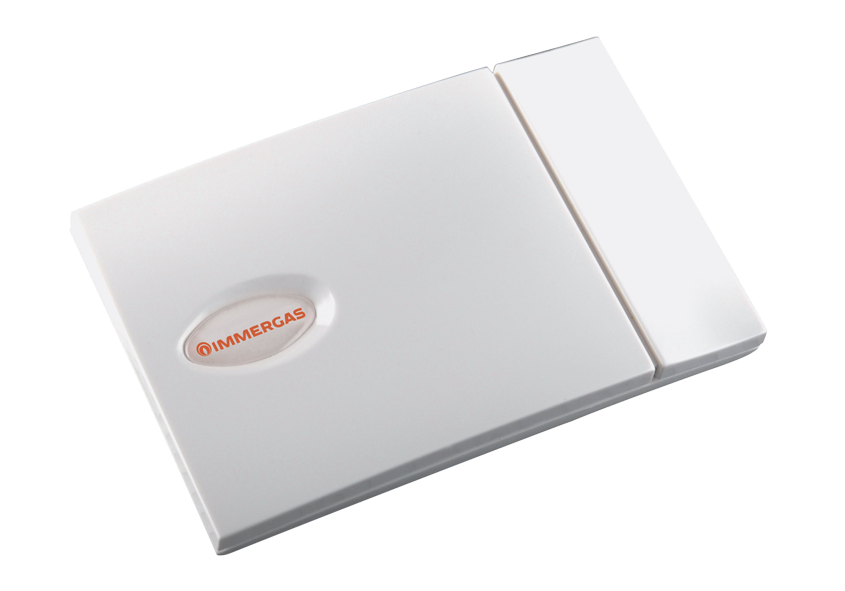

Temperature/humidity active sensor Modbus kit
| Technical data MAGIS PRO 14 V2 | |
|---|---|
| Code | 3.030664 |
| C.H. Energy class at 55 °C | A++ |
| C.H. Energy class at 35 °C | A+++ |
| Heating output kW | 14,00 |
| Cooling output kW | 14,00 |
| Indoor Unit (HxWxD) mm | 780 x 440 x 340 |
| Outdoor Unit (HxWxD) mm | 1420 x 940 x 384 |
| Refrigerant gas | R410A |
| COP | 4,44 |
| EER | 3,68 |
| outdoor unit empty appliance weight (kg) | 100,0 |
| Indoor unit empty appliance weight (kg) | 38,5 |
Product presentation
Spilt type reversible air-to-water inverter driven heat pump system composed by an external unit and a internal unit
Heating output kW : 14,00; Cooling output kW : 14,00
New MAGIS PRO V2 heat pump system range are air-to-water appliances, designed to exploit outdoor air as renewable energy source. Such a kind of appliances are the ideal solution for central heating (maximum delivery temperature equal to 55 °C), cooling and domestic hot water production, thanks to the possible coupling with a separate storage tank unit. The “PRO" designation underlines the particular degreee of competence of the professional people involved in the design and installation process, to whom such a kind of technical solution is addressed; for instance, the completion of the refrigerant circuit and the connection between outdoor unit and the hydronic one, implies the posses for the installer of a spefic qualification (the so called F-Gas licence). Inverter driven compressor allows wide power-modulation range and low current absortion, succeeding in high level performances for more comfortable indoor climatic conditions.
Main features:
• Pre-loaded refrigerant fluid R410A
• High COP and EER values
• Maximum delivery temperature 55 °C
• Pre-arranged to manage up to 3 zones system
