MAGIS COMBO 16 PLUS V2

Spilt type reversible air-to-water inverter hybrid heat pump composed by an outdoor unit and a indoor hydronic condensing unit
The customer service provides
prompt answers within 24 hours.
Noiseless
Easy installation
Heating and cooling

Technical data MAGIS COMBO 16 PLUS V2

Code 3.030824
C.H. Energy class at 55 °C A+
C.H. Energy class at 35 °C A++
Heating output kW 16,00
Cooling output kW 15,00
Indoor Unit (HxWxD) mm 811 x 440 x 474
Outdoor Unit (HxWxD) mm 1420 x 940 x 384
Refrigerant gas R410A
COP 4,26
EER 3,62
Outdoor unit weight (kg) 100,0
Indoor unit weight (kg) 60,0

Technical data MAGIS COMBO 16 PLUS V2

Code 3.030824
C.H. Energy class at 55 °C A+
C.H. Energy class at 35 °C A++
Heating output kW 16,00
Cooling output kW 15,00
Indoor Unit (HxWxD) mm 811 x 440 x 474
Outdoor Unit (HxWxD) mm 1420 x 940 x 384
Refrigerant gas R410A
COP 4,26
EER 3,62
Outdoor unit weight (kg) 100,0
Indoor unit weight (kg) 60,0

Gallery

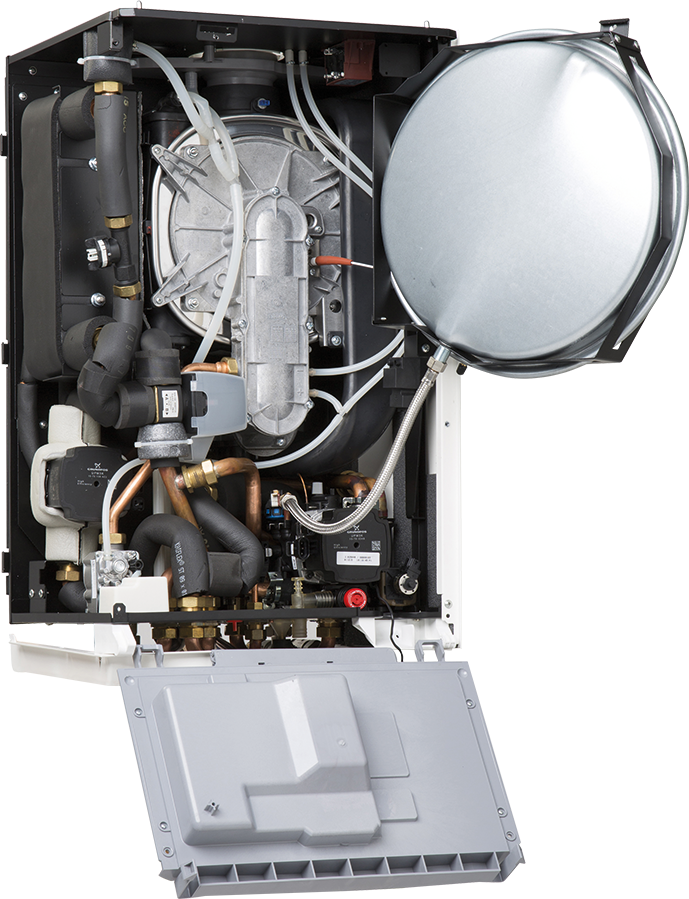

Split air to water, inverter-driven monophase hybrid heat pump system, consisting of outdoor heat pump unit and indoor hydronic and condensing unit.

The new MAGIS COMBO V2 hybrid heat pumps are appliances designed to use outside air as a partially renewable heat source by transferring its thermal energy content to the central heating system. MAGIS COMBO V2 is the hybrid heat pump that heats, cools and produces hot water with an internal condensing unit designed to meet the highest demands, its heating temperature can reach up to 80 °C.

For installation it's necessary the degree of training required to professional people (that have to be in possess of F-GAS certification) involved in the installation and their mutual connection by means of the gas circuit. The inverter driven control allows a very fine power output modulation control, together with reduction of the power input, succeeding in high level performances for more comfortable indoor climatic conditions.

MAGIS COMBO V2 are domestic-purpose-suit systems, and they are the ideal solution in new, high energy rating buildings, even when located in extremely cold areas, with very low outdoor-winter-temperatures.

The very compact external unit (smaller compared to the most diffused hydronic heat pump models), installable both on balcony and fully outdoor, allows to MAGIS COMBO V2 enhanced positional flexibility together with a minimal aestethic effect on the overall style.

MAGIS COMBO V2 is ideal for combination with photovoltaic systems.

...

2 relays board kit   Cod.3.026302

To be installed for the deumidifiers management without in absence of system manager kit.

Dedicated to MAGIS PRO V2 and MAGIS COMBO V2





...

CRONO 7 (weekly digital chronothermostat)   Cod.3.021622

ON/OFF room thermostat.



...

CRONO 7 WIRELESS (wireless weekly digital chronothermostat)   Cod.3.021624

Wireless ON/OFF room thermostat.





...

DOMINUS interface kit   Cod.3.026273

To control heat pumps or hybrid systems and display operation data by means DOMINUS App.
Installed before your modem/router wireless (not supplied by Immergas), you can communicate with the appliance circuit board from any location.
...

External probe   Cod.3.015266

For single installation of VICTRIX PRO V2.
For MAGIS COMBO V2, MAGIS PRO V2, MAGIS COMBO PLUS V2, MAGIS HERCULES PRO, MAGIS HERCULES PRO MINI/EH, MAGIS HERCULES MINI HYDRO, TRIO PACK ELECTRIC, TRIO HYDRO system ELECTRIC and MAGIS M/EH.



...

GSM telephonic control   Cod.3.017182

For buildings not equipped with telephone network.

...

Low temperature safety thermostat kit   Cod.3.019229

For generators settled up with low temperature

...

Mod-bus temperature and humidity sensor   Cod.3.030992

To be used with radiant systems that also work in cooling mode



...

Relay board kit   Cod.3.015350

Allows interface between zone valves and CAR V2 or SUPER CAR, to send an alarm signal, to manage external pump etc.

To be installed inside internal unit both in MAGIS COMBO V2 and MAGIS PRO V2
...

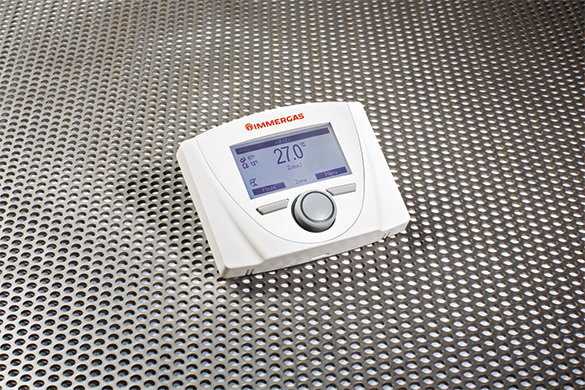

Remote Control Panel   Cod.3.030863

Modulating chronotermostat, remote control with temperature/humidity sensor

...

Room hygrostat   Cod.3.023302

To be used with radiant systems that also work in cooling mode.

...

Storage tank NTC probe   Cod.3.019375

Allows to check the DHW temperature of a Storage Tank Unit or puffer
Provided as per standard on all Storage Tank Units in the catalogue.

...

System controller   Cod.3.021522

Class of device VI* or VIII
Contribution to the environmental heating seasonal energy efficiency 4%* or 5%

* as standard
...

System delivery probe kit   Cod.3.030913

...

Telephonic control   Cod.3.013305

For buildings equipped with telephone network.

...

1 extension pipe Ø 80 2 m long   Cod.3.016837

for VICTRIX PRO 35/55/60/68/80 V2

...

1 extension pipe Ø 80 2 m long   Cod.3.016837

for condensing boilers

...

4 extension pipes Ø 80 kit 0,5 m long   Cod.3.014642

for condensing boilers

...

4 x 90° bends Ø 80 kit   Cod.3.012091

for condensing boilers

...

45° bend Ø 60/100 kit   Cod.3.012095

For condensing boiler < 35 kW.

...

45° bend Ø 80 kit   Cod.3.012092

for condensing boilers

...

90° bend Ø 60/100 kit   Cod.3.012093

For condensing boiler < 35 kW.

...

Anti-wind vertical terminal kit Ø 80   Cod.3.021721

For condensing boiler < 35 kW.

...

Concentric horizontal complete kit Ø 60/100   Cod.3.012000

Max lenght 12,9 m.
For condensing boiler < 35 kW.

...

Concentric vertical complete kit Ø 60/100 (red ocher colour)   Cod.3.016833

for condensing boilers < 35 kW.

...

Extension pipe kit Ø 60/100 0,5 m long   Cod.3.014643

For condensing boiler < 35 kW.

...

Extension pipe kit Ø 60/100 1 m long   Cod.3.012089

For condensing boiler < 35 kW.

...

Flanged stub-pipe + bend + extension pipe Ø 80 for flue discharge   Cod.3.016365

For condensing boilers < 35 kW.

...

Gasket kit Ø 125   Cod.3.015345

...

Gasket kits 10 pcs. Ø 80 Ø 80   Cod.3.015378

...

Gasket kits 10 pcs. Ø 80 Ø 80/125   Cod.3.015343

...

Horizontal concentric complete kit Ø 60/100 Short   Cod.3.024598

Max lenght 11,9 m.
For condensing boiler < 35 kW.

...

Horizontal concentric complete kit Ø 60/100 with swivel terminal   Cod.3.024267

Max lenght 9,9 m.
For condensing boiler < 35 kW except HP models.
...

Twin pipes complete kit Ø 80/80   Cod.3.012002

for condensing boilers < 35 kW and VICTRIX PRO 35/55/60/68/80 V2 (color RAL 9010)

...

2 zones kit (1 mixed and 1 direct)   Cod.3.031695

For MAGIS PRO 12-14-16 V2, MAGIS COMBO/PLUS 12-14-16 V2 and MAGIS HERCULES MINI HYDRO 12

...

3-way valve kit   Cod.3.020632

...

Anti freeze protection kit -15 °C   Cod.3.031804

Anti freeze protection kit -15 °C
For TT versions, VICTRIX SUPERIOR/PLUS, VICTRIX ZEUS, VICTRIX EXA, TERA VIP, VICTRIX TERA/PLUS, OMNIA, MAGIS PRO V2 and MAGIS COMBO V2.

...

Bracket kit for wall mounting 75 inertial storage tank   Cod.3.027290

Bracket kit for wall mounting inertial storage tank 75 litres code 3.027288.

...

Condensate discharge pump kit   Cod.3.026374

For wall-hung boilers: compact condensate drain pump kit.

...

Condensate neutralizer kit   Cod.3.019857

Necessary to neutralize the acidity of the condensation. Inclusive of granulate.
...

Connection kit for R410A circuit   Cod.3.026089

To connect refrigerant gas circuit where internal unit of MAGIS COMBO/PLUS 12-14-16 V2 e MAGIS PRO 12-14-16 V2 is installed to the wall
...

Cover kit for MAGIS COMBO 12-14-16 V2   Cod.3.031977

Cover kit for MAGIS COMBO 12-14-16 V2
...

Dehumidifier back frame kit   Cod.3.022146

...

Dehumidifier front grille kit   Cod.3.022147

...

Dehumidifier kit   Cod.3.021529

Only for recessed installation with codes 3.022146 and 3.022147



...

External cover kit with acoustical insulation for ZENITAIR-MONO   Cod.3.030636

Anti-insect net and anti-wind in pre-painted steel, alternative to the one available with ZENITAIR-MONO.




...

HYDRO 3 V2   Cod.3.033625

Wall-hung hydronic fancoil with LCD remote control and 3-way valve with micro switch on-off, as standard
...

HYDRO IN 200   Cod.3.029841

Wall and ceiling built-in hydronic fancoil



...

HYDRO 4 V2   Cod.3.033626

Wall-hung hydronic fancoil with LCD remote control and 3-way valve with micro switch on-off, as standard
...

HYDRO FS 200   Cod.3.028500

Floor standing hydronic fancoil



...

HYDRO FS 400   Cod.3.028501

Floor standing hydronic fancoil

...

HYDRO FS 600   Cod.3.028502

Floor standing hydronic fancoil


...

HYDRO FS 800   Cod.3.028503

Floor standing hydronic fancoil


...

HYDRO FS 1000   Cod.3.028505

Floor standing hydronic fancoil

...

HYDRO IN 400   Cod.3.029842

Wall and ceiling built-in hydronic fancoil



...

HYDRO IN 600   Cod.3.029843

Wall and ceiling built-in hydronic fancoil



...

HYDRO IN 800   Cod.3.029844

Wall and ceiling built-in hydronic fancoil



...

HYDRO IN 1000   Cod.3.029845

Wall and ceiling built-in hydronic fancoil



...

OMNISTOR 300   Cod.3.027910

Ideal for connection to heat pumps.
The range of new OMNISTOR stainless steel storage
tanks, is ideal to contain domestic hot water with an
inspection flange at the lower part.
The storage tanks are equipped with:
• 1 stainless steel coils water/water heat exchanger
with oversized coil
• 2 probe-supports and NTC probe for Immergas heat
pump connection
• Thermometer
• Double magnesium anode
• Suitable flexible insulation which can be
disassembled (6 cm thick on OMNISTOR 300 and 8
cm thick on OMNISTOR 500)
• Pre-arranged to fix pump station to the body of the
storage tank with option kit (maximum 4 solar flat
plate-collectors)
• Pre-arranged to double electronic anode (option)
code 3.025003
...

OMNISTOR 500   Cod.3.027911

Ideal for connection to heat pumps.
The range of new OMNISTOR stainless steel storage
tanks, is ideal to contain domestic hot water with an
inspection flange at the lower part.
The storage tanks are equipped with:
• 1 stainless steel coils water/water heat exchanger
with oversized coil
• 2 probe-supports and NTC probe for Immergas heat
pump connection
• Thermometer
• Double magnesium anode
• Suitable flexible insulation which can be
disassembled (6 cm thick on OMNISTOR 300 and 8
cm thick on OMNISTOR 500)
• Pre-arranged to fix pump station to the body of the
storage tank with option kit (maximum 4 solar flat
plate-collectors)
• Pre-arranged to double electronic anode (option)
code 3.025003
...

Vertical inertial storage tank 75 litre   Cod.3.027288

Wall-hung (with bracket option kit) or floor-standing installation.
...

Wall mounting brackets for external unit   Cod.3.034758

For outdoor unit of MAGIS COMBO V2, MAGIS COMBO PLUS V2, TRIO PACK, TRIO HYDRO, MAGIS HERCULES PROMAGIS PRO V2, MAGIS HERCULES PRO MINI, MAGIS HERCULES MINI HYDRO, THOR, GOTHA and MULTI 18-27.



...

ZENITAIR MONO   Cod.3.030601

Decentralised mechanical ventilation unit, easy to install, with alternate flow and heat recovery core.
Multifunction remote controller, with LCD display to visualise the status of the unit supplied as standard.





Split air to water, inverter-driven monophase hybrid heat pump system, consisting of outdoor heat pump unit and indoor hydronic and condensing unit.

The new MAGIS COMBO V2 hybrid heat pumps are appliances designed to use outside air as a partially renewable heat source by transferring its thermal energy content to the central heating system. MAGIS COMBO V2 is the hybrid heat pump that heats, cools and produces hot water with an internal condensing unit designed to meet the highest demands, its heating temperature can reach up to 80 °C.

For installation it's necessary the degree of training required to professional people (that have to be in possess of F-GAS certification) involved in the installation and their mutual connection by means of the gas circuit. The inverter driven control allows a very fine power output modulation control, together with reduction of the power input, succeeding in high level performances for more comfortable indoor climatic conditions.

MAGIS COMBO V2 are domestic-purpose-suit systems, and they are the ideal solution in new, high energy rating buildings, even when located in extremely cold areas, with very low outdoor-winter-temperatures.

The very compact external unit (smaller compared to the most diffused hydronic heat pump models), installable both on balcony and fully outdoor, allows to MAGIS COMBO V2 enhanced positional flexibility together with a minimal aestethic effect on the overall style.

MAGIS COMBO V2 is ideal for combination with photovoltaic systems.

...

2 relays board kit   Cod.3.026302

To be installed for the deumidifiers management without in absence of system manager kit.

Dedicated to MAGIS PRO V2 and MAGIS COMBO V2





...

CRONO 7 (weekly digital chronothermostat)   Cod.3.021622

ON/OFF room thermostat.



...

CRONO 7 WIRELESS (wireless weekly digital chronothermostat)   Cod.3.021624

Wireless ON/OFF room thermostat.





...

DOMINUS interface kit   Cod.3.026273

To control heat pumps or hybrid systems and display operation data by means DOMINUS App.
Installed before your modem/router wireless (not supplied by Immergas), you can communicate with the appliance circuit board from any location.
...

External probe   Cod.3.015266

For single installation of VICTRIX PRO V2.
For MAGIS COMBO V2, MAGIS PRO V2, MAGIS COMBO PLUS V2, MAGIS HERCULES PRO, MAGIS HERCULES PRO MINI/EH, MAGIS HERCULES MINI HYDRO, TRIO PACK ELECTRIC, TRIO HYDRO system ELECTRIC and MAGIS M/EH.



...

GSM telephonic control   Cod.3.017182

For buildings not equipped with telephone network.

...

Low temperature safety thermostat kit   Cod.3.019229

For generators settled up with low temperature

...

Mod-bus temperature and humidity sensor   Cod.3.030992

To be used with radiant systems that also work in cooling mode



...

Relay board kit   Cod.3.015350

Allows interface between zone valves and CAR V2 or SUPER CAR, to send an alarm signal, to manage external pump etc.

To be installed inside internal unit both in MAGIS COMBO V2 and MAGIS PRO V2
...

Remote Control Panel   Cod.3.030863

Modulating chronotermostat, remote control with temperature/humidity sensor

...

Room hygrostat   Cod.3.023302

To be used with radiant systems that also work in cooling mode.

...

Storage tank NTC probe   Cod.3.019375

Allows to check the DHW temperature of a Storage Tank Unit or puffer
Provided as per standard on all Storage Tank Units in the catalogue.

...

System controller   Cod.3.021522

Class of device VI* or VIII
Contribution to the environmental heating seasonal energy efficiency 4%* or 5%

* as standard
...

System delivery probe kit   Cod.3.030913

...

Telephonic control   Cod.3.013305

For buildings equipped with telephone network.

...

1 extension pipe Ø 80 2 m long   Cod.3.016837

for VICTRIX PRO 35/55/60/68/80 V2

...

1 extension pipe Ø 80 2 m long   Cod.3.016837

for condensing boilers

...

4 extension pipes Ø 80 kit 0,5 m long   Cod.3.014642

for condensing boilers

...

4 x 90° bends Ø 80 kit   Cod.3.012091

for condensing boilers

...

45° bend Ø 60/100 kit   Cod.3.012095

For condensing boiler < 35 kW.

...

45° bend Ø 80 kit   Cod.3.012092

for condensing boilers

...

90° bend Ø 60/100 kit   Cod.3.012093

For condensing boiler < 35 kW.

...

Anti-wind vertical terminal kit Ø 80   Cod.3.021721

For condensing boiler < 35 kW.

...

Concentric horizontal complete kit Ø 60/100   Cod.3.012000

Max lenght 12,9 m.
For condensing boiler < 35 kW.

...

Concentric vertical complete kit Ø 60/100 (red ocher colour)   Cod.3.016833

for condensing boilers < 35 kW.

...

Extension pipe kit Ø 60/100 0,5 m long   Cod.3.014643

For condensing boiler < 35 kW.

...

Extension pipe kit Ø 60/100 1 m long   Cod.3.012089

For condensing boiler < 35 kW.

...

Flanged stub-pipe + bend + extension pipe Ø 80 for flue discharge   Cod.3.016365

For condensing boilers < 35 kW.

...

Gasket kit Ø 125   Cod.3.015345

...

Gasket kits 10 pcs. Ø 80 Ø 80   Cod.3.015378

...

Gasket kits 10 pcs. Ø 80 Ø 80/125   Cod.3.015343

...

Horizontal concentric complete kit Ø 60/100 Short   Cod.3.024598

Max lenght 11,9 m.
For condensing boiler < 35 kW.

...

Horizontal concentric complete kit Ø 60/100 with swivel terminal   Cod.3.024267

Max lenght 9,9 m.
For condensing boiler < 35 kW except HP models.
...

Twin pipes complete kit Ø 80/80   Cod.3.012002

for condensing boilers < 35 kW and VICTRIX PRO 35/55/60/68/80 V2 (color RAL 9010)

...

2 zones kit (1 mixed and 1 direct)   Cod.3.031695

For MAGIS PRO 12-14-16 V2, MAGIS COMBO/PLUS 12-14-16 V2 and MAGIS HERCULES MINI HYDRO 12

...

3-way valve kit   Cod.3.020632

...

Anti freeze protection kit -15 °C   Cod.3.031804

Anti freeze protection kit -15 °C
For TT versions, VICTRIX SUPERIOR/PLUS, VICTRIX ZEUS, VICTRIX EXA, TERA VIP, VICTRIX TERA/PLUS, OMNIA, MAGIS PRO V2 and MAGIS COMBO V2.

...

Bracket kit for wall mounting 75 inertial storage tank   Cod.3.027290

Bracket kit for wall mounting inertial storage tank 75 litres code 3.027288.

...

Condensate discharge pump kit   Cod.3.026374

For wall-hung boilers: compact condensate drain pump kit.

...

Condensate neutralizer kit   Cod.3.019857

Necessary to neutralize the acidity of the condensation. Inclusive of granulate.
...

Connection kit for R410A circuit   Cod.3.026089

To connect refrigerant gas circuit where internal unit of MAGIS COMBO/PLUS 12-14-16 V2 e MAGIS PRO 12-14-16 V2 is installed to the wall
...

Cover kit for MAGIS COMBO 12-14-16 V2   Cod.3.031977

Cover kit for MAGIS COMBO 12-14-16 V2
...

Dehumidifier back frame kit   Cod.3.022146

...

Dehumidifier front grille kit   Cod.3.022147

...

Dehumidifier kit   Cod.3.021529

Only for recessed installation with codes 3.022146 and 3.022147



...

External cover kit with acoustical insulation for ZENITAIR-MONO   Cod.3.030636

Anti-insect net and anti-wind in pre-painted steel, alternative to the one available with ZENITAIR-MONO.




...

HYDRO 3 V2   Cod.3.033625

Wall-hung hydronic fancoil with LCD remote control and 3-way valve with micro switch on-off, as standard
...

HYDRO IN 200   Cod.3.029841

Wall and ceiling built-in hydronic fancoil



...

HYDRO 4 V2   Cod.3.033626

Wall-hung hydronic fancoil with LCD remote control and 3-way valve with micro switch on-off, as standard
...

HYDRO FS 200   Cod.3.028500

Floor standing hydronic fancoil



...

HYDRO FS 400   Cod.3.028501

Floor standing hydronic fancoil

...

HYDRO FS 600   Cod.3.028502

Floor standing hydronic fancoil


...

HYDRO FS 800   Cod.3.028503

Floor standing hydronic fancoil


...

HYDRO FS 1000   Cod.3.028505

Floor standing hydronic fancoil

...

HYDRO IN 400   Cod.3.029842

Wall and ceiling built-in hydronic fancoil



...

HYDRO IN 600   Cod.3.029843

Wall and ceiling built-in hydronic fancoil



...

HYDRO IN 800   Cod.3.029844

Wall and ceiling built-in hydronic fancoil



...

HYDRO IN 1000   Cod.3.029845

Wall and ceiling built-in hydronic fancoil



...

OMNISTOR 300   Cod.3.027910

Ideal for connection to heat pumps.
The range of new OMNISTOR stainless steel storage
tanks, is ideal to contain domestic hot water with an
inspection flange at the lower part.
The storage tanks are equipped with:
• 1 stainless steel coils water/water heat exchanger
with oversized coil
• 2 probe-supports and NTC probe for Immergas heat
pump connection
• Thermometer
• Double magnesium anode
• Suitable flexible insulation which can be
disassembled (6 cm thick on OMNISTOR 300 and 8
cm thick on OMNISTOR 500)
• Pre-arranged to fix pump station to the body of the
storage tank with option kit (maximum 4 solar flat
plate-collectors)
• Pre-arranged to double electronic anode (option)
code 3.025003
...

OMNISTOR 500   Cod.3.027911

Ideal for connection to heat pumps.
The range of new OMNISTOR stainless steel storage
tanks, is ideal to contain domestic hot water with an
inspection flange at the lower part.
The storage tanks are equipped with:
• 1 stainless steel coils water/water heat exchanger
with oversized coil
• 2 probe-supports and NTC probe for Immergas heat
pump connection
• Thermometer
• Double magnesium anode
• Suitable flexible insulation which can be
disassembled (6 cm thick on OMNISTOR 300 and 8
cm thick on OMNISTOR 500)
• Pre-arranged to fix pump station to the body of the
storage tank with option kit (maximum 4 solar flat
plate-collectors)
• Pre-arranged to double electronic anode (option)
code 3.025003
...

Vertical inertial storage tank 75 litre   Cod.3.027288

Wall-hung (with bracket option kit) or floor-standing installation.
...

Wall mounting brackets for external unit   Cod.3.034758

For outdoor unit of MAGIS COMBO V2, MAGIS COMBO PLUS V2, TRIO PACK, TRIO HYDRO, MAGIS HERCULES PROMAGIS PRO V2, MAGIS HERCULES PRO MINI, MAGIS HERCULES MINI HYDRO, THOR, GOTHA and MULTI 18-27.



...

ZENITAIR MONO   Cod.3.030601

Decentralised mechanical ventilation unit, easy to install, with alternate flow and heat recovery core.
Multifunction remote controller, with LCD display to visualise the status of the unit supplied as standard.





Related products

MAGIS COMBO 12 PLUS V2 with SUPER TRIO TOP

Hybrid solution for recessed or in-house installation

MAGIS COMBO 14 PLUS V2 with SUPER TRIO TOP

Hybrid solution for recessed or in-house installation

MAGIS COMBO 16 PLUS V2 with SUPER TRIO TOP

Hybrid solution for recessed or in-house installation

MAGIS COMBO 12 PLUS V2
Air-water inverter split-type mono-phase hybrid heat pump
MAGIS COMBO 14 PLUS V2
Air-water inverter split-type mono-phase hybrid heat pump

Contacts

Contact us
Customer Care
