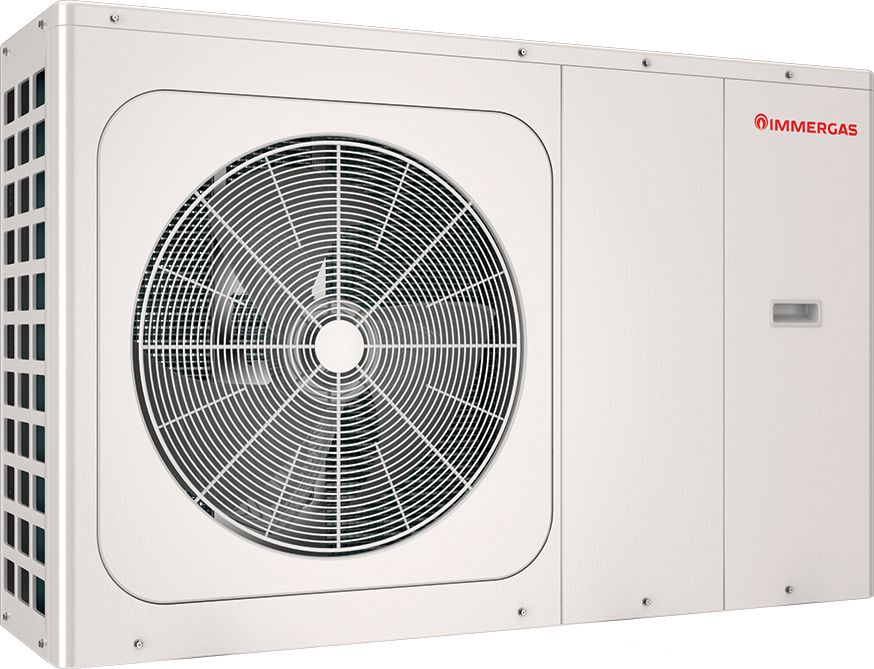

MAGIS M16
Heat pumps
Hydronic monobloc single-phase heat pumps
- Ideal for new buildings
- Standard thermoregulation
- Heating and cooling
The customer service provides prompt answers within 24 hours.
MAGIS M16
Deumidificatore
Gestore di sistema
Pannello di controllo
| Technical data MAGIS M16 | |
|---|---|
| Code | 3.032377 |
| C.H. Energy class at 55 °C | A++ |
| C.H. Energy class at 35 °C | A+++ |
| Heating output kW | 15,90 |
| Cooling output kW | 14,20 |
| Dimensions (HxWxD) mm | 865 x 1385 x 526 |
| Refrigerant gas | R32 |
| COP | 4,50 |
| EER | 3,61 |
| Weight (kg) | 129 |
Product presentation
Hydronic monobloc single-phase heat pumps
• Pre-loaded refrigerant fluid R32;
• Remote control panel (with chronothermostat function) as standard;
• Including external probe, condensate discharge fitting, “Y" filter, 3 bar valve, 8 litres D.H.W. expansion vessel, low consumption pump system; probe to manage D.H.W. or 2nd mixed zone heating set point till 65°C
• Possibillity to realize integrated system (MAGIS M + gas boiler) with system controller
• Possibility to manage 1 zone heating/cooling, 1 zone only heating and 1 mixing valve
• Photovoltaic contact/Smart Grid
• Simple and multiple cascade
