MAGIS M18 T
Heat pumps
Hydronic monobloc three-phase heat pumps
- Ideal for new buildings
- Standard thermoregulation
- Heating and cooling
The customer service provides prompt answers within 24 hours.
MAGIS M18 T

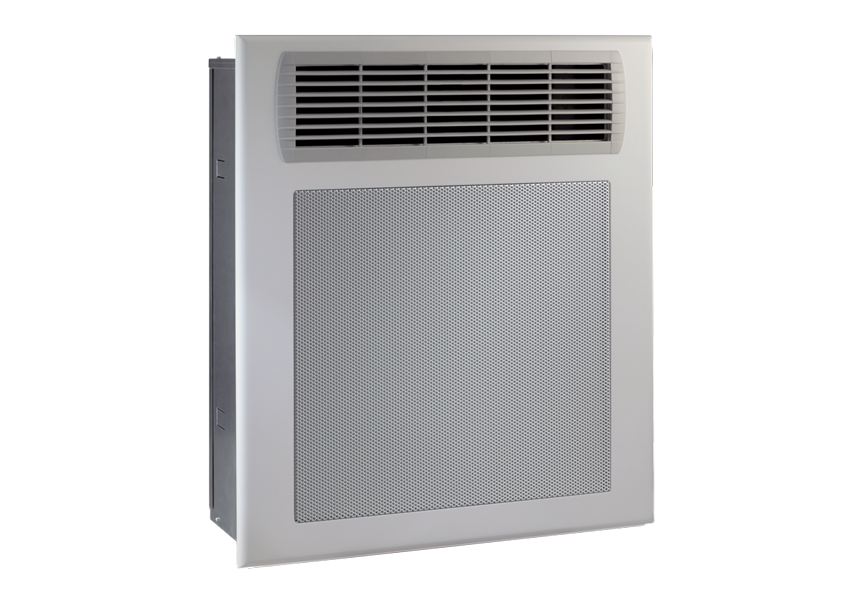

Deumidificatore

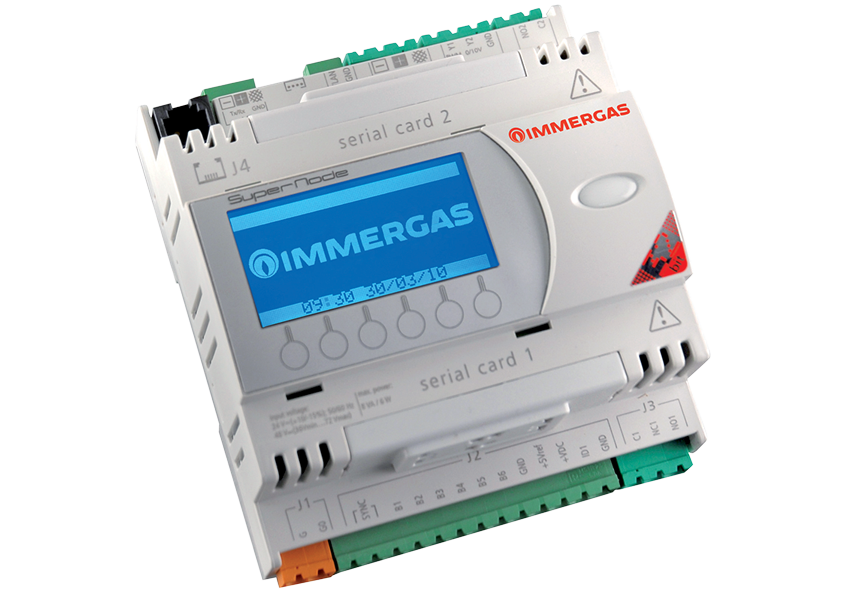

Gestore di sistema

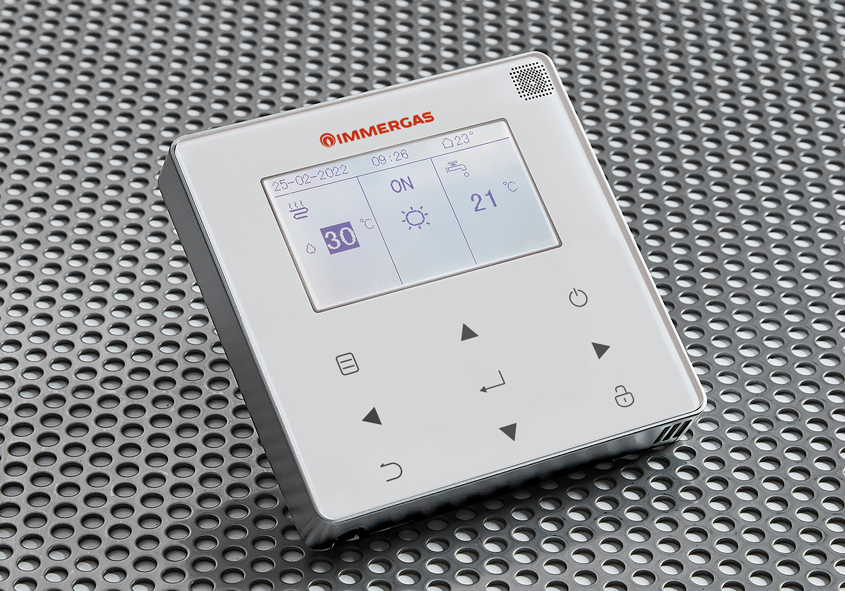

Pannello di controllo
| Technical data MAGIS M18 T | |
|---|---|
| Code | 3.032381 |
| C.H. Energy class at 55 °C | A++ |
| C.H. Energy class at 35 °C | A+++ |
| Heating output kW | 18,00 |
| Cooling output kW | 18,50 |
| Dimensions (HxWxD) mm | 1558 x 1129 x 528 |
| Refrigerant gas | R32 |
| COP | 4,70 |
| EER | 4,75 |
| Weight (kg) | 177 |
Product presentation
Hydronic monobloc three-phase heat pumps
• Pre-loaded refrigerant fluid R32;
• Remote control panel (with chronothermostat function) as standard;
• Including external probe, condensate discharge fitting, “Y" filter, 3 bar valve, 8 litres D.H.W. expansion vessel, low consumption pump system;
probe to manage D.H.W. or 2nd mixed zone heating set point till 65 °C (from 12 to 22 model) heating set point till 60 °C (from 26 to 30 model)
• Possibillity to realize integrated system (MAGIS M + gas boiler) with system controller
• Possibility to manage 1 zone heating/cooling, 1 zone only heating and 1 mixing valve
• Photovoltaic contact/Smart Grid
• Simple and multiple cascade
• Ermetically sealed
