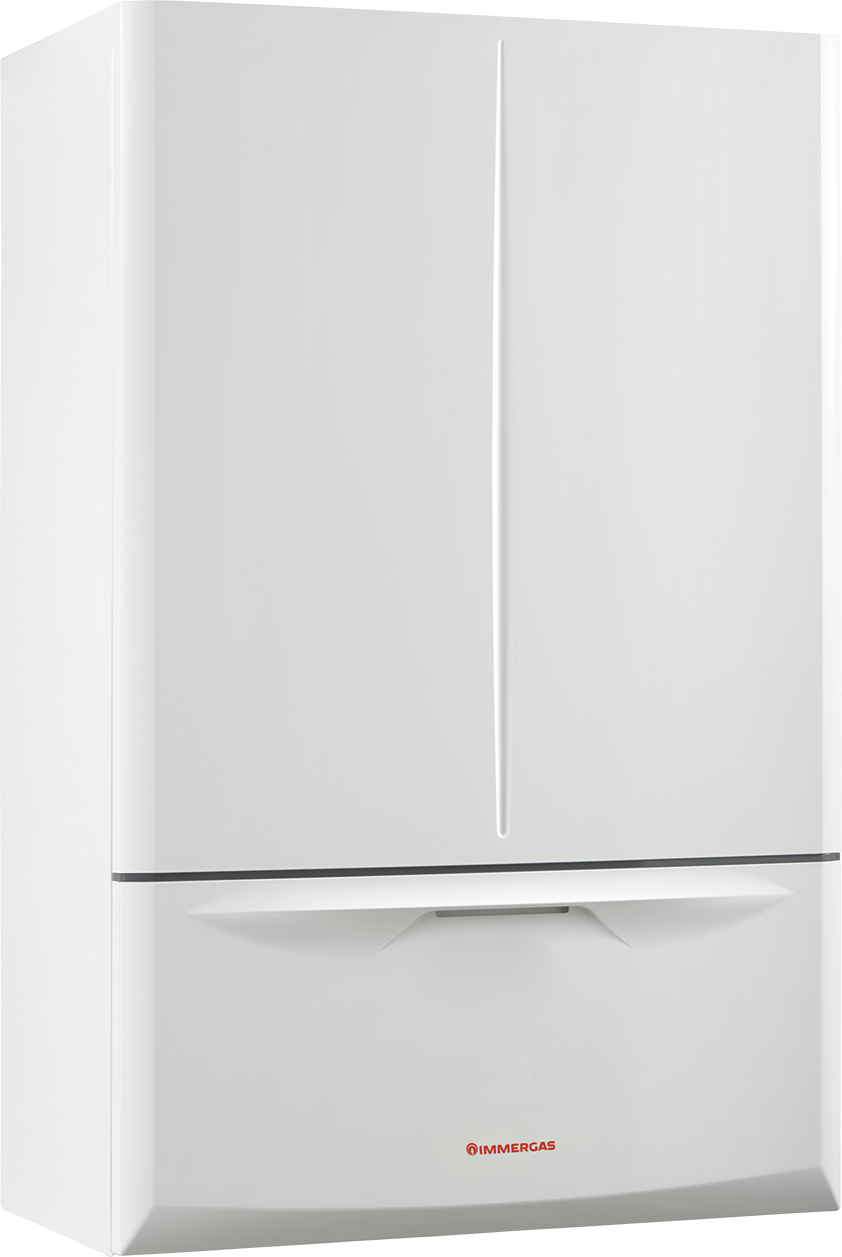

VICTRIX EXTRA 35
Condensing Boilers
Wall-hung combi condensing boiler
- User-friendly interface
- Outdoor installation
- Digital display
Hydrogen Ready efficiency and technology.
The customer service provides prompt answers within 24 hours.
VICTRIX EXTRA 35
Documentation
| Technical data VICTRIX EXTRA 35 | |
|---|---|
| Code | 3.033703 |
| Product plus | HYDROGEN READY 20% |
| C.H. Energy class | A |
| D.H.W. Energy class - Stated load profile | A / XL |
| Heat output C.H. kW | 32,0 |
| Heat output D.H.W. kW | 33,0 |
| Dimensions (HxWxD) mm | 748 x 440 x 260 |
| Type | combi |
| Modulating heat output | 9 - 100 % |
| D.H.W. production (∆t 30°C) l/min | 15,8 |
Product presentation
- Installation versatility inside and outside the house (even open-air with optional cover kit) and in various technical cabinet/recessed solutions
- IPX5D protection index, metal sheets treated with a cataphoresis process and painted plastics to resist external agents
- Compact dimensions with 250 mm depth only
- 10 litres expansion vessel
- Modulation range up to 1:12 (for higher power models)
- Seasonal efficiency ηs 94%, class A+ in combination with advanced climatic regulation
- Electronic gas valve à unique product code for methane, LPG, Polish gases
- Equipped as standard with a clapet valve downstream of the fan which, together with a second optional clapet valve to be installed on the fume exhaust, allows the C10-C12 installations (in collective flue systems operating under positive pressure)
- High fumes available head – powerful fans to achieve 13 meters with Ø50 flexible ducting

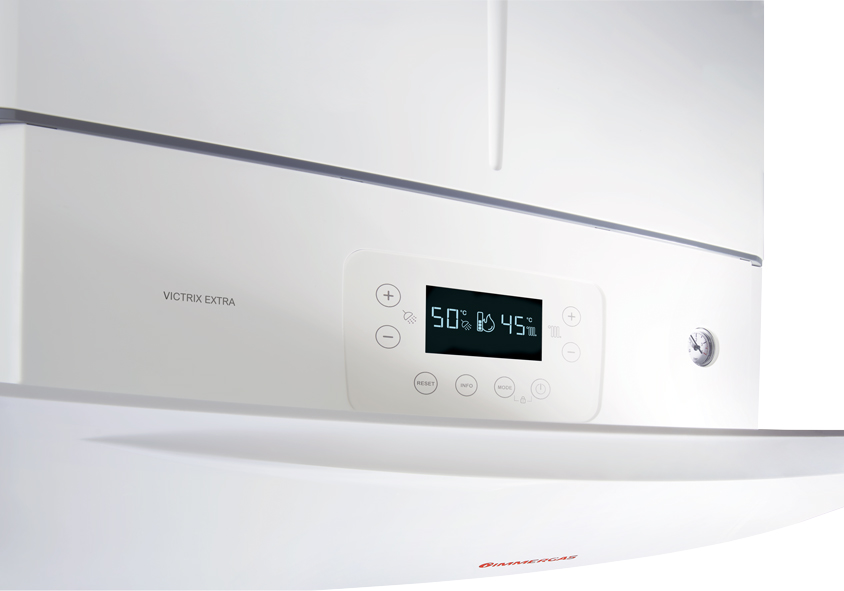

- Advanced user interface ready for connectivity; wide display 67 x 37 mm with touch keys only
- Hydrogen Ready, with mixtures up to 20 vol.% of hydrogen
