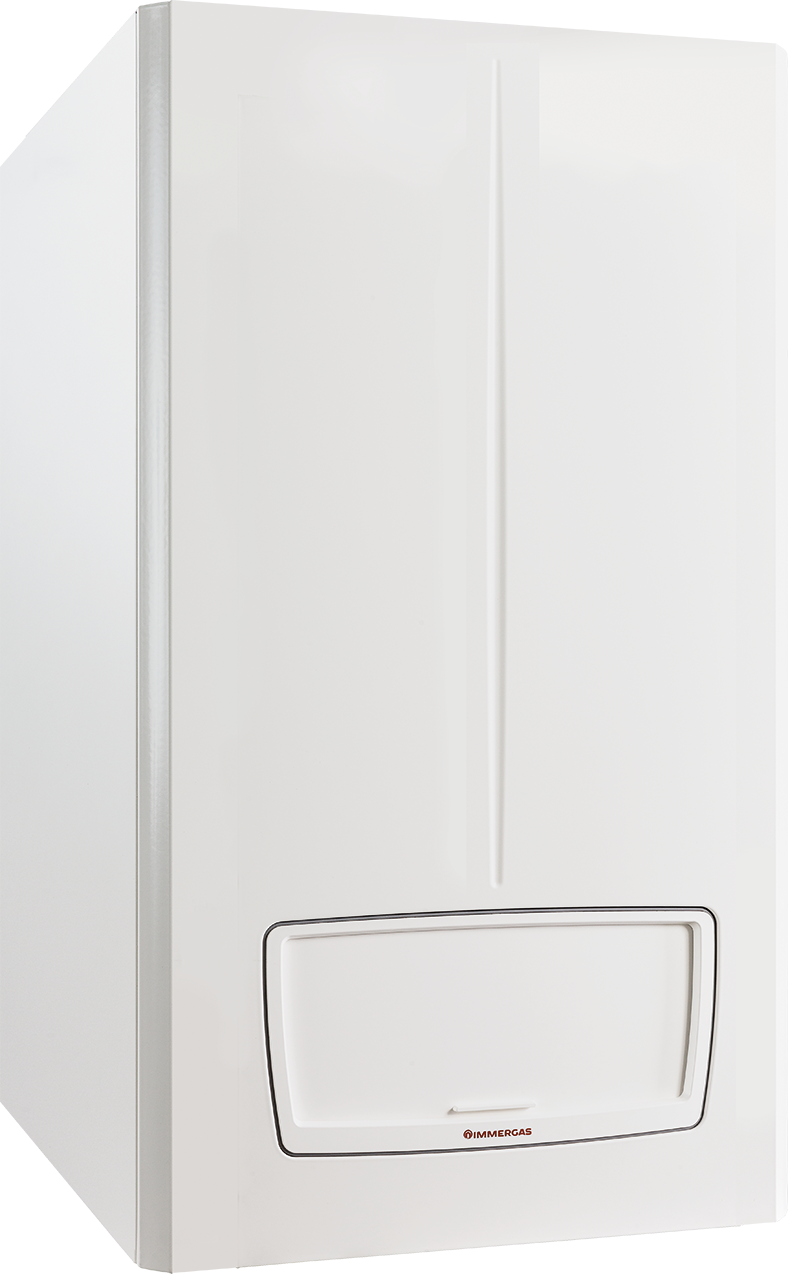

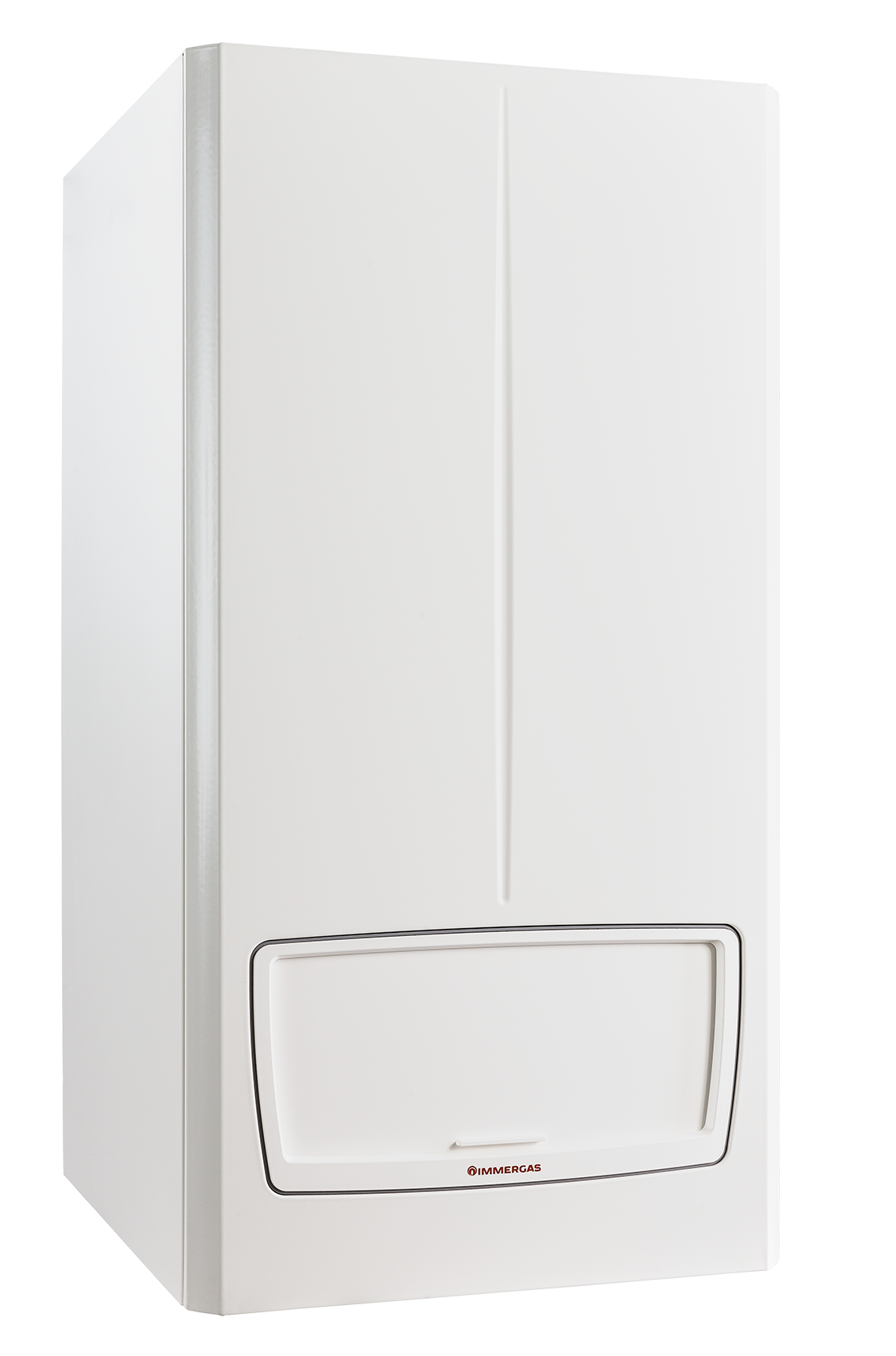

VICTRIX PRO 100 V2 EU
Light Commercial
Wall-hung modular condensing boiler for heating only
- Wide modulating heat output
- Ideal for energy efficiency upgrade
- Possible installation in cascade
Hydrogen Ready efficiency and technology.
The customer service provides prompt answers within 24 hours.
VICTRIX PRO 100 V2 EU

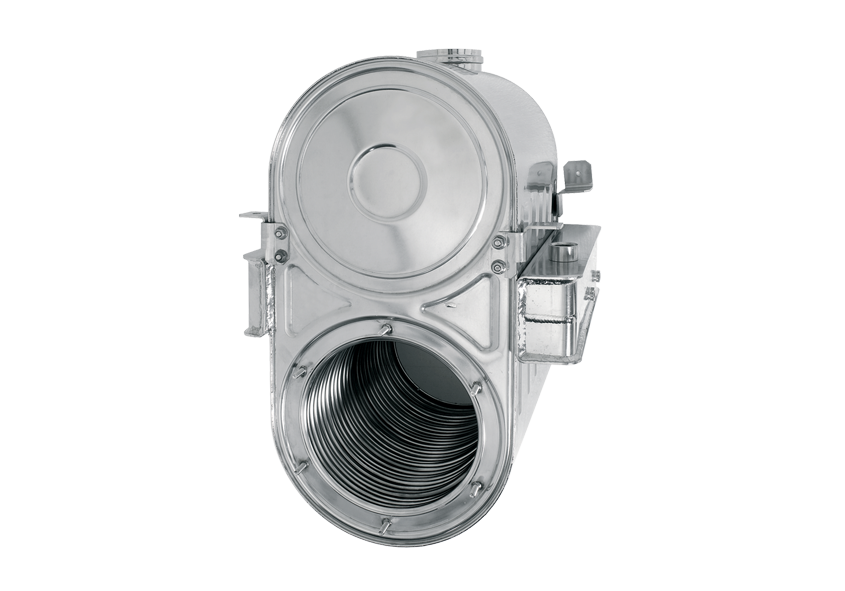

Condensing module
Cascade and zone regulator kit

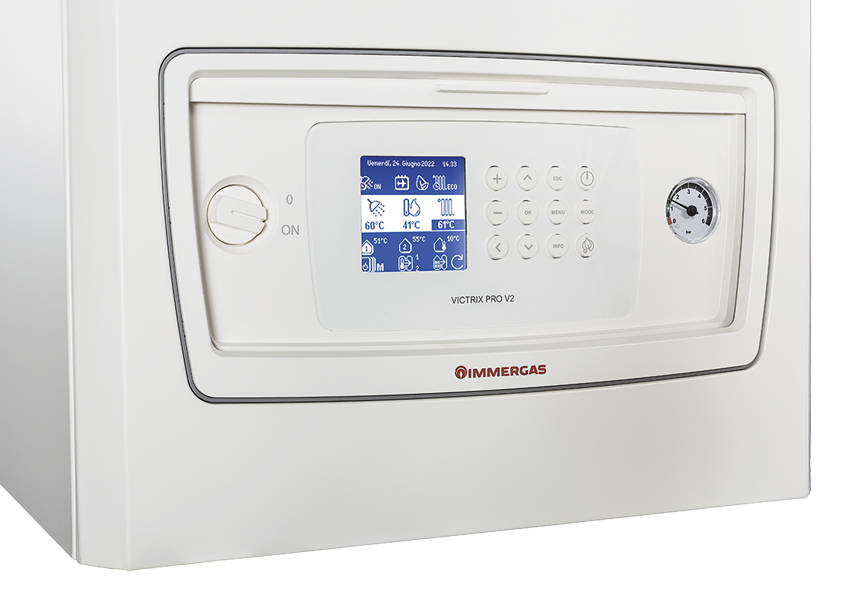

Control panel
| Technical data VICTRIX PRO 100 V2 EU | |
|---|---|
| Code | 3.033861 |
| Product plus | HYDROGEN READY 20% |
| Product plus | BIM READY |
| C.H. Energy class | A |
| Heat output ref. 80-60°C kW | 90,9 |
| Heat output ref. 50-30°C kW | 98,8 |
| Efficiency at nominal heat output ref. 80-60 °C | 97,7% |
| Efficiency at nominal heat output ref. 50-30 °C | 106,3% |
| Dimensions (HxWxD) mm | 1098 (1232) x 600 x 557 |
| Modulating heat output | 10 - 100% |
Product presentation
Wall hung, modular condensing boiler for heating only.
Wide modulating ratio up to 5 boilers in cascade installation, high performances with reduced consumption thanks to the 1:10 modulation range and high efficiency, the new VICTRIX PRO V2 is the ideal solution for light commercial solutions in residential and commercial buildings. The new design, compact and linear, with a vertical sliding door protecting the control board, makes its installation easy even in residential buildings (according to the current regulations in force in each country).
VICTRIX PRO V2 can be used on the appropriate supporting modulation frame for floor standing installations. Certified for indoor and outdoor installations, even in unsheltered areas thanks to the IPX5D electric protection, the boiler is supplied with the -5 °C anti-freeze kit as standard.
Thanks to low emissions of carbon monoxide (CO) and nitrogen oxide (NOX), VICTRIX PRO V2 belongs to class 6, the most environmentally-friendly class established by the European standards (UNI EN 297 e UNI EN 483).
The new VICTRIX PRO V2 can work with natural gas, LPG and up to 20% blend of hydrogen.
