MAGIS HERCULES MINI HYDRO 12 EH

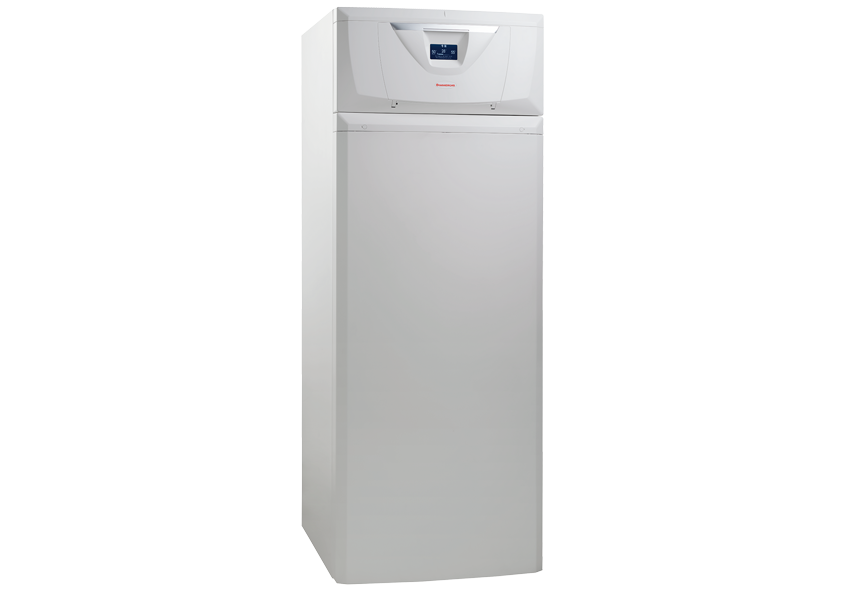

Monobloc reversible air-to-water inverter driven heat pump system composed by an external unit and a floor standing internal unit
The customer service provides
prompt answers within 24 hours.
prompt answers within 24 hours.
High sanitary comfort
Ideal for new buildings
Heating and cooling
Technical data MAGIS HERCULES MINI HYDRO 12 EH |
|
|---|---|
| Code | 3.035598 |
| C.H. Energy class at 55 °C | A++ |
| D.H.W. Energy class - Stated load profile | A+ / XL |
| Heating output kW | 12,00 |
| Cooling output kW | 12,00 |
| Internal Unit (HxWxD) mm | 1600 x 600 x 675 |
| External Unit (HxWxD) mm | 1420 x 940 x 330 |
| Refrigerant gas | R32 |
| COP | 4,53 |
| EER | 4,33 |
| Internal unit empty appliance weight (kg) | 139,7 |
| External unit empty appliance weight (kg) | 111,0 |
Technical data MAGIS HERCULES MINI HYDRO 12 EH |
|
|---|---|
| Code | 3.035598 |
| C.H. Energy class at 55 °C | A++ |
| D.H.W. Energy class - Stated load profile | A+ / XL |
| Heating output kW | 12,00 |
| Cooling output kW | 12,00 |
| Internal Unit (HxWxD) mm | 1600 x 600 x 675 |
| External Unit (HxWxD) mm | 1420 x 940 x 330 |
| Refrigerant gas | R32 |
| COP | 4,53 |
| EER | 4,33 |
| Internal unit empty appliance weight (kg) | 139,7 |
| External unit empty appliance weight (kg) | 111,0 |
Gallery
NEW "ALL-IN-ONE" COMPACT SOLUTION
MAGIS HERCULES MINI HYDRO is the new compact monobloc heat pump with R32 refrigerant gas.
Designed for new buildings as well for major renovations of medium-sized homes, it can be installed without F-Gas license.

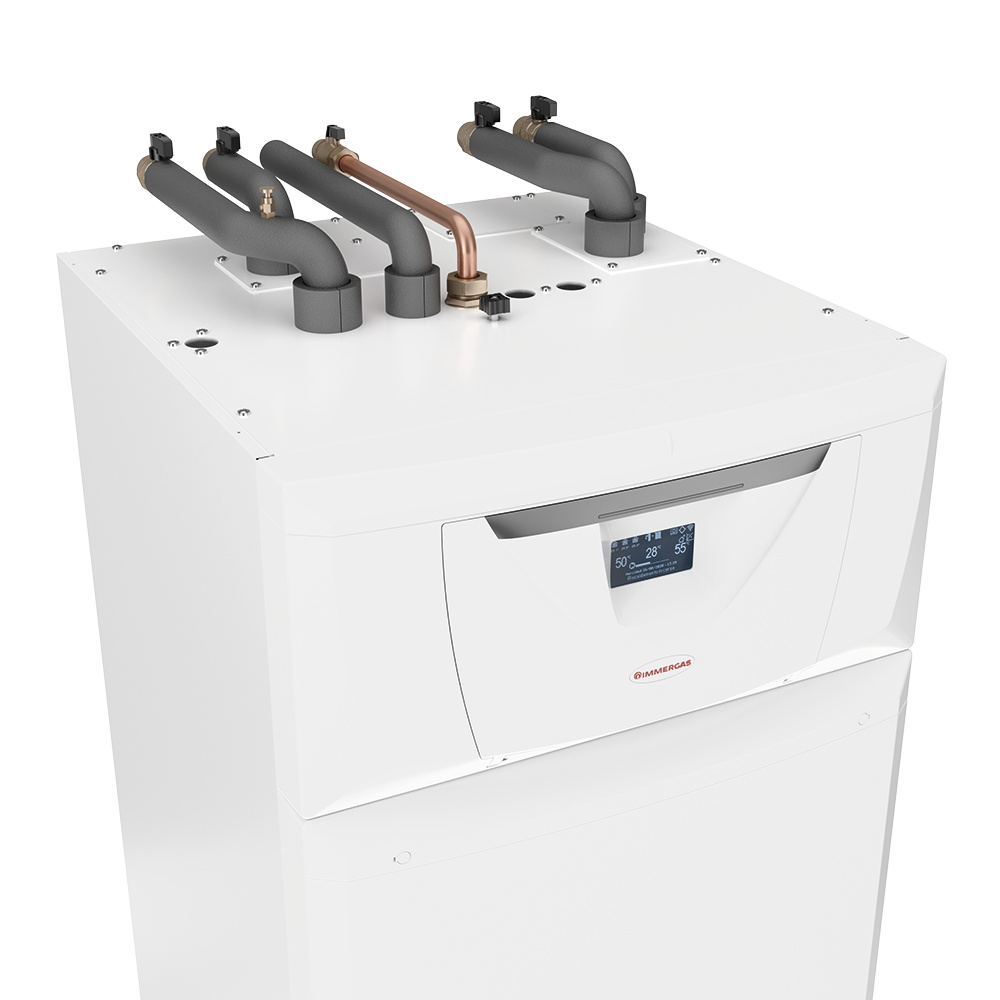

The casing of the indoor unit contains a domestic hot water boiler with electric resistance in order to work simultaneously on DHW and the
system, buffer tank and circulator for one direct zone. The "EH" versions are equipped with
CH electric heater as standard.
2 relays board kit Cod.3.031943
For TRIO PACK, TRIO HYDRO, MAGIS HERCULES PRO MINI and MAGIS HERCULES MINI HYDRO.
CRONO 7 (weekly digital chronothermostat) Cod.3.021622
ON/OFF room thermostat.
CRONO 7 WIRELESS (wireless weekly digital chronothermostat) Cod.3.021624
Wireless ON/OFF room thermostat.
DOMINUS interface kit Cod.3.026273
To control heat pumps or hybrid systems and display operation data by means DOMINUS App.
Installed before your modem/router wireless (not supplied by Immergas), you can communicate with the appliance circuit board from any location.
Expansion kit Cod.3.031944
For TRIO PACK, TRIO HYDRO, MAGIS HERCULES PRO MINI and MAGIS HERCULES MINI HYDRO.
External probe Cod.3.015266
For single installation of VICTRIX PRO V2.
For MAGIS COMBO V2, MAGIS PRO V2, MAGIS COMBO PLUS V2, MAGIS HERCULES PRO, MAGIS HERCULES PRO MINI/EH, MAGIS HERCULES MINI HYDRO, TRIO PACK ELECTRIC, TRIO HYDRO system ELECTRIC and MAGIS M/EH.
Mod-bus temperature and humidity sensor Cod.3.030992
To be used with radiant systems that also work in cooling mode
Remote Control Panel Cod.3.030863
Modulating chronotermostat, remote control with temperature/humidity sensor
Room hygrostat Cod.3.023302
To be used with radiant systems that also work in cooling mode.
3-way valve kit Cod.3.020632
Connection cover kit Cod.3.034183
For MAGIS HERCULES PRO MINI and MAGIS HERCULES MINI HYDRO.
Dehumidifier back frame kit Cod.3.022146
Dehumidifier front grille kit Cod.3.022147
Dehumidifier kit Cod.3.021529
Only for recessed installation with codes 3.022146 and 3.022147
Distribution manifold for 1 direct and 1 mixed temperature zones Cod.3.026301
Kit to be used without system manager controller.
Dedicated to MAGIS PRO V2 4-6-9, MAGIS COMBO V2 4-6-9, MAGIS HERCULES PRO MINI and MAGIS HERCULES MINI HYDRO 5-8
Distribution manifold for 1 direct and 1 mixed temperature zones (only heating) Cod.3.032265
Dedicated to MAGIS PRO V2 4-6-9, MAGIS HERCULES PRO MINI, MAGIS COMBO V2 4-6-9 and MAGIS HERCULES MINI HYDRO 5-8
Distribution manifold for 2 direct zones (only heating) Cod.3.032264
Dedicated to MAGIS PRO V2 4-6-9, MAGIS HERCULES PRO MINI 6-9/EH and MAGIS COMBO V2 4-6-9.
For 2 direct zones (only heating)
Double electronic anode kit Cod.3.025003
For OMNISTOR, INOXSTOR V2, MAGIS HERCULES PRO, MAGIS HERCULES PRO MINI and MAGIS HERCULES MINI HYDRO.
External cover kit with acoustical insulation for ZENITAIR-MONO Cod.3.030636
Anti-insect net and anti-wind in pre-painted steel, alternative to the one available with ZENITAIR-MONO.
HYDRO 3 V2 Cod.3.033625
Wall-hung hydronic fancoil with LCD remote control and 3-way valve with micro switch on-off, as standard
HYDRO 4 V2 Cod.3.033626
Wall-hung hydronic fancoil with LCD remote control and 3-way valve with micro switch on-off, as standard
HYDRO FS 200 Cod.3.028500
Floor standing hydronic fancoil
HYDRO FS 400 Cod.3.028501
Floor standing hydronic fancoil
HYDRO FS 600 Cod.3.028502
Floor standing hydronic fancoil
HYDRO FS 800 Cod.3.028503
Floor standing hydronic fancoil
HYDRO FS 1000 Cod.3.028505
Floor standing hydronic fancoil
Recirculation kit with pump Cod.3.033217
To be installed inside the MAGIS HERCULES PRO MINI and MAGIS HERCULES MINI HYDRO internal unit casing
Solar kit Cod.3.033210
For MAGIS HERCULES PRO MINI and MAGIS HERCULES MINI HYDRO
Composed by: plate heat exchanger, single solar pump station (with low consumption circulation pump), solar central unit, shut off knobs, connection pipes, mixing valve, 18 litre solar expansion vessel, temperature probes (for collectors and storage tank).
Wall mounting brackets for external unit Cod.3.034758
For outdoor unit of MAGIS COMBO V2, MAGIS COMBO PLUS V2, TRIO PACK, TRIO HYDRO, MAGIS HERCULES PRO, MAGIS PRO V2, MAGIS HERCULES PRO MINI, MAGIS HERCULES MINI HYDRO, THOR, GOTHA and MULTI 18-27.
ZENITAIR MONO Cod.3.030601
Decentralised mechanical ventilation unit, easy to install, with alternate flow and heat recovery core.
Multifunction remote controller, with LCD display to visualise the status of the unit supplied as standard.
NEW "ALL-IN-ONE" COMPACT SOLUTION
MAGIS HERCULES MINI HYDRO is the new compact monobloc heat pump with R32 refrigerant gas.
Designed for new buildings as well for major renovations of medium-sized homes, it can be installed without F-Gas license.
The casing of the indoor unit contains a domestic hot water boiler with electric resistance in order to work simultaneously on DHW and the
system, buffer tank and circulator for one direct zone. The "EH" versions are equipped with
CH electric heater as standard.
2 relays board kit Cod.3.031943
For TRIO PACK, TRIO HYDRO, MAGIS HERCULES PRO MINI and MAGIS HERCULES MINI HYDRO.
CRONO 7 (weekly digital chronothermostat) Cod.3.021622
ON/OFF room thermostat.
CRONO 7 WIRELESS (wireless weekly digital chronothermostat) Cod.3.021624
Wireless ON/OFF room thermostat.
DOMINUS interface kit Cod.3.026273
To control heat pumps or hybrid systems and display operation data by means DOMINUS App.
Installed before your modem/router wireless (not supplied by Immergas), you can communicate with the appliance circuit board from any location.
Expansion kit Cod.3.031944
For TRIO PACK, TRIO HYDRO, MAGIS HERCULES PRO MINI and MAGIS HERCULES MINI HYDRO.
External probe Cod.3.015266
For single installation of VICTRIX PRO V2.
For MAGIS COMBO V2, MAGIS PRO V2, MAGIS COMBO PLUS V2, MAGIS HERCULES PRO, MAGIS HERCULES PRO MINI/EH, MAGIS HERCULES MINI HYDRO, TRIO PACK ELECTRIC, TRIO HYDRO system ELECTRIC and MAGIS M/EH.
Mod-bus temperature and humidity sensor Cod.3.030992
To be used with radiant systems that also work in cooling mode
Remote Control Panel Cod.3.030863
Modulating chronotermostat, remote control with temperature/humidity sensor
Room hygrostat Cod.3.023302
To be used with radiant systems that also work in cooling mode.
3-way valve kit Cod.3.020632
Connection cover kit Cod.3.034183
For MAGIS HERCULES PRO MINI and MAGIS HERCULES MINI HYDRO.
Dehumidifier back frame kit Cod.3.022146
Dehumidifier front grille kit Cod.3.022147
Dehumidifier kit Cod.3.021529
Only for recessed installation with codes 3.022146 and 3.022147
Distribution manifold for 1 direct and 1 mixed temperature zones Cod.3.026301
Kit to be used without system manager controller.
Dedicated to MAGIS PRO V2 4-6-9, MAGIS COMBO V2 4-6-9, MAGIS HERCULES PRO MINI and MAGIS HERCULES MINI HYDRO 5-8
Distribution manifold for 1 direct and 1 mixed temperature zones (only heating) Cod.3.032265
Dedicated to MAGIS PRO V2 4-6-9, MAGIS HERCULES PRO MINI, MAGIS COMBO V2 4-6-9 and MAGIS HERCULES MINI HYDRO 5-8
Distribution manifold for 2 direct zones (only heating) Cod.3.032264
Dedicated to MAGIS PRO V2 4-6-9, MAGIS HERCULES PRO MINI 6-9/EH and MAGIS COMBO V2 4-6-9.
For 2 direct zones (only heating)
Double electronic anode kit Cod.3.025003
For OMNISTOR, INOXSTOR V2, MAGIS HERCULES PRO, MAGIS HERCULES PRO MINI and MAGIS HERCULES MINI HYDRO.
External cover kit with acoustical insulation for ZENITAIR-MONO Cod.3.030636
Anti-insect net and anti-wind in pre-painted steel, alternative to the one available with ZENITAIR-MONO.
HYDRO 3 V2 Cod.3.033625
Wall-hung hydronic fancoil with LCD remote control and 3-way valve with micro switch on-off, as standard
HYDRO 4 V2 Cod.3.033626
Wall-hung hydronic fancoil with LCD remote control and 3-way valve with micro switch on-off, as standard
HYDRO FS 200 Cod.3.028500
Floor standing hydronic fancoil
HYDRO FS 400 Cod.3.028501
Floor standing hydronic fancoil
HYDRO FS 600 Cod.3.028502
Floor standing hydronic fancoil
HYDRO FS 800 Cod.3.028503
Floor standing hydronic fancoil
HYDRO FS 1000 Cod.3.028505
Floor standing hydronic fancoil
Recirculation kit with pump Cod.3.033217
To be installed inside the MAGIS HERCULES PRO MINI and MAGIS HERCULES MINI HYDRO internal unit casing
Solar kit Cod.3.033210
For MAGIS HERCULES PRO MINI and MAGIS HERCULES MINI HYDRO
Composed by: plate heat exchanger, single solar pump station (with low consumption circulation pump), solar central unit, shut off knobs, connection pipes, mixing valve, 18 litre solar expansion vessel, temperature probes (for collectors and storage tank).
Wall mounting brackets for external unit Cod.3.034758
For outdoor unit of MAGIS COMBO V2, MAGIS COMBO PLUS V2, TRIO PACK, TRIO HYDRO, MAGIS HERCULES PRO, MAGIS PRO V2, MAGIS HERCULES PRO MINI, MAGIS HERCULES MINI HYDRO, THOR, GOTHA and MULTI 18-27.
ZENITAIR MONO Cod.3.030601
Decentralised mechanical ventilation unit, easy to install, with alternate flow and heat recovery core.
Multifunction remote controller, with LCD display to visualise the status of the unit supplied as standard.
