MAGIS HERCULES MINI HYDRO 12 T EH
Heat pumps
Monobloc reversible air-to-water inverter driven heat pump system composed by an external unit and a floor standing internal unit
- High sanitary comfort
- Ideal for new buildings
- Heating and cooling
The customer service provides prompt answers within 24 hours.
MAGIS HERCULES MINI HYDRO 12 T EH

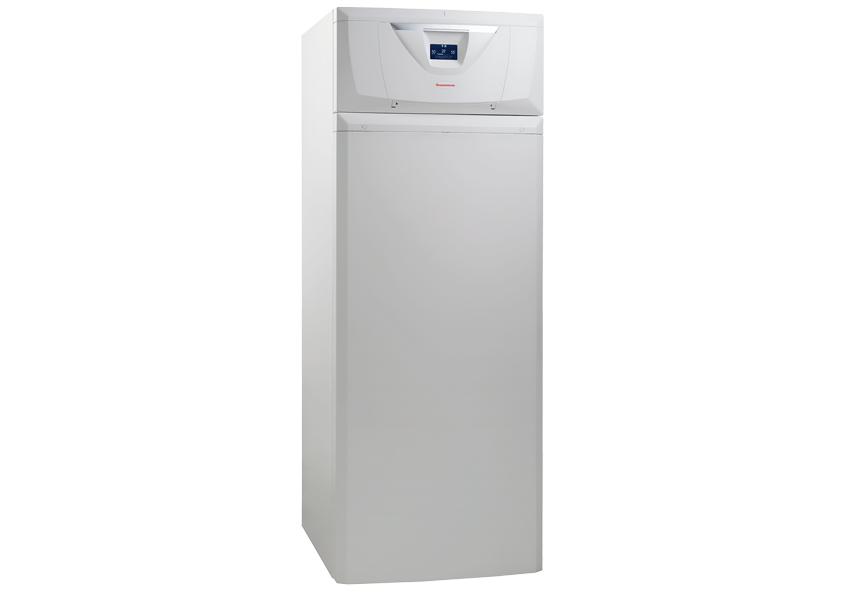

Internal unit MAGIS HERCULES MINI HYDRO

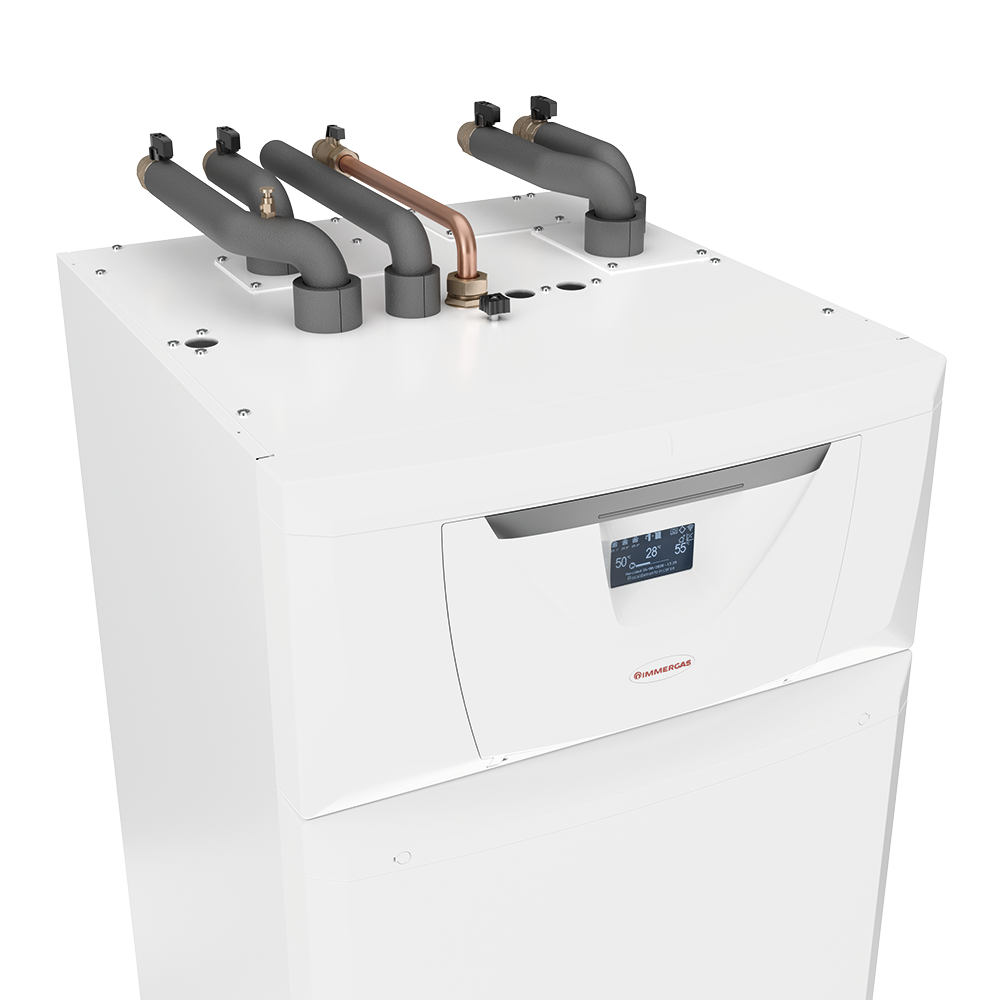

connections MHMH
| Technical data MAGIS HERCULES MINI HYDRO 12 T EH | |
|---|---|
| Code | 3.035599 |
| C.H. Energy class at 55 °C | A++ |
| D.H.W. Energy class - Stated load profile | A+ / XL |
| Heating output kW | 12,00 |
| Cooling output kW | 12,00 |
| Internal unit (HxWxD) mm | 1600 x 600 x 675 |
| External unit (HxWxD) mm | 1420 x 940 x 330 |
| Refrigerant gas | R32 |
| COP | 4,53 |
| EER | 4,33 |
| Internal unit empty appliance weight (kg) | 139,7 |
| External unit empty appliance weight (kg) | 111,0 |
Product presentation
NEW "ALL-IN-ONE" COMPACT SOLUTION
MAGIS HERCULES MINI HYDRO is the new compact monobloc heat pump with R32 refrigerant gas.
Designed for new buildings as well for major renovations of medium-sized homes, it can be installed without F-Gas license.
The casing of the indoor unit contains a domestic hot water boiler with electric resistance in order to work simultaneously on DHW and the
system, buffer tank and circulator for one direct zone. The "EH" versions are equipped with
CH electric heater as standard.
Components MAGIS HERCULES MINI HYDRO 12 T EH
