HERCULES SOLAR 26 2 ErP
Floor-standing condensing boiler with built-in stainless steel storage tank of 200 litres, solar system ready
The customer service provides
prompt answers within 24 hours.
prompt answers within 24 hours.
Technical data HERCULES SOLAR 26 2 ErP |
|
|---|---|
| Code | 3.025496 |
| C.H. Energy class | A |
| D.H.W. Energy class - Stated load profile | A / XL |
| Heat output C.H. kW | 23,6 |
| Heat output D.H.W. kW | 26,0 |
| Dimensions (HxWxD) mm | 1970 x 600 x 750 |
| Type | with storage tank of 200 litres |
| Modulating heat output | 12 - 100% |
| D.H.W. production (∆t 30°C) Continuous service l/min | 13,1 |
Technical data HERCULES SOLAR 26 2 ErP |
|
|---|---|
| Code | 3.025496 |
| C.H. Energy class | A |
| D.H.W. Energy class - Stated load profile | A / XL |
| Heat output C.H. kW | 23,6 |
| Heat output D.H.W. kW | 26,0 |
| Dimensions (HxWxD) mm | 1970 x 600 x 750 |
| Type | with storage tank of 200 litres |
| Modulating heat output | 12 - 100% |
| D.H.W. production (∆t 30°C) Continuous service l/min | 13,1 |
Gallery

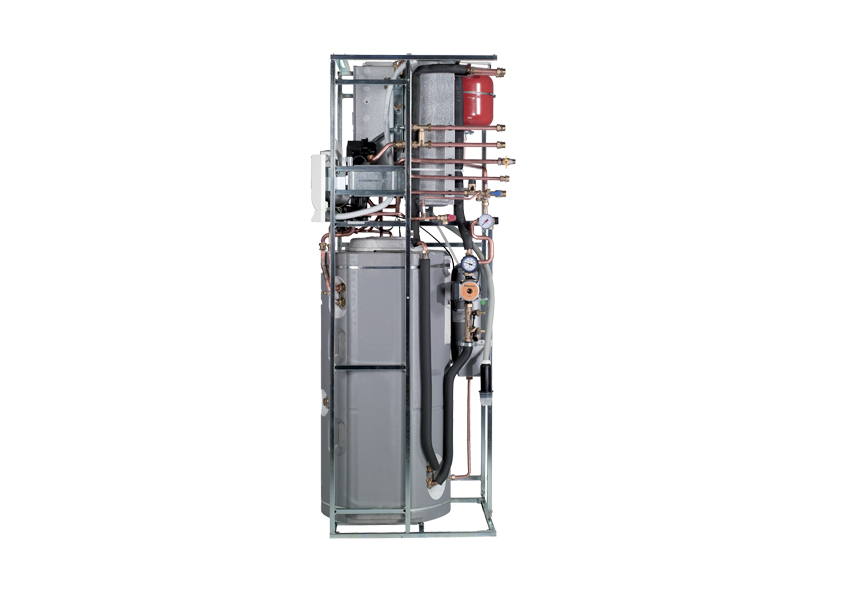

Floor standing, condensing boiler with built-in 200-liter stainless steel storage tank, connected to the solar circuit.
Nominal heat output: 26,0 kW DHW and 23,6 kW central heating.
It includes all components to be connected to solar collectors for the domestic hot water production.
The 200-liter stainless steel storage tank guarantees a great production of domestic hot water, making HERCULES SOLAR 26 2 ErP the ideal solution in those installation systems where several domestic hot water withdrawals are required at the same time and especially where Jacuzzis are installed. It allows the management of mixed-zones systems, thanks to the wide offer of optional kits that can be directly installed inside the boiler.
The pumps provided as standard with the boiler and the optional ones, along with the kit, are low electric consumption and allow maximum energy savings.
The wide and functional liquid crystals backlit display, allows an easy and immediate visualization of the main functioning information. The advanced electronics allows control of the solar circuit.
Thanks to low emissions of carbon monoxide (CO) and nitrogen oxide (NOX), HERCULES SOLAR 26 2 ErP belongs to class 5, the most environmentally-friendly class established by the European standards (UNI EN 297 e 483).
CARV2 (weekly chronothermostat and modulating remote control) Cod.3.021395
Class of device V* or VI
Contribution to the environmental heating seasonal energy efficiency 3%* or 4%
*as standard
CARV2 WIRELESS (radio wave weekly chronothermostat and modulating remote control) Cod.3.021623
Class of device V* or VI
Contribution to the environmental heating seasonal energy efficiency 3%* or 4%
* as standard
CRONO 7 (weekly digital chronothermostat) Cod.3.021622
ON/OFF room thermostat.
CRONO 7 WIRELESS (wireless weekly digital chronothermostat) Cod.3.021624
Wireless ON/OFF room thermostat.
External probe Cod.3.014083
Allows at the boiler to functioning at a variable temperature according to the climatic conditions.
Available for all models, except MYTHOS HP, NIKE/EOLO STAR and NIKE/EOLO MYTHOS.
Class of device II*, VI or VII
Contribution to seasonal space heating energy efficiency 2%*, 4% or 3,5%
* as standard
GSM telephonic control Cod.3.017182
For buildings not equipped with telephone network.
Relay board kit Cod.3.015350
Allows interface between zone valves and CAR V2 or SUPER CAR, to send an alarm signal, to manage external pump etc.
To be installed inside internal unit both in MAGIS COMBO V2 and MAGIS PRO V2
Safety thermostat kit Cod.3.019869
For HERCULES Condensing and HERCULES Solar.
Solar collector temperature probe kit for UB Inox Solar V2, HERCULES SOLAR 26 ErP, ARES TEC ErP, ARES PRO and MAGIS HERCULES ErP Cod.1.028812
As per standard with these products.
Super CAR (weekly thermostat and modulating remote control) Cod.3.016577
Available for: All Superior models and VICTRIX Zeus, HERCULES, ZEUS kW, AVIO kW, NIKE Mini 28 kW Special.
Class of device V* or VI
Contribution to the environmental heating seasonal energy efficiency 3%* or 4%
* as standard
Telephonic control Cod.3.013305
For buildings equipped with telephone network.
Anti-wind vertical terminal kit Ø 80 Cod.3.021721
For condensing boiler < 35 kW.
Concentric horizontal complete kit Ø 60/100 Cod.3.012000
Max lenght 12,9 m.
For condensing boiler < 35 kW.
Concentric vertical complete kit Ø 60/100 (red ocher colour) Cod.3.016833
for condensing boilers < 35 kW.
HERCULES Condensing B22 - B23 terminal kit Cod.3.020004
For air intake from technical installation room.
For HERCULES CONDENSING range
Horizontal concentric complete kit Ø 60/100 Short Cod.3.024598
Max lenght 11,9 m.
For condensing boiler < 35 kW.
Horizontal concentric complete kit Ø 60/100 with swivel terminal Cod.3.024267
Max lenght 9,9 m.
For condensing boiler < 35 kW except HP models.
Terminal vertical outlet kit Ø 80 Cod.3.015256
For condensing boiler < 35 kW.
Twin pipes complete kit Ø 80/80 Cod.3.012002
for condensing boilers < 35 kW and VICTRIX PRO 35/55/60/68/80 V2 (color RAL 9010)
2 high temperature zones kit for HERCULES SOLAR 26 ErP, HERCULES CONDENSING ErP Cod.3.025485
Modulating low consumption pumps.
2 low temperature zones kit for HERCULES SOLAR 26 ErP, HERCULES CONDENSING ErP Cod.3.025487
Modulating low consumption pumps.
Clock kit for Recirculation Cod.3.015431
To be used to manage the recirculation pump.
Condensate discharge pump kit Cod.3.026841
For floor standing boilers: compact condensate drain pump kit.
DIM 2 ZONES ErP Cod.3.025607
Multisystem distribution manifolds for the management of zone systems and systems requiring great water flows.
Hydraulic manifold, 2 low-consumption pumps and electronic board.
Hydraulic manifold, 2 low-consumption pumps and electronic board.
DIM 3 ZONES ErP Cod.3.025608
Multisystem distribution manifolds for the management of zone systems and systems requiring great water flows.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 3 low consumption pumps and electronic board.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 3 low consumption pumps and electronic board.
DIM BASIC ErP Cod.3.025606
Multisystem distribution manifolds for the management of zone systems and systems requiring great water flows.
Hydraulic manifold and 1 low-consumption pump.
Hydraulic manifold and 1 low-consumption pump.
DIM H-2LT ErP Cod.3.025610
Kit for mixed systems with 2 low temperature zones and 1 high temperature zone.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 3 low consumption pumps, 2 mixing valves and electronic board.
DIM H-LT ErP Cod.3.025609
Multisystem distribution manifolds for the management of zone systems and systems requiring great water flows.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 2 low consumption pumps, 1 mixing valve and electronic board.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 2 low consumption pumps, 1 mixing valve and electronic board.
High temperature second zone kit for HERCULES SOLAR 26 ErP, HERCULES CONDENSING ErP Cod.3.025484
Modulating low consumption pump.
Low temperature second zone kit for HERCULES SOLAR 26 2 ErP, HERCULES CONDENSING ErP Cod.3.025483
Modulating low consumption pump.
Recirculation kit Cod.3.030689
Domestic hot water pump included.
Available for: HERCULES Condensing ErP and HERCULES SOLAR 26 2 ErP.
Recirculation kit Cod.3.020001
Domestic hot water pump included.
Available for: HERCULES Condensing ErP and HERCULES SOLAR 26 2 ErP.
Solar connection kit for HERCULES SOLAR 26 ErP Cod.3.021382
For HERCULES SOLAR 26 ErP
For alignment of solar circuit in template.
Solar panel kit for HERCULES Condensing ErP Cod.3.019998
It includes pipes and fittings. For connecting 1 Flat-Plate or Vacuum Collector.
It must be used coupled with the typical BASIC SOL TOP and BASIC SOL LUX TOP packs.
