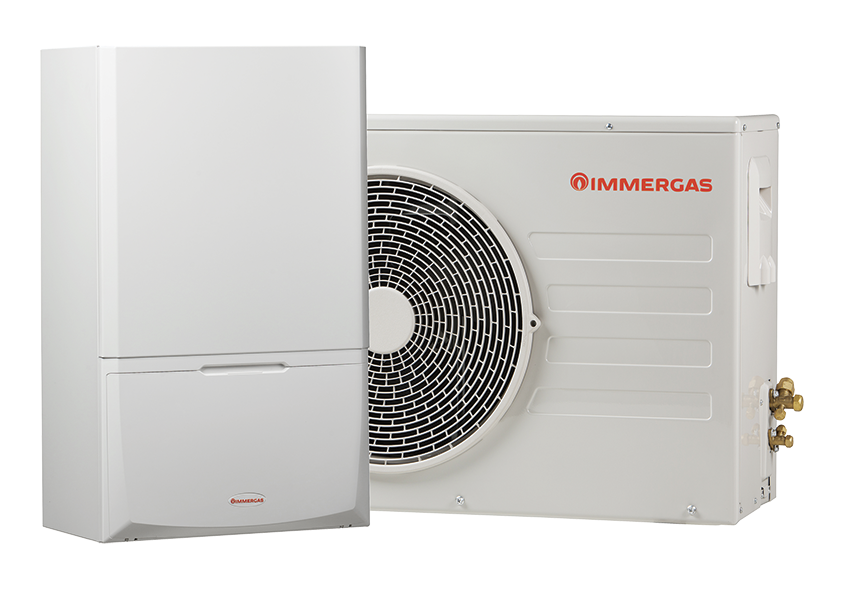

MAGIS COMBO 14 PLUS V2 with SUPER TRIO TOP
Hybrid solution for recessed or in-house installation
The customer service provides
prompt answers within 24 hours.
prompt answers within 24 hours.
Ideal for new buildings
Standard thermoregulation
Heating and cooling
Technical data MAGIS COMBO 14 PLUS V2 with SUPER TRIO TOP |
|
|---|---|
| Code | 3.030823 |
| DHW storage tank (litres) | 250 |
| Plant zones (n.) | 1 direct |
Technical data MAGIS COMBO 14 PLUS V2 with SUPER TRIO TOP |
|
|---|---|
| Code | 3.030823 |
| DHW storage tank (litres) | 250 |
| Plant zones (n.) | 1 direct |
Gallery
MORE VALUE TO PROPERTY
Combined with the heat pump, SUPER TRIO TOP respects the obligations on the use of renewable sources and provides 3 different services: heating, cooling and domestic hot water in large quantity.
SUPER TRIO TOP allows also to achieve very high energy classes in new homes and to improve the class energy of the building /system on the existing ones. This allows the value per square meter of the home grows and the investment pays off immediately.
SPACE-SAVING SOLUTIONS
SUPER TRIO TOP integrates into the building structures and saves living space thanks to the specific CONTAINER for recessed installation. The technical box DOMUS CONTAINER allows indoor installations with rigorous and clean aesthetics.
GREAT COMFORT FOR MULTIPLE BATHROOMS AND WHIRLPOOL
With a 250 litres storage tank, SUPER TRIO TOP supplies single homes, houses, apartments large in size or requiring a lot of domestic hot water when installing tanks whirlpool or multiple withdrawals are expected.
LESS ENERGY CONSUMPTION FOR HOT WATER
SUPER TRIO TOP allows to integrate the production of domestic hot water both with the heat pump and with the solar thermal. In fact, the appliance offers an option kit that can be inserted inside of the chosen system.
OPTIMIZATION OF ELECTRICITY CONSUMPTION
For those who want to minimize electricity consumption, SUPER TRIO TOP takes advantage of the photovoltaic system by running the heat pump with the free energy of the sun, increasing savings in the most way ecological.
2 relays board kit Cod.3.026302
To be installed for the deumidifiers management without in absence of system manager kit.
Dedicated to MAGIS PRO V2 and MAGIS COMBO V2
CRONO 7 (weekly digital chronothermostat) Cod.3.021622
ON/OFF room thermostat.
CRONO 7 WIRELESS (wireless weekly digital chronothermostat) Cod.3.021624
Wireless ON/OFF room thermostat.
DOMINUS interface kit Cod.3.026273
To control heat pumps or hybrid systems and display operation data by means DOMINUS App.
Installed before your modem/router wireless (not supplied by Immergas), you can communicate with the appliance circuit board from any location.
External probe Cod.3.015266
For single installation of VICTRIX PRO V2.
For MAGIS COMBO V2, MAGIS PRO V2, MAGIS COMBO PLUS V2, MAGIS HERCULES PRO, MAGIS HERCULES PRO MINI/EH, MAGIS HERCULES MINI HYDRO, TRIO PACK ELECTRIC, TRIO HYDRO system ELECTRIC and MAGIS M/EH.
GSM telephonic control Cod.3.017182
For buildings not equipped with telephone network.
Low temperature safety thermostat kit Cod.3.019229
For generators settled up with low temperature
Mod-bus temperature and humidity sensor Cod.3.030992
To be used with radiant systems that also work in cooling mode
Relay board kit Cod.3.015350
Allows interface between zone valves and CAR V2 or SUPER CAR, to send an alarm signal, to manage external pump etc.
To be installed inside internal unit both in MAGIS COMBO V2 and MAGIS PRO V2

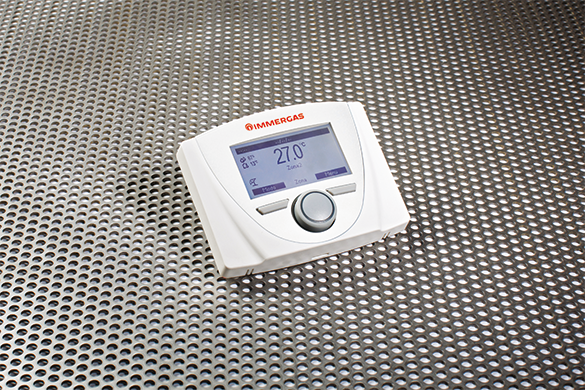

Remote Control Panel Cod.3.030863
Modulating chronotermostat, remote control with temperature/humidity sensor
Room hygrostat Cod.3.023302
To be used with radiant systems that also work in cooling mode.
Telephonic control Cod.3.013305
For buildings equipped with telephone network.
1 extension pipe Ø 80 2 m long Cod.3.016837
for VICTRIX PRO 35/55/60/68/80 V2
1 extension pipe Ø 80 2 m long Cod.3.016837
for condensing boilers
4 extension pipes Ø 80 kit 0,5 m long Cod.3.014642
for condensing boilers
4 x 90° bends Ø 80 kit Cod.3.012091
for condensing boilers
45° bend Ø 60/100 kit Cod.3.012095
For condensing boiler < 35 kW.
45° bend Ø 80 kit Cod.3.012092
for condensing boilers
90° bend Ø 60/100 kit Cod.3.012093
For condensing boiler < 35 kW.
Anti-wind vertical terminal kit Ø 80 Cod.3.021721
For condensing boiler < 35 kW.
Concentric horizontal complete kit Ø 60/100 Cod.3.012000
Max lenght 12,9 m.
For condensing boiler < 35 kW.
Concentric vertical complete kit Ø 60/100 (red ocher colour) Cod.3.016833
for condensing boilers < 35 kW.
Extension pipe kit Ø 60/100 0,5 m long Cod.3.014643
For condensing boiler < 35 kW.
Extension pipe kit Ø 60/100 1 m long Cod.3.012089
For condensing boiler < 35 kW.
Flanged stub-pipe + bend + extension pipe Ø 80 for flue discharge Cod.3.016365
For condensing boilers < 35 kW.
Gasket kit Ø 125 Cod.3.015345
Gasket kits 10 pcs. Ø 80 Ø 80 Cod.3.015378
Gasket kits 10 pcs. Ø 80 Ø 80/125 Cod.3.015343
Horizontal concentric complete kit Ø 60/100 Short Cod.3.024598
Max lenght 11,9 m.
For condensing boiler < 35 kW.
Horizontal concentric complete kit Ø 60/100 with swivel terminal Cod.3.024267
Max lenght 9,9 m.
For condensing boiler < 35 kW except HP models.
Twin pipes complete kit Ø 80/80 Cod.3.012002
for condensing boilers < 35 kW and VICTRIX PRO 35/55/60/68/80 V2 (color RAL 9010)
Additional 2nd mixed zone SUPER TRIO TOP Cod.3.031186
Additional 2nd mixed zone SUPER TRIO TOP
Composed by 1 low consumption pump, mixing valve and hydraulic connections.
Composed by 1 low consumption pump, mixing valve and hydraulic connections.
Aesthetic upper cover for DOMUS CONTAINER for SUPER TRIO/SUPER TRIO TOP (Technical box) Cod.3.030484
Anti freeze protection kit -15 °C Cod.3.017324
Anti freeze protection kit -15 °C
For TT versions, VICTRIX SUPERIOR/PLUS, VICTRIX ZEUS, VICTRIX EXA, TERA VIP, VICTRIX TERA/PLUS, OMNIA, MAGIS PRO V2 and MAGIS COMBO V2.
Bottom connection kit for SUPER TRIO TOP Cod.3.031193
To be installed inside of DOMUS CONTAINER or CONTAINER for SUPER TRIO TOP

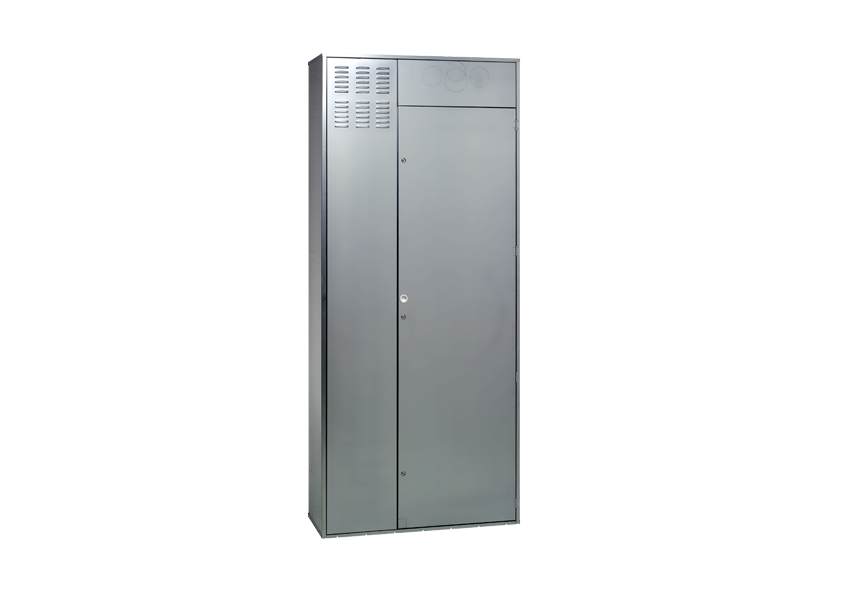

CONTAINER for SUPER TRIO/SUPER TRIO TOP (Recessed frame) Cod.3.030394
Recessed frame for solutions SUPER TRIO/SUPER TRIO TOP with MAGIS PRO V2 or MAGIS COMBO PLUS.
is the first of the main components of SUPER TRIO/SUPER TRIO TOP systems.
It allows the housing of the main components (except for the heat pump).
It can be ordered and installed during the building planning stage and provides the installer with all the system features for subsequent installation of generators, hydraulic parts and flues (if any). Front access enables total maintenance of the system.
Dimensions (H x W x D) mm 2200 x 1100 x 495

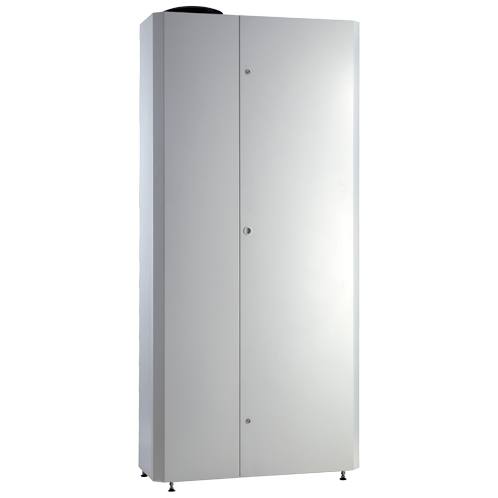

DOMUS CONTAINER for SUPER TRIO/SUPER TRIO TOP (Technical box) Cod.3.030393
Technical box for solutions SUPER TRIO/SUPER TRIO TOP with MAGIS PRO V2 and MAGIS COMBO PLUS.
is the first of the main components of SUPER TRIO/SUPER TRIO TOP systems for indoor installations. It allows the housing of the main components (except for the heat pump).
It blends easily into any room and does not require no brickwork for subsequent installation of generators, hydraulic components and flues (if any).
Front opening enables total system maintenance.
Dimensions (H x W x D) mm 2110 x 1160 x 520
Dehumidifier back frame kit Cod.3.022146
Dehumidifier front grille kit Cod.3.022147
Dehumidifier kit Cod.3.021529
Only for recessed installation with codes 3.022146 and 3.022147
External cover kit with acoustical insulation for ZENITAIR-MONO Cod.3.030636
Anti-insect net and anti-wind in pre-painted steel, alternative to the one available with ZENITAIR-MONO.
HYDRO 3 V2 Cod.3.033625
Wall-hung hydronic fancoil with LCD remote control and 3-way valve with micro switch on-off, as standard
HYDRO 4 V2 Cod.3.033626
Wall-hung hydronic fancoil with LCD remote control and 3-way valve with micro switch on-off, as standard
HYDRO FS 200 Cod.3.028500
Floor standing hydronic fancoil
HYDRO FS 400 Cod.3.028501
Floor standing hydronic fancoil
HYDRO FS 600 Cod.3.028502
Floor standing hydronic fancoil
HYDRO FS 800 Cod.3.028503
Floor standing hydronic fancoil
HYDRO FS 1000 Cod.3.028505
Floor standing hydronic fancoil
Lateral connection kit for SUPER TRIO TOP Cod.3.031194
To be installed inside of DOMUS CONTAINER or CONTAINER for SUPER TRIO TOP
MAGIS COMBO 12-14-16 PLUS V2 connection kit for SUPER TRIO TOP Cod.3.031699
Per soluzioni MAGIS COMBO PLUS 12-14-16 con SUPER TRIO TOP.
Rear connection kit for SUPER TRIO TOP Cod.3.031195
To be installed inside of DOMUS CONTAINER or CONTAINER for SUPER TRIO TOP

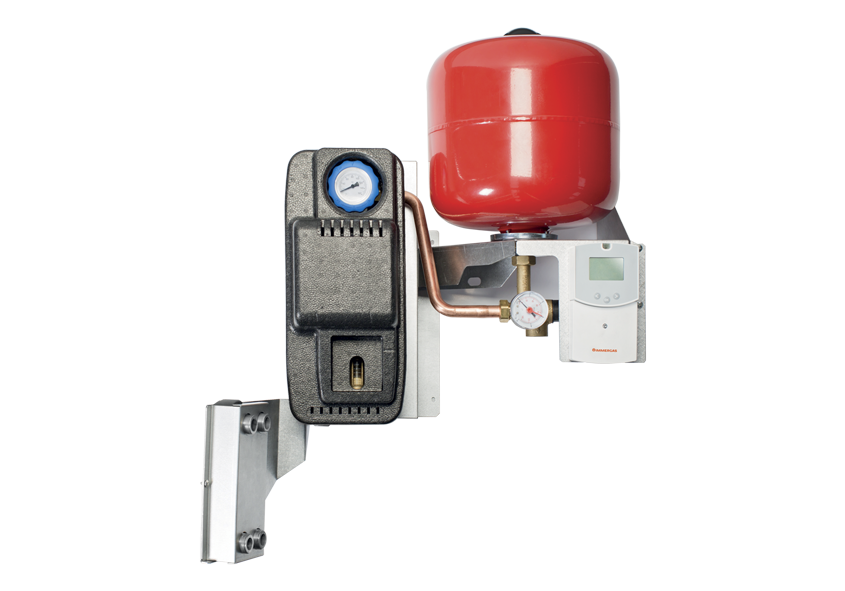

Solar kit for SUPER TRIO TOP Cod.3.031189
Solar kit for SUPER TRIO TOP.
Wall mounting brackets for external unit Cod.3.034758
For outdoor unit of MAGIS COMBO V2, MAGIS COMBO PLUS V2, TRIO PACK, TRIO HYDRO, MAGIS HERCULES PRO, MAGIS PRO V2, MAGIS HERCULES PRO MINI, MAGIS HERCULES MINI HYDRO, THOR, GOTHA and MULTI 18-27.
ZENITAIR MONO Cod.3.030601
Decentralised mechanical ventilation unit, easy to install, with alternate flow and heat recovery core.
Multifunction remote controller, with LCD display to visualise the status of the unit supplied as standard.
