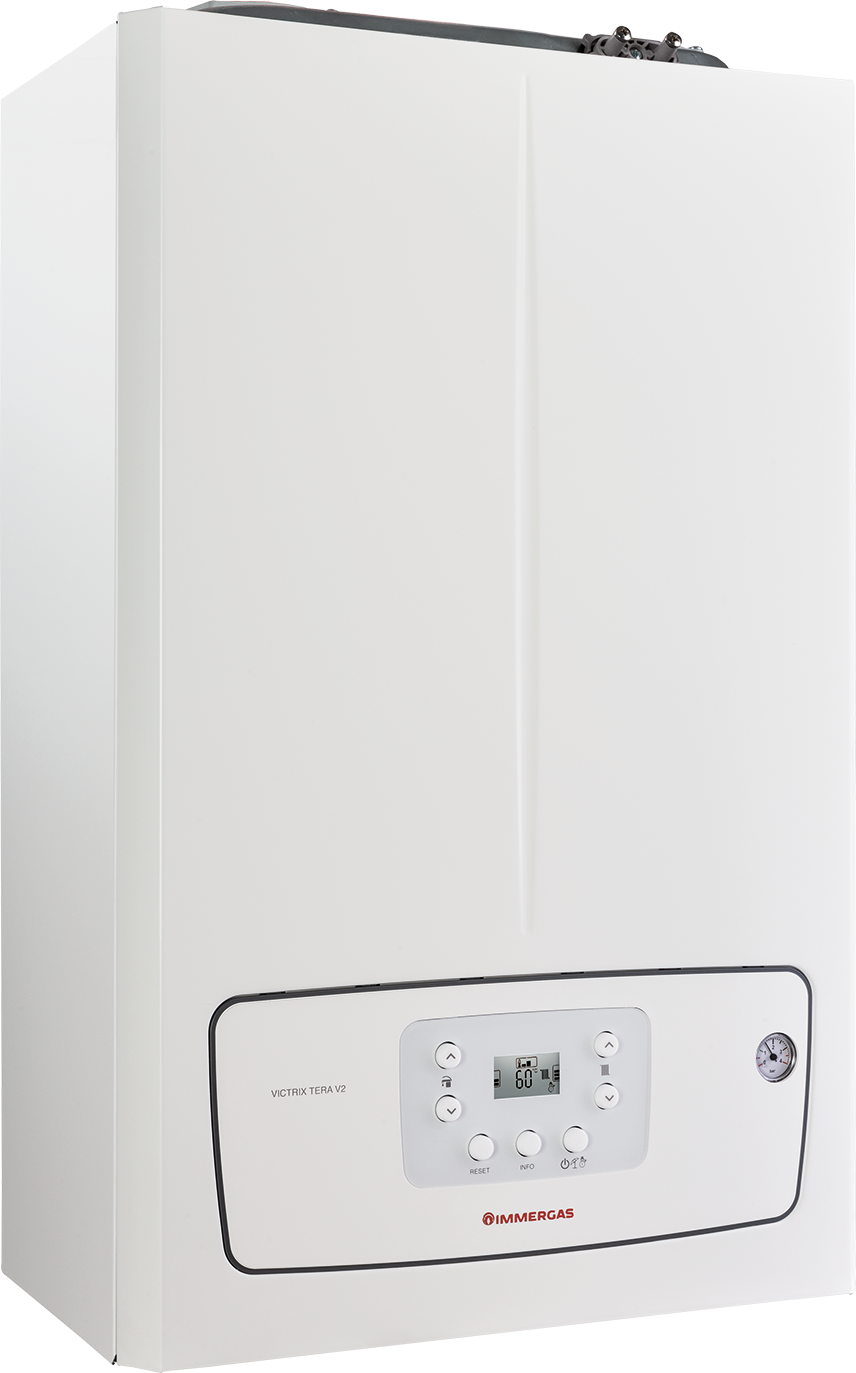

VICTRIX TERA V2 35 PLUS EU

Wall-hung condensing boiler for heating only

The customer service provides
prompt answers within 24 hours.
Compact dimensions
Easy installation

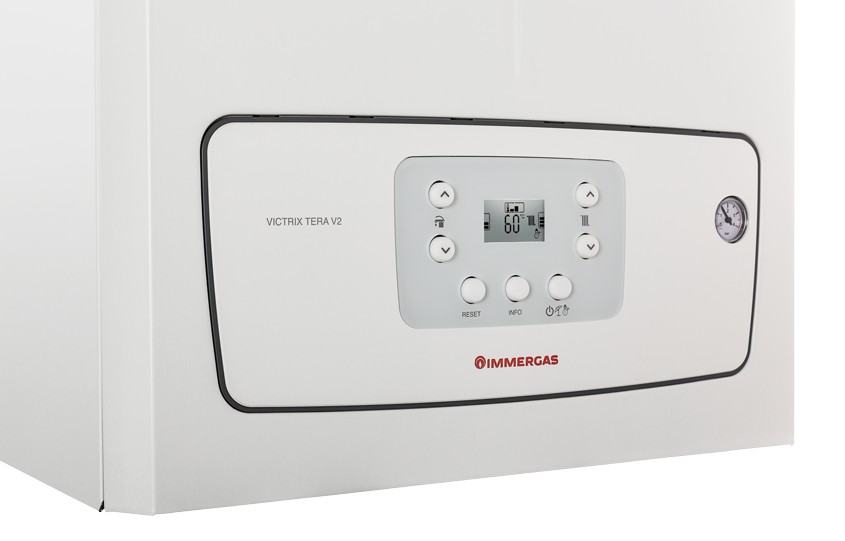

User-friendly interface

Technical data VICTRIX TERA V2 35 PLUS EU

Code 3.032934
custom Array
C.H. Energy class A
Heat output C.H. kW 32,0
Heat output D.H.W. kW 37,3
Dimensions (HxWxD) mm 748 x 440 x 253
Type combi
Modulating heat output 19 - 100 %

Technical data VICTRIX TERA V2 35 PLUS EU

Code 3.032934
Product plus HYDROGEN READY 20%
C.H. Energy class A
Heat output C.H. kW 32,0
Heat output D.H.W. kW 37,3
Dimensions (HxWxD) mm 748 x 440 x 253
Type combi
Modulating heat output 19 - 100 %

Gallery

  • Remarkable compactness
  • Aesthetics with greater attention to details
  • It works with methane, LPG or 20% hydrogen blend
  • 94% seasonal efficiency to reach a higher energy classification (A+) in combination with Modulating Remote Controls (ie. CARV2 or SMARTECH PLUS)
  • Wide range: 3 combi versions and 2 for heating only which can be combined with storage tanks of various capacities.
  • It allows the renovation of old chimneys even in case of small diameters
  • It can be connected to collective flues designed in positive pressure, thanks to safety devices equipment and by using a specific kit option
  • NOx class 6
  • Possibility of single installation or in cascade (up to 8 appliances, thanks to cascade option kit cod. 3.020355)
  • Connection to Immerstor range by means option kit 3.024609 (in combination with connection kit code 3.024907)
...

CARV2 (weekly chronothermostat and modulating remote control)   Cod.3.021395

Class of device V* or VI

Contribution to the environmental heating seasonal energy efficiency 3%* or 4%

*as standard

...

CARV2 WIRELESS (radio wave weekly chronothermostat and modulating remote control)   Cod.3.021623

Class of device V* or VI

Contribution to the environmental heating seasonal energy efficiency 3%* or 4%

* as standard

...

CRONO 7 (weekly digital chronothermostat)   Cod.3.021622

ON/OFF room thermostat.



...

CRONO 7 WIRELESS (wireless weekly digital chronothermostat)   Cod.3.021624

Wireless ON/OFF room thermostat.





...

Cascade and zone regulator kit   Cod.3.015244

ON-OFF adjustment, modulation and malfunctions of the VICTRIX PRO in cascade (max 8). It can manage any climatic zone regulators in the system (max 3 plus 1 dedicated to the hot tap water circuit).
...

Electrical box cover plate kit for SMARTECH PLUS   Cod.3.031013

It allows the covering of the wall hole for electrical boxes type 503.

...

Expansion kit for SMARTECH PLUS   Cod.3.030911

For controlling the temperature in several areas of the house (example living and sleeping areas).

The kit includes: additional SMART thermostat and wi-fi relay (in this case the wi-fi network is required).



...

External probe   Cod.3.014083

Allows at the boiler to functioning at a variable temperature according to the climatic conditions.
Available for all models, except MYTHOS HP, NIKE/EOLO STAR and NIKE/EOLO MYTHOS.


Class of device II*, VI or VII
Contribution to seasonal space heating energy efficiency 2%*, 4% or 3,5%

* as standard

...

External probe kit (for cascade installation)   Cod.3.024511

Paired with cascade and zone regulator kit, it optimizes energy
consumption by adjusting the plant delivery temperature for variable
temperature functioning

...

Flow probe kit   Cod.3.015267

To be located on the delivery side of the plant, after the hydraulic
separator, it allows the cascade and zone regulator to manage the
delivery temperature of the plant or of the mixed zones available

...

GSM telephonic control   Cod.3.017182

For buildings not equipped with telephone network.

...

Low temperature safety thermostat kit   Cod.3.019229

For generators settled up with low temperature

...

MINI CRD (MINI weekly chronothermostat and modulating remote control)   Cod.3.020167

Class of device V* or VI

Contribution to the environmental heating seasonal energy efficiency 3%* or 4%

* as standard

...

Modulating room thermostat   Cod.3.015245

Electrically connected to cascade and zone regulator, serves to manage climatic conditions of one of system zone. Allows control of room temperature only.

...

Multi-zone electronic board   Cod.3.028444

It can manage 4 zones at the same temperature or 1 mixed and 1 direct zone by remote modulating controls (ie. CAR V2).

For VICTRIX ZEUS, VICTRIX MAIOR TT/X, VICTRIX TT ErP/X, VICTRIX EXA/X, VICTRIX TERA VIP, VICTRIX TERA/PLUS, VICTRIX OMNIA, MYTHOS HP, NIKE/AVIO ECO and NIKE STAR 24.

...

SMARTECH PLUS - SMART remote control   Cod.3.030909

Hi-tech smart wireless remote control with Bluetooth technology

The kit includes:
• Chronothermostat (to be placed where you want to adjust the temperature)
• Gateway (to be connected to the boiler or to the internet network at home - power supply 230 V)
• Wall fixing base (with leveling bubble integrated)
• Table stand
• 2 power batteries (as standard)
• Functioning room temperature: 0 - +40 °C
• Protection rating IP 20


Temperature control class: V* or VI
Contribution to seasonal space heating energy efficiency 3%* or 4%



*default settings.

...

Tele-management kit 2.0   Cod.3.029832

Can be combined exclusively with the cascade and zone regulator for connection to an ethernet network or via router/modem to an ADSL line for connection to a remote system.

...

Telephonic control   Cod.3.013305

For buildings equipped with telephone network.

...

VICTRIX SUPERIOR 35 PLUS and VICTRIX TERA 35 PLUS EU cascade kit   Cod.3.020355

To match VICTRIX SUPERIOR 35 PLUS and VICTRIX TERA 35 PLUS V2 EU in cascade
Electric interface Gas boiler-Cascade and zones regulator kit; it is necessary one interface each gas boiler.

...

Wall box kit for cascade and zone regulator   Cod.3.015265

If the cascade and zone regolator is not install inside an electrical box.

...

Zone control unit V2 kit   Cod.3.030912

Control unit for external circulators/zone valves to manage 3 zones (2 mixed and 1 direct).

...

Zone manager kit   Cod.3.015264

Electrically connected to cascade and zone regulator, serves to manage climatic conditions of one of system zone, and allow remote control of the cascade and zone regulator.
...

Anti-wind vertical terminal kit Ø 80   Cod.3.021721

For condensing boiler < 35 kW.

...

Concentric horizontal outlet Ø 60/100   Cod.3.016836

for condensing boilers < 35 kW.

...

Concentric vertical complete kit Ø 60/100 (red ocher colour)   Cod.3.016833

for condensing boilers < 35 kW.

...

Cover kit for VICTRIX TERA V2/PLUS V2   Cod.3.032844

For external installations, in partially protected places

...

Flanged stub-pipe + bend + extension pipe Ø 80 for flue discharge   Cod.3.016365

For condensing boilers < 35 kW.

...

Horizontal concentric complete kit Ø 60/100 Short   Cod.3.024598

Max lenght 11,9 m.
For condensing boiler < 35 kW.

...

Horizontal concentric complete kit Ø 60/100 with swivel terminal   Cod.3.024267

Max lenght 9,9 m.
For condensing boiler < 35 kW except HP models.
...

Horizontal concentric swivel outlet Ø 60/100   Cod.3.027408

for condensing boilers < 35 kW.

...

Terminal vertical outlet kit Ø 80   Cod.3.015256

For condensing boiler < 35 kW.

...

Twin pipes complete kit Ø 80/80   Cod.3.012002

for condensing boilers < 35 kW and VICTRIX PRO 35/55/60/68/80 V2 (color RAL 9010)

...

2 litres additional expansion vessel   Cod.3.017514

Available for: VICTRIX, VICTRIX X.
...

All-purpose connection kit for wall-hung combi boilers   Cod.3.011667

For wall-hung combi boilers and also for wall-hung with built-in storage tank.

...

Anti freeze protection kit -15 °C   Cod.3.017324

Anti freeze protection kit -15 °C
For TT versions, VICTRIX SUPERIOR/PLUS, VICTRIX ZEUS, VICTRIX EXA, TERA VIP, VICTRIX TERA/PLUS, OMNIA, MAGIS PRO V2 and MAGIS COMBO V2.

...

Condensate discharge pump kit   Cod.3.026374

For wall-hung boilers: compact condensate drain pump kit.

...

Connection kit for VICTRIX X TT, VICTRIX X TT ErP, VICTRIX EXA 24 X ErP and VICTRIX TERA PLUS V2 EU   Cod.3.024907

For the installation of heating only boilers.

...

DIM 2 ZONES ErP   Cod.3.025607

Multisystem distribution manifolds for the management of zone systems and systems requiring great water flows.
Hydraulic manifold, 2 low-consumption pumps and electronic board.
...

DIM 3 ZONES ErP   Cod.3.025608

Multisystem distribution manifolds for the management of zone systems and systems requiring great water flows.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 3 low consumption pumps and electronic board.
...

DIM BASIC ErP   Cod.3.025606

Multisystem distribution manifolds for the management of zone systems and systems requiring great water flows.
Hydraulic manifold and 1 low-consumption pump.
...

DIM H-2LT ErP   Cod.3.025610

Kit for mixed systems with 2 low temperature zones and 1 high temperature zone.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 3 low consumption pumps, 2 mixing valves and electronic board.

...

DIM H-LT ErP   Cod.3.025609

Multisystem distribution manifolds for the management of zone systems and systems requiring great water flows.
High energetic efficiency thanks to class A pumps. Hydraulic manifold, 2 low consumption pumps, 1 mixing valve and electronic board.
...

Magnetic cyclone filter kit   Cod.3.024176

Magnetic cyclone filter kit to prevent system ferrous residual (only for internal installation).

Available for wall-hung condensing boilers.

...

Mixing valve kit   Cod.3.027084

For multi-zone electronic board (code 3.028444)

...

Probe kit for PT 1000 solar collector   Cod.3.019374

Used to manage solar plant paired to boiler configurations with cascade
and zone regulator kit

...

Shut off knobs   Cod.3.5324

For wall-hung outdoor boilers.

...

Shut off knobs with filter   Cod.3.015854

For wall-hung boilers.

...

Solar valve   Cod.3.018911

Allows the connection between combi boiler and solar system.
Available for: VICTRIX Superior TOP, VICTRIX, MAIOR EOLO, NIKE Mini 28 kW Special, MINI NIKE/EOLO and NIKE/EOLO Star.
...

Storage tank connection kit for VICTRIX X TT ErP   Cod.3.024609

Storage tank connection kit for VICTRIX X TT ErP, VICTRIX EXA 24 X ErP, VICTRIX X TT and VICTRIX MAIOR 35 X TT ErP.

...

Storage tank probe kit   Cod.3.015268

Used to manage the temperature of the water tank unit paired, in boiler
rooms, with cascade and zone regulator kit

...

kit containing bottom guard for condensing boilers   Cod.3.027341

For wall-hung condensing boilers.
