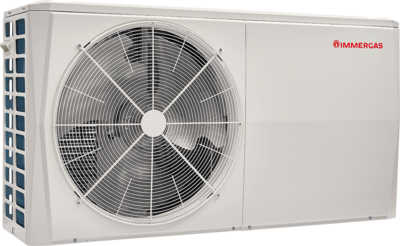

MAGIS M6 EH3
Hydronic monobloc single-phase heat pumps
The customer service provides
prompt answers within 24 hours.
prompt answers within 24 hours.
Ideal for new buildings
Standard thermoregulation
Heating and cooling
Technical data MAGIS M6 EH3 |
|
|---|---|
| Code | 3.033780 |
| C.H. Energy class at 55 °C | A++ |
| C.H. Energy class at 35 °C | A+++ |
| Heating output kW | 6,35 |
| Cooling output kW | 6,50 |
| Dimensions (HxWxD) mm | 712 x 1295 x 429 |
| Refrigerant gas | R32 |
| COP | 4,95 |
| EER | 4,80 |
| Weight (kg) | 86 |
Technical data MAGIS M6 EH3 |
|
|---|---|
| Code | 3.033780 |
| C.H. Energy class at 55 °C | A++ |
| C.H. Energy class at 35 °C | A+++ |
| Heating output kW | 6,35 |
| Cooling output kW | 6,50 |
| Dimensions (HxWxD) mm | 712 x 1295 x 429 |
| Refrigerant gas | R32 |
| COP | 4,95 |
| EER | 4,80 |
| Weight (kg) | 86 |
Gallery
Hydronic monobloc single-phase heat pumps
• Pre-loaded refrigerant fluid R32;
• Remote control panel (with chronothermostat function) as standard;
• 3 kW heating electric heater and condensate antifreeze heating cable as standard;
• Including external probe, condensate discharge fitting, “Y" filter, 3 bar valve, 8 litres D.H.W. expansion vessel, low consumption pump system; probe to manage D.H.W. or 2nd mixed zone heating set point till 65°C
• Possibillity to realize integrated system (MAGIS M + gas boiler) with system controller
• Possibility to manage 1 zone heating/cooling, 1 zone only heating and 1 mixing valve
• Photovoltaic contact/Smart Grid
• Simple and multiple cascade
CRONO 7 (weekly digital chronothermostat) Cod.3.021622
ON/OFF room thermostat.
CRONO 7 WIRELESS (wireless weekly digital chronothermostat) Cod.3.021624
Wireless ON/OFF room thermostat.
EMR 12 VDC relay kit Cod.3.023945
only for system controller
Probe kit for MAGIS M4-30 Cod.3.033324
To be used for DHW temperature control with storage tank units, for mixed zone managing or to control puffer/buffer temperature but also to manage solar plants.

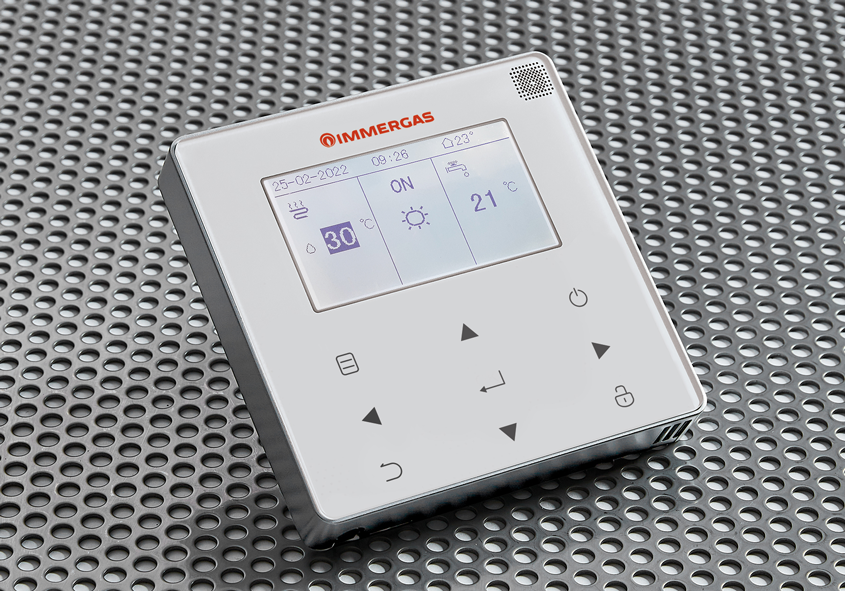

Remote control kit Cod.3.023364
Class of device V or VI*
Contribution to the environmental heating seasonal energy efficiency 3% or 4%*
* as standard
Room hygrostat Cod.3.023302
To be used with radiant systems that also work in cooling mode.
SSR 6 VDC relay kit Cod.3.023946
only for system controller
Storage tank NTC probe Cod.3.019375
Allows to check the DHW temperature of a Storage Tank Unit or puffer
Provided as per standard on all Storage Tank Units in the catalogue.

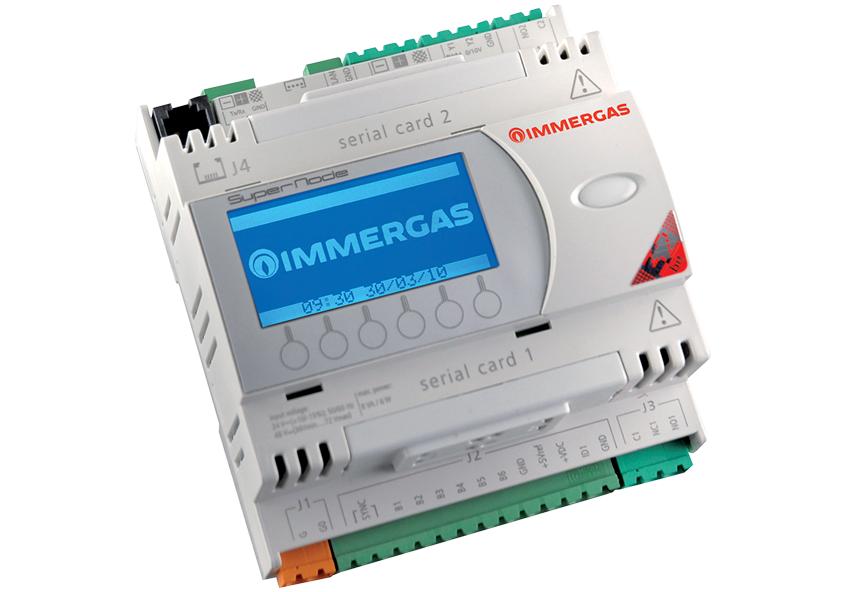

System controller Cod.3.021522
Class of device VI* or VIII
Contribution to the environmental heating seasonal energy efficiency 4%* or 5%
* as standard
Temperature/humidity active sensor kit Cod.3.021524
To be used with radiant systems that also work in cooling mode.
Class of device V or VI*
Contribution to the environmental heating seasonal energy efficiency 3%* or 4%*
* as standard
3-way valve kit Cod.3.020632
12 litre system expansion vessel kit Cod.3.011679
for plants with MAGIS M.
Additional 2 kW electric resistance kit for OMNISTOR, INOXSTOR V2 and UB 550/750 Cod.3.020861
Power supply 230 or 400 Vac.
Additional 5 kW electric resistance kit for UB 1000/1500 and UB 750 Cod.3.020862
Power supply 230 or 400 Vac.
Antivibration supports (3 pieces) Cod.3.032854
For MAGIS M
Bracket kit for wall mounting 75 inertial storage tank Cod.3.027290
Bracket kit for wall mounting inertial storage tank 75 litres code 3.027288.
Connection kit with flexible pipes and shut-off knobs 1" Cod.3.025954
For MAGIS M4 and 6
Dehumidifier back frame kit Cod.3.022146
Dehumidifier front grille kit Cod.3.022147

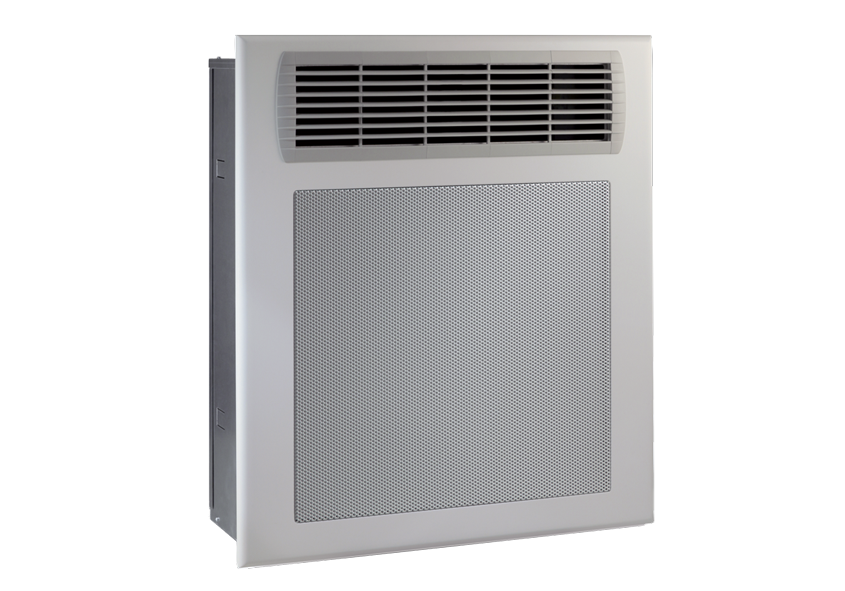

Dehumidifier kit Cod.3.021529
Only for recessed installation with codes 3.022146 and 3.022147
Distribution manifold kit for 1 direct and 2 mixed temperature zones Cod.3.021527
The kit includes an expansion for the system controller for each zone, a 24 Vac transformer and an NTC probe for each mixed delivery.
Wall-hung or recessed installation. Low consumption pumps.
Wall-hung or recessed installation. Low consumption pumps.
Distribution manifold kit for 2 mixed temperature zones Cod.3.021528
The kit includes an expansion for the system controller for each zone, a 24 Vac transformer and an NTC probe for each delivery.
Wall-hung or recessed installation. Low consumption pumps.
Wall-hung or recessed installation. Low consumption pumps.
External cover kit with acoustical insulation for ZENITAIR-MONO Cod.3.030636
Anti-insect net and anti-wind in pre-painted steel, alternative to the one available with ZENITAIR-MONO.
HYDRO 3 V2 Cod.3.033625
Wall-hung hydronic fancoil with LCD remote control and 3-way valve with micro switch on-off, as standard
HYDRO 4 V2 Cod.3.033626
Wall-hung hydronic fancoil with LCD remote control and 3-way valve with micro switch on-off, as standard
HYDRO FS 200 Cod.3.028500
Floor standing hydronic fancoil
HYDRO FS 400 Cod.3.028501
Floor standing hydronic fancoil
HYDRO FS 600 Cod.3.028502
Floor standing hydronic fancoil
HYDRO FS 800 Cod.3.028503
Floor standing hydronic fancoil
HYDRO FS 1000 Cod.3.028505
Floor standing hydronic fancoil
INOXSTOR 200 V2 Cod.3.027746
INOXSTOR 200 V2
Stainless steel storage tank units for DHW
Individual solar components
The range of new INOXSTOR stainless steel solar
storage tanks, is ideal to contain domestic hot water
with an inspection flange at the lower part.
The storage tanks are equipped with:
• 2 stainless steel coils water/water heat exchangers
• 2 probe-supports and NTC probe for Immergas
boiler connection < 35 kW
• thermometer
• double magnesium anode
• suitable flexible insulation which can be
disassembled (6 cm thick)
• pre-arranged to fix pump station to the body of the
storage tank
• pre-arranged to double electronic anode (optional)
code 3.025003
The use of this storage tank unit involves the installation of an appropriately
sized DHW expansion vessel and safety valve, not included in the supply.
Stainless steel storage tank units for DHW
Individual solar components
The range of new INOXSTOR stainless steel solar
storage tanks, is ideal to contain domestic hot water
with an inspection flange at the lower part.
The storage tanks are equipped with:
• 2 stainless steel coils water/water heat exchangers
• 2 probe-supports and NTC probe for Immergas
boiler connection < 35 kW
• thermometer
• double magnesium anode
• suitable flexible insulation which can be
disassembled (6 cm thick)
• pre-arranged to fix pump station to the body of the
storage tank
• pre-arranged to double electronic anode (optional)
code 3.025003
The use of this storage tank unit involves the installation of an appropriately
sized DHW expansion vessel and safety valve, not included in the supply.
OMNISTOR 300 Cod.3.027910
Ideal for connection to heat pumps.
The range of new OMNISTOR stainless steel storage
tanks, is ideal to contain domestic hot water with an
inspection flange at the lower part.
The storage tanks are equipped with:
• 1 stainless steel coils water/water heat exchanger
with oversized coil
• 2 probe-supports and NTC probe for Immergas heat
pump connection
• Thermometer
• Double magnesium anode
• Suitable flexible insulation which can be
disassembled (6 cm thick on OMNISTOR 300 and 8
cm thick on OMNISTOR 500)
• Pre-arranged to fix pump station to the body of the
storage tank with option kit (maximum 4 solar flat
plate-collectors)
• Pre-arranged to double electronic anode (option)
code 3.025003
The range of new OMNISTOR stainless steel storage
tanks, is ideal to contain domestic hot water with an
inspection flange at the lower part.
The storage tanks are equipped with:
• 1 stainless steel coils water/water heat exchanger
with oversized coil
• 2 probe-supports and NTC probe for Immergas heat
pump connection
• Thermometer
• Double magnesium anode
• Suitable flexible insulation which can be
disassembled (6 cm thick on OMNISTOR 300 and 8
cm thick on OMNISTOR 500)
• Pre-arranged to fix pump station to the body of the
storage tank with option kit (maximum 4 solar flat
plate-collectors)
• Pre-arranged to double electronic anode (option)
code 3.025003
OMNISTOR 500 Cod.3.027911
Ideal for connection to heat pumps.
The range of new OMNISTOR stainless steel storage
tanks, is ideal to contain domestic hot water with an
inspection flange at the lower part.
The storage tanks are equipped with:
• 1 stainless steel coils water/water heat exchanger
with oversized coil
• 2 probe-supports and NTC probe for Immergas heat
pump connection
• Thermometer
• Double magnesium anode
• Suitable flexible insulation which can be
disassembled (6 cm thick on OMNISTOR 300 and 8
cm thick on OMNISTOR 500)
• Pre-arranged to fix pump station to the body of the
storage tank with option kit (maximum 4 solar flat
plate-collectors)
• Pre-arranged to double electronic anode (option)
code 3.025003
The range of new OMNISTOR stainless steel storage
tanks, is ideal to contain domestic hot water with an
inspection flange at the lower part.
The storage tanks are equipped with:
• 1 stainless steel coils water/water heat exchanger
with oversized coil
• 2 probe-supports and NTC probe for Immergas heat
pump connection
• Thermometer
• Double magnesium anode
• Suitable flexible insulation which can be
disassembled (6 cm thick on OMNISTOR 300 and 8
cm thick on OMNISTOR 500)
• Pre-arranged to fix pump station to the body of the
storage tank with option kit (maximum 4 solar flat
plate-collectors)
• Pre-arranged to double electronic anode (option)
code 3.025003
Probe kit for PT 1000 solar collector Cod.3.019374
Used to manage solar plant paired to boiler configurations with cascade
and zone regulator kit
Vertical inertial storage tank 75 litre Cod.3.027288
Wall-hung (with bracket option kit) or floor-standing installation.
ZENITAIR MONO Cod.3.030601
Decentralised mechanical ventilation unit, easy to install, with alternate flow and heat recovery core.
Multifunction remote controller, with LCD display to visualise the status of the unit supplied as standard.
Hydronic monobloc single-phase heat pumps
• Pre-loaded refrigerant fluid R32;
• Remote control panel (with chronothermostat function) as standard;
• 3 kW heating electric heater and condensate antifreeze heating cable as standard;
• Including external probe, condensate discharge fitting, “Y" filter, 3 bar valve, 8 litres D.H.W. expansion vessel, low consumption pump system; probe to manage D.H.W. or 2nd mixed zone heating set point till 65°C
• Possibillity to realize integrated system (MAGIS M + gas boiler) with system controller
• Possibility to manage 1 zone heating/cooling, 1 zone only heating and 1 mixing valve
• Photovoltaic contact/Smart Grid
• Simple and multiple cascade
CRONO 7 (weekly digital chronothermostat) Cod.3.021622
ON/OFF room thermostat.
CRONO 7 WIRELESS (wireless weekly digital chronothermostat) Cod.3.021624
Wireless ON/OFF room thermostat.
EMR 12 VDC relay kit Cod.3.023945
only for system controller
Probe kit for MAGIS M4-30 Cod.3.033324
To be used for DHW temperature control with storage tank units, for mixed zone managing or to control puffer/buffer temperature but also to manage solar plants.
Remote control kit Cod.3.023364
Class of device V or VI*
Contribution to the environmental heating seasonal energy efficiency 3% or 4%*
* as standard
Room hygrostat Cod.3.023302
To be used with radiant systems that also work in cooling mode.
SSR 6 VDC relay kit Cod.3.023946
only for system controller
Storage tank NTC probe Cod.3.019375
Allows to check the DHW temperature of a Storage Tank Unit or puffer
Provided as per standard on all Storage Tank Units in the catalogue.
System controller Cod.3.021522
Class of device VI* or VIII
Contribution to the environmental heating seasonal energy efficiency 4%* or 5%
* as standard
Temperature/humidity active sensor kit Cod.3.021524
To be used with radiant systems that also work in cooling mode.
Class of device V or VI*
Contribution to the environmental heating seasonal energy efficiency 3%* or 4%*
* as standard
3-way valve kit Cod.3.020632
12 litre system expansion vessel kit Cod.3.011679
for plants with MAGIS M.
Additional 2 kW electric resistance kit for OMNISTOR, INOXSTOR V2 and UB 550/750 Cod.3.020861
Power supply 230 or 400 Vac.
Additional 5 kW electric resistance kit for UB 1000/1500 and UB 750 Cod.3.020862
Power supply 230 or 400 Vac.
Antivibration supports (3 pieces) Cod.3.032854
For MAGIS M
Bracket kit for wall mounting 75 inertial storage tank Cod.3.027290
Bracket kit for wall mounting inertial storage tank 75 litres code 3.027288.
Connection kit with flexible pipes and shut-off knobs 1" Cod.3.025954
For MAGIS M4 and 6
Dehumidifier back frame kit Cod.3.022146
Dehumidifier front grille kit Cod.3.022147
Dehumidifier kit Cod.3.021529
Only for recessed installation with codes 3.022146 and 3.022147
Distribution manifold kit for 1 direct and 2 mixed temperature zones Cod.3.021527
The kit includes an expansion for the system controller for each zone, a 24 Vac transformer and an NTC probe for each mixed delivery.
Wall-hung or recessed installation. Low consumption pumps.
Wall-hung or recessed installation. Low consumption pumps.
Distribution manifold kit for 2 mixed temperature zones Cod.3.021528
The kit includes an expansion for the system controller for each zone, a 24 Vac transformer and an NTC probe for each delivery.
Wall-hung or recessed installation. Low consumption pumps.
Wall-hung or recessed installation. Low consumption pumps.
External cover kit with acoustical insulation for ZENITAIR-MONO Cod.3.030636
Anti-insect net and anti-wind in pre-painted steel, alternative to the one available with ZENITAIR-MONO.
HYDRO 3 V2 Cod.3.033625
Wall-hung hydronic fancoil with LCD remote control and 3-way valve with micro switch on-off, as standard
HYDRO 4 V2 Cod.3.033626
Wall-hung hydronic fancoil with LCD remote control and 3-way valve with micro switch on-off, as standard
HYDRO FS 200 Cod.3.028500
Floor standing hydronic fancoil
HYDRO FS 400 Cod.3.028501
Floor standing hydronic fancoil
HYDRO FS 600 Cod.3.028502
Floor standing hydronic fancoil
HYDRO FS 800 Cod.3.028503
Floor standing hydronic fancoil
HYDRO FS 1000 Cod.3.028505
Floor standing hydronic fancoil
INOXSTOR 200 V2 Cod.3.027746
INOXSTOR 200 V2
Stainless steel storage tank units for DHW
Individual solar components
The range of new INOXSTOR stainless steel solar
storage tanks, is ideal to contain domestic hot water
with an inspection flange at the lower part.
The storage tanks are equipped with:
• 2 stainless steel coils water/water heat exchangers
• 2 probe-supports and NTC probe for Immergas
boiler connection < 35 kW
• thermometer
• double magnesium anode
• suitable flexible insulation which can be
disassembled (6 cm thick)
• pre-arranged to fix pump station to the body of the
storage tank
• pre-arranged to double electronic anode (optional)
code 3.025003
The use of this storage tank unit involves the installation of an appropriately
sized DHW expansion vessel and safety valve, not included in the supply.
Stainless steel storage tank units for DHW
Individual solar components
The range of new INOXSTOR stainless steel solar
storage tanks, is ideal to contain domestic hot water
with an inspection flange at the lower part.
The storage tanks are equipped with:
• 2 stainless steel coils water/water heat exchangers
• 2 probe-supports and NTC probe for Immergas
boiler connection < 35 kW
• thermometer
• double magnesium anode
• suitable flexible insulation which can be
disassembled (6 cm thick)
• pre-arranged to fix pump station to the body of the
storage tank
• pre-arranged to double electronic anode (optional)
code 3.025003
The use of this storage tank unit involves the installation of an appropriately
sized DHW expansion vessel and safety valve, not included in the supply.
OMNISTOR 300 Cod.3.027910
Ideal for connection to heat pumps.
The range of new OMNISTOR stainless steel storage
tanks, is ideal to contain domestic hot water with an
inspection flange at the lower part.
The storage tanks are equipped with:
• 1 stainless steel coils water/water heat exchanger
with oversized coil
• 2 probe-supports and NTC probe for Immergas heat
pump connection
• Thermometer
• Double magnesium anode
• Suitable flexible insulation which can be
disassembled (6 cm thick on OMNISTOR 300 and 8
cm thick on OMNISTOR 500)
• Pre-arranged to fix pump station to the body of the
storage tank with option kit (maximum 4 solar flat
plate-collectors)
• Pre-arranged to double electronic anode (option)
code 3.025003
The range of new OMNISTOR stainless steel storage
tanks, is ideal to contain domestic hot water with an
inspection flange at the lower part.
The storage tanks are equipped with:
• 1 stainless steel coils water/water heat exchanger
with oversized coil
• 2 probe-supports and NTC probe for Immergas heat
pump connection
• Thermometer
• Double magnesium anode
• Suitable flexible insulation which can be
disassembled (6 cm thick on OMNISTOR 300 and 8
cm thick on OMNISTOR 500)
• Pre-arranged to fix pump station to the body of the
storage tank with option kit (maximum 4 solar flat
plate-collectors)
• Pre-arranged to double electronic anode (option)
code 3.025003
OMNISTOR 500 Cod.3.027911
Ideal for connection to heat pumps.
The range of new OMNISTOR stainless steel storage
tanks, is ideal to contain domestic hot water with an
inspection flange at the lower part.
The storage tanks are equipped with:
• 1 stainless steel coils water/water heat exchanger
with oversized coil
• 2 probe-supports and NTC probe for Immergas heat
pump connection
• Thermometer
• Double magnesium anode
• Suitable flexible insulation which can be
disassembled (6 cm thick on OMNISTOR 300 and 8
cm thick on OMNISTOR 500)
• Pre-arranged to fix pump station to the body of the
storage tank with option kit (maximum 4 solar flat
plate-collectors)
• Pre-arranged to double electronic anode (option)
code 3.025003
The range of new OMNISTOR stainless steel storage
tanks, is ideal to contain domestic hot water with an
inspection flange at the lower part.
The storage tanks are equipped with:
• 1 stainless steel coils water/water heat exchanger
with oversized coil
• 2 probe-supports and NTC probe for Immergas heat
pump connection
• Thermometer
• Double magnesium anode
• Suitable flexible insulation which can be
disassembled (6 cm thick on OMNISTOR 300 and 8
cm thick on OMNISTOR 500)
• Pre-arranged to fix pump station to the body of the
storage tank with option kit (maximum 4 solar flat
plate-collectors)
• Pre-arranged to double electronic anode (option)
code 3.025003
Probe kit for PT 1000 solar collector Cod.3.019374
Used to manage solar plant paired to boiler configurations with cascade
and zone regulator kit
Vertical inertial storage tank 75 litre Cod.3.027288
Wall-hung (with bracket option kit) or floor-standing installation.
ZENITAIR MONO Cod.3.030601
Decentralised mechanical ventilation unit, easy to install, with alternate flow and heat recovery core.
Multifunction remote controller, with LCD display to visualise the status of the unit supplied as standard.
Related products
MAGIS HERCULES PRO MINI 6 EH
Split type mono-phase heat pump with 180 litres DHW storage tank
MAGIS HERCULES MINI HYDRO 12 T EH
Monobloc three-phase heat pump with 180 litres DHW storage tank
Contacts
Recupero Codice Tessera
Inserisci l’e-mail con cui sei registrato al Caius Club e il dato richiesto ti sarà inviato automaticamente.
Se non hai mai registrato la tua e-mail o se l'hai cambiata, comunicala subito a caiusclub@immergas.com o contatta il Club al numero verde 800 306 306.
Recupero Password
Inserisci il codice tessera e l’e-mail con cui sei registrato al Caius Club e il dato richiesto ti sarà inviato automaticamente.
Se non hai mai registrato la tua e-mail o se l'hai cambiata, comunicala subito a caiusclub@immergas.com o contatta il Club al numero verde 800 306 306.
