MAGIS PRO 16 V2
Spilt type reversible air-to-water inverter driven heat pump system composed by an external unit and a internal hydronic unit
The customer service provides
prompt answers within 24 hours.
prompt answers within 24 hours.
Noiseless
Easy installation
Heating and cooling
Technical data MAGIS PRO 16 V2 |
|
|---|---|
| Code | 3.030665 |
| C.H. Energy class at 55 °C | A+ |
| C.H. Energy class at 35 °C | A++ |
| Heating output kW | 16,00 |
| Cooling output kW | 15,00 |
| Internal Unit (HxWxD) mm | 780 x 440 x 340 |
| External Unit (HxWxD) mm | 1420 x 940 x 384 |
| Refrigerant gas | R410A |
| COP | 4,26 |
| EER | 3,62 |
| External unit empty appliance weight (kg) | 100,0 |
| Hydronic unit empty appliance weight (kg) | 38,5 |
Technical data MAGIS PRO 16 V2 |
|
|---|---|
| Code | 3.030665 |
| C.H. Energy class at 55 °C | A+ |
| C.H. Energy class at 35 °C | A++ |
| Heating output kW | 16,00 |
| Cooling output kW | 15,00 |
| Internal Unit (HxWxD) mm | 780 x 440 x 340 |
| External Unit (HxWxD) mm | 1420 x 940 x 384 |
| Refrigerant gas | R410A |
| COP | 4,26 |
| EER | 3,62 |
| External unit empty appliance weight (kg) | 100,0 |
| Hydronic unit empty appliance weight (kg) | 38,5 |
Gallery
Spilt type reversible air-to-water inverter driven heat pump system composed by an external unit and a internal unit
Heating output kW : 16,00; Cooling output kW : 15,00
New MAGIS PRO V2 heat pump system range are air-to-water appliances, designed to exploit outdoor air as renewable energy source. Such a kind of appliances are the ideal solution for central heating (maximum delivery temperature equal to 55 °C), cooling and domestic hot water production, thanks to the possible coupling with a separate storage tank unit. The “PRO" designation underlines the particular degreee of competence of the professional people involved in the design and installation process, to whom such a kind of technical solution is addressed; for instance, the completion of the refrigerant circuit and the connection between outdoor unit and the hydronic one, implies the posses for the installer of a spefic qualification (the so called F-Gas licence). Inverter driven compressor allows wide power-modulation range and low current absortion, succeeding in high level performances for more comfortable indoor climatic conditions.
Main features:
• Pre-loaded refrigerant fluid R410A
• High COP and EER values
• Maximum delivery temperature 55 °C
• Pre-arranged to manage up to 3 zones system
MAGIS PRO V2 are domestic-purpose-suit systems, and they are the ideal solution in new, high energy class buildings, even when located in extremely cold areas, with very low outdoor-winter-temperatures.
The very compact external unit (smaller than the most of hydronic heat pump models), installable both on balcony or fully outdoor, allows to MAGIS PRO SYSTEM enhanced positional flexibility together with a minimal aestethic effect on the overall style.
MAGIS PRO V2 can be installed in stand alone configuration, or combined with a boiler and other renewable energy sources in integrated or hybrid, compact systems, working in central heating, cooling and/or DHW production
2 relays board kit Cod.3.026302
To be installed for the deumidifiers management without in absence of system manager kit.
Dedicated to MAGIS PRO V2 and MAGIS COMBO V2
CRONO 7 (weekly digital chronothermostat) Cod.3.021622
ON/OFF room thermostat.
CRONO 7 WIRELESS (wireless weekly digital chronothermostat) Cod.3.021624
Wireless ON/OFF room thermostat.
DOMINUS interface kit Cod.3.026273
To control heat pumps or hybrid systems and display operation data by means DOMINUS App.
Installed before your modem/router wireless (not supplied by Immergas), you can communicate with the appliance circuit board from any location.
External probe Cod.3.015266
For single installation of VICTRIX PRO V2.
For MAGIS COMBO V2, MAGIS PRO V2, MAGIS COMBO PLUS V2, MAGIS HERCULES PRO, MAGIS HERCULES PRO MINI/EH, MAGIS HERCULES MINI HYDRO, TRIO PACK ELECTRIC, TRIO HYDRO system ELECTRIC and MAGIS M/EH.
Low temperature safety thermostat kit Cod.3.019229
For generators settled up with low temperature

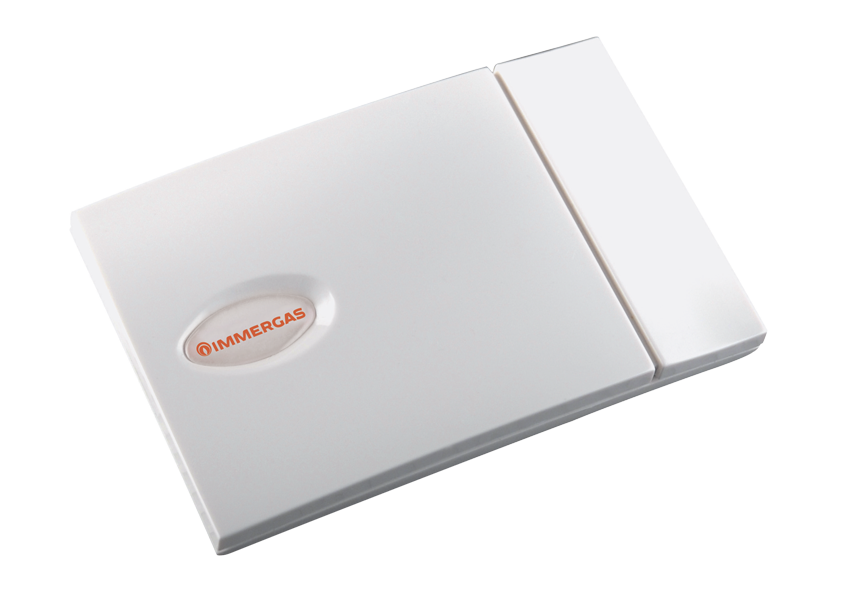

Mod-bus temperature and humidity sensor Cod.3.030992
To be used with radiant systems that also work in cooling mode
Relay board kit Cod.3.015350
Allows interface between zone valves and CAR V2 or SUPER CAR, to send an alarm signal, to manage external pump etc.
To be installed inside internal unit both in MAGIS COMBO V2 and MAGIS PRO V2

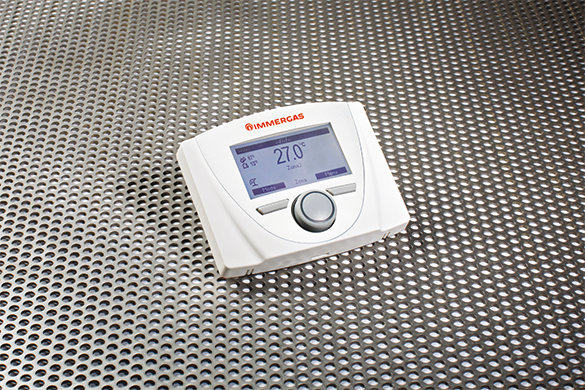

Remote Control Panel Cod.3.030863
Modulating chronotermostat, remote control with temperature/humidity sensor
Room hygrostat Cod.3.023302
To be used with radiant systems that also work in cooling mode.
Storage tank NTC probe Cod.3.019375
Allows to check the DHW temperature of a Storage Tank Unit or puffer
Provided as per standard on all Storage Tank Units in the catalogue.
System controller Cod.3.021522
Class of device VI* or VIII
Contribution to the environmental heating seasonal energy efficiency 4%* or 5%
* as standard
System delivery probe kit Cod.3.030913
Zone control unit V2 kit Cod.3.030912
Control unit for external circulators/zone valves to manage 3 zones (2 mixed and 1 direct).
2 zones kit (1 mixed and 1 direct) Cod.3.031695
For MAGIS PRO 12-14-16 V2, MAGIS COMBO/PLUS 12-14-16 V2 and MAGIS HERCULES MINI HYDRO 12
3 kW integration electric resistance kit for MAGIS PRO V2 Cod.3.030991
For heat pump only plants with MAGIS PRO V2, 3 kW (to be installed inside of the hydronic unit).
Electric power supply 230V-50Hz single phase + earthing
3-way valve kit Cod.3.020632
Additional 2 kW electric resistance kit for OMNISTOR, INOXSTOR V2 and UB 550/750 Cod.3.020861
Power supply 230 or 400 Vac.
Additional 5 kW electric resistance kit for UB 1000/1500 and UB 750 Cod.3.020862
Power supply 230 or 400 Vac.
Anti freeze protection kit -15 °C Cod.3.017324
Anti freeze protection kit -15 °C
For TT versions, VICTRIX SUPERIOR/PLUS, VICTRIX ZEUS, VICTRIX EXA, TERA VIP, VICTRIX TERA/PLUS, OMNIA, MAGIS PRO V2 and MAGIS COMBO V2.
Connection kit for R410A circuit Cod.3.026089
To connect refrigerant gas circuit where internal unit of MAGIS COMBO/PLUS 12-14-16 V2 e MAGIS PRO 12-14-16 V2 is installed to the wall
Dehumidifier back frame kit Cod.3.022146
Dehumidifier front grille kit Cod.3.022147
Dehumidifier kit Cod.3.021529
Only for recessed installation with codes 3.022146 and 3.022147
Double electronic anode kit Cod.3.025003
For OMNISTOR, INOXSTOR V2, MAGIS HERCULES PRO, MAGIS HERCULES PRO MINI and MAGIS HERCULES MINI HYDRO.
External cover kit with acoustical insulation for ZENITAIR-MONO Cod.3.030636
Anti-insect net and anti-wind in pre-painted steel, alternative to the one available with ZENITAIR-MONO.
HYDRO 3 V2 Cod.3.033625
Wall-hung hydronic fancoil with LCD remote control and 3-way valve with micro switch on-off, as standard
HYDRO 4 V2 Cod.3.033626
Wall-hung hydronic fancoil with LCD remote control and 3-way valve with micro switch on-off, as standard
HYDRO FS 200 Cod.3.028500
Floor standing hydronic fancoil
HYDRO FS 400 Cod.3.028501
Floor standing hydronic fancoil
HYDRO FS 600 Cod.3.028502
Floor standing hydronic fancoil
HYDRO FS 800 Cod.3.028503
Floor standing hydronic fancoil
HYDRO FS 1000 Cod.3.028505
Floor standing hydronic fancoil
OMNISTOR 300 Cod.3.027910
Ideal for connection to heat pumps.
The range of new OMNISTOR stainless steel storage
tanks, is ideal to contain domestic hot water with an
inspection flange at the lower part.
The storage tanks are equipped with:
• 1 stainless steel coils water/water heat exchanger
with oversized coil
• 2 probe-supports and NTC probe for Immergas heat
pump connection
• Thermometer
• Double magnesium anode
• Suitable flexible insulation which can be
disassembled (6 cm thick on OMNISTOR 300 and 8
cm thick on OMNISTOR 500)
• Pre-arranged to fix pump station to the body of the
storage tank with option kit (maximum 4 solar flat
plate-collectors)
• Pre-arranged to double electronic anode (option)
code 3.025003
The range of new OMNISTOR stainless steel storage
tanks, is ideal to contain domestic hot water with an
inspection flange at the lower part.
The storage tanks are equipped with:
• 1 stainless steel coils water/water heat exchanger
with oversized coil
• 2 probe-supports and NTC probe for Immergas heat
pump connection
• Thermometer
• Double magnesium anode
• Suitable flexible insulation which can be
disassembled (6 cm thick on OMNISTOR 300 and 8
cm thick on OMNISTOR 500)
• Pre-arranged to fix pump station to the body of the
storage tank with option kit (maximum 4 solar flat
plate-collectors)
• Pre-arranged to double electronic anode (option)
code 3.025003
OMNISTOR 500 Cod.3.027911
Ideal for connection to heat pumps.
The range of new OMNISTOR stainless steel storage
tanks, is ideal to contain domestic hot water with an
inspection flange at the lower part.
The storage tanks are equipped with:
• 1 stainless steel coils water/water heat exchanger
with oversized coil
• 2 probe-supports and NTC probe for Immergas heat
pump connection
• Thermometer
• Double magnesium anode
• Suitable flexible insulation which can be
disassembled (6 cm thick on OMNISTOR 300 and 8
cm thick on OMNISTOR 500)
• Pre-arranged to fix pump station to the body of the
storage tank with option kit (maximum 4 solar flat
plate-collectors)
• Pre-arranged to double electronic anode (option)
code 3.025003
The range of new OMNISTOR stainless steel storage
tanks, is ideal to contain domestic hot water with an
inspection flange at the lower part.
The storage tanks are equipped with:
• 1 stainless steel coils water/water heat exchanger
with oversized coil
• 2 probe-supports and NTC probe for Immergas heat
pump connection
• Thermometer
• Double magnesium anode
• Suitable flexible insulation which can be
disassembled (6 cm thick on OMNISTOR 300 and 8
cm thick on OMNISTOR 500)
• Pre-arranged to fix pump station to the body of the
storage tank with option kit (maximum 4 solar flat
plate-collectors)
• Pre-arranged to double electronic anode (option)
code 3.025003
Vertical inertial storage tank 75 litre Cod.3.027288
Wall-hung (with bracket option kit) or floor-standing installation.
Wall mounting brackets for external unit Cod.3.034758
For outdoor unit of MAGIS COMBO V2, MAGIS COMBO PLUS V2, TRIO PACK, TRIO HYDRO, MAGIS HERCULES PRO, MAGIS PRO V2, MAGIS HERCULES PRO MINI, MAGIS HERCULES MINI HYDRO, THOR, GOTHA and MULTI 18-27.
ZENITAIR MONO Cod.3.030601
Decentralised mechanical ventilation unit, easy to install, with alternate flow and heat recovery core.
Multifunction remote controller, with LCD display to visualise the status of the unit supplied as standard.
